CNC Horizontal Milling Center for Construction Works Spindle Motor Power kW 15/18.5
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $78,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 4860x3600x3460 | Weight (T): | 11 T |
| Table Size (mm): | 630x630 | CNC Control System: | GSK, FANUC, MITSUBISHI, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 800 | Table Travel (Z) (mm): | 800 |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 800 Kg | Feed Speed(mm/min): | 0 - 2400 Mm/min |
| Min. Time Of Tool Change(s): | 0.6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | Customized | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | 3-axis Horizontal Milling Machining Center |
| Keywords: | Cnc Milling Machine For Metal | Product Type: | Cnc 3 Axis Machine |
| Machine Type: | Metal Lathe And Milling Machine | Table Size: | 630x630 |
| Number Of Axis: | 3 | X-axis Travel: | 800 |
| Color: | Custom-made | Y-axis Travel: | 800 |
| Brand: | TIMEWAY | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Pakistan, India, Russia, Spain, Thailand, South Korea, Chile, UAE, Ukraine | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 24 | Port: | China Port |
Product Description
Products Description

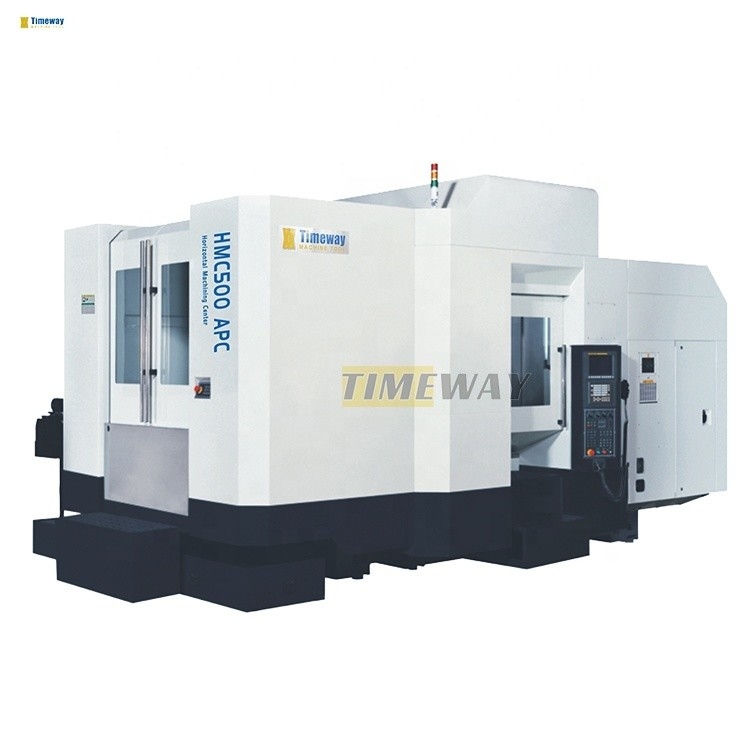

CNC Horizontal Machining Center
Technical Parameter：
Specification | Unit | HMC500 APC | HMC630 APC |
Max. swing of workpiece | mm | 700 | 820 |
Table rotation speed | rpm | 16.6 | 10 |
Pallet exchange gear ratio | - | 200 | 240 |
Pallet exchange time | s | 24 | 24 |
Distance spindle center to table | mm | 50-850 | 0-750 |
Distance spindle nose to table center | mm | 125-925 | 130-1030 |
· SIEMENS 808D control · Manual pulse generator (MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · NC rotary table · Heat exchanger · Tool & tool box · Operator manual(English) | · ZF or BF reducer · Circular coolant nozzle · Coolant through spindle (CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. tool length measurement system · Auto. workpiece measurement system · Continuous indexing station worktable · High precision grating ruler (opt.: X,Y,Z,B axis) · NC rotary worktable (B axis) · Chip conveyor (opt.: sprial type/chain type) |
Positive Comments From Customers
Company Introduction

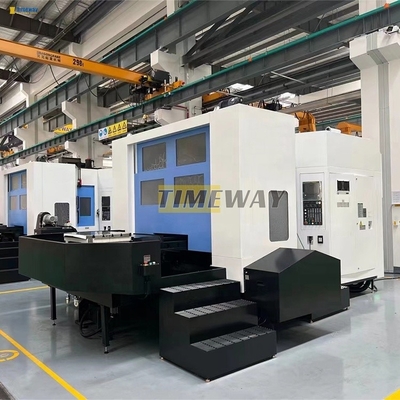

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
