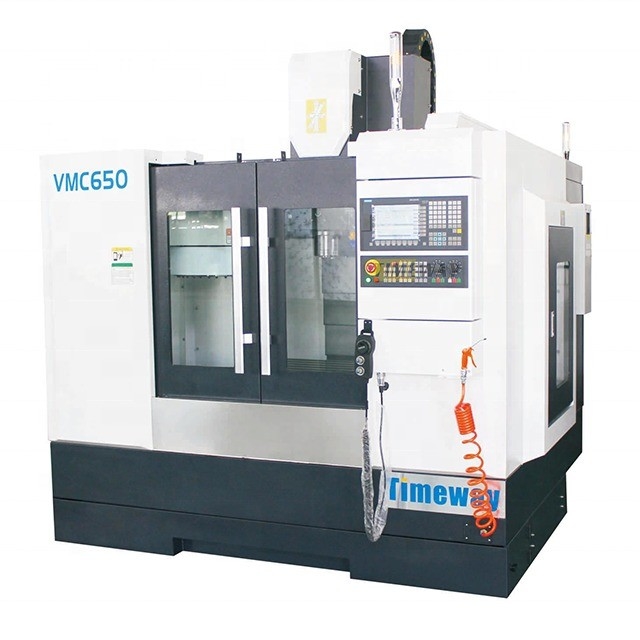

High Precision VMC650 Vertical Machining Center with 650mm Longitudinal Travel Online
Product Details:
| Place of Origin: | SHN |
| Brand Name: | timeway |
| Model Number: | VMC650 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 0 - 15 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | BT40 |
| Table Travel (X) (mm): | 650 Mm | Table Travel (Y) (mm): | 400 Mm |
| Table Travel (Z) (mm): | 500 Mm | Positioning Accuracy (mm): | 0.01 |
| Repeatability (X/Y/Z) (mm): | 0.005 | Voltage: | 220V 380V 50 HZ |
| Dimension(L*W*H): | 400x800 | CNC Control System: | FANUC SIEMENS GSK KND SYNTEC |
| Key Selling Points: | High-accuracy | Weight (KG): | 3500 |
| Spindle Motor Power(kW): | 5.5/7.5 | Warranty: | 1 Year |
| Max. Table Load(kg): | 50 Kg | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 400x800 Mm |
| T-slot (No./width/pitch): | 3/18/130 | Loading Capacity: | 500 Kg |
| Longitudinal Travel (X): | 650 Mm | Cross Travel (Y): | 400 Mm |
| Vertical Travel (Z): | 500 Mm | Distance From Spindle Nose To Table: | 120-600 Mm |
| Spindle Speed: | 8000 Rpm | Main Motor Power: | 5.5 Kw |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | France, Germany, Morocco, Chile, Algeria | Core Components: | Bearing, Motor, PLC, Pressure Vessel, Engine |
| Table Travel (mm): | 800x400 | Year: | NEW |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | VMC650 | VMC850 | VMC1060 |
Worktable size (WxL) | mm | 420x800 | 500x1000 | 1200x600 |
T-slot (No./width/pitch) | mm | 5/18/80 | 3/18/150 | 5/18/110 |
Loading capacity | kg | 500 | 600 | 800 |
Longitudinal travel (X) | mm | 700 | 800 | 1000 |
Cross travel (Y) | mm | 450 | 500 | 600 |
Vertical travel (Z) | mm | 500 | 500 | 600 |
Distance from spindle nose to table | mm | 100-600 | 150-650 | 120-720 |
Distance from spindle center to column | mm | 470 | 550 | 655 |
Spindle taper | - | BT40 | BT40 | BT-40 |
Spindle speed | rpm | 8000 | 8000 | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 | 15/15/15 | 15/15/15 |
X/Y/Z-axis feed motor torque | N.m | 10/10/10 | 15/15/15 | β22/β22/β22 |
X/Y/Z-axis positioning accuracy | mm | 0.01 | 0.01 | ±0.01 |
X/Y/Z-axis repositioning accuracy | mm | 0.008 | 0.008 | ±0.01 |
Main motor power | kw | 5.5/7.5 | 7.5/11 | 11/15 |
Air pressure source | kg/cm2 | 8 | 8 | 6/8 |
Power capacity | Kva | 12 | 15 | 25 |
Tool magazine capacity | T | 16 (Crousel) | 24 (Disc) | 24 (Disc) |
Guideway type | - | Sliding | Sliding | Sliding |
Machine weight | kg | 3500 | 5000 | 6300 |
Machine dimensions (LxWxH) | mm | 2350x2100x2300 | 2800x2300x2400 | 3200x2560x2960 |
1. Resin sand casting; 2. X, Y, Z rails are quenching - plastic sliding guide rail pair; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle, optional for direct driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC, carousel type and disc type are available as option; 7. Imported bearings for leadscrews; 8. Imported coupling; 9. Headstock balancing system have heavy casting or nitrogen balance system as option; 10. Full enclosure; 11. Rigid tapping; 12. Spindle center air blast; 13. Work lamp; 14. Pilot lamp; 15. USB and LAN interface; 16. Manual pulse generator (MPG); 17. Centralized automatic lubrication system. 18. Cooling system. 19. Heat exchanger for electrical cabinet ; 20. Leveling blocks & bolts; 21. Toolbox and tools; 22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | 1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement systems; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer. |
Taiwan Carousel ATC

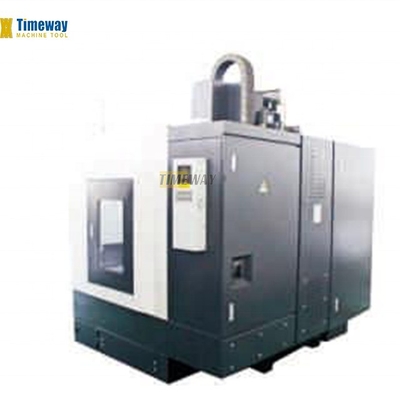

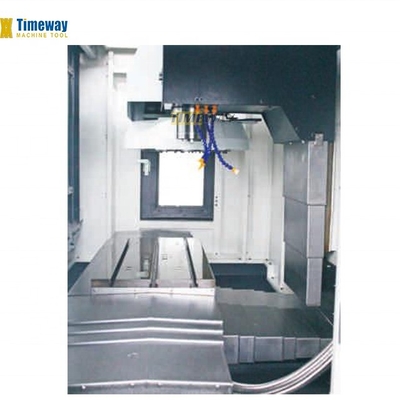

Full closed protection

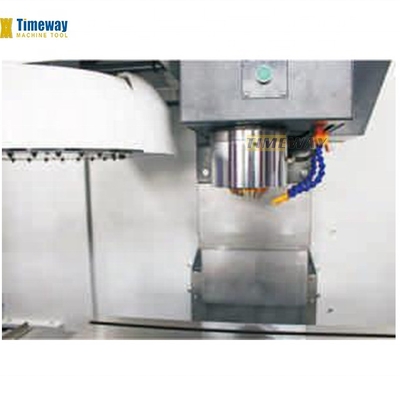

Taiwan Precision spindle

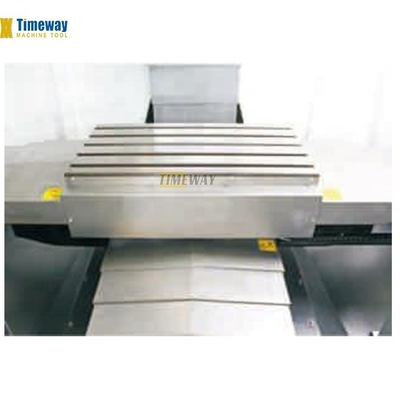

Cross-type Table
CNC System.

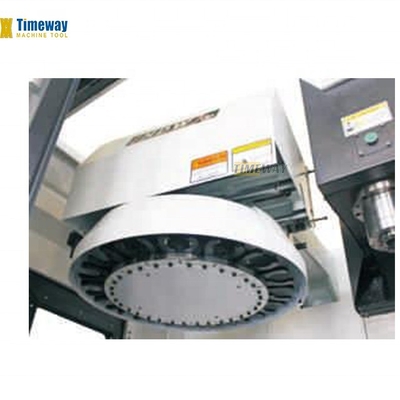

Disc-type Tool Magazine.
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
