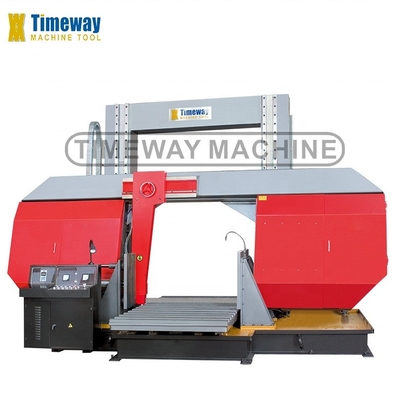

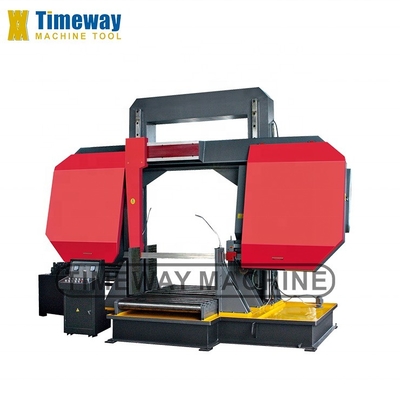

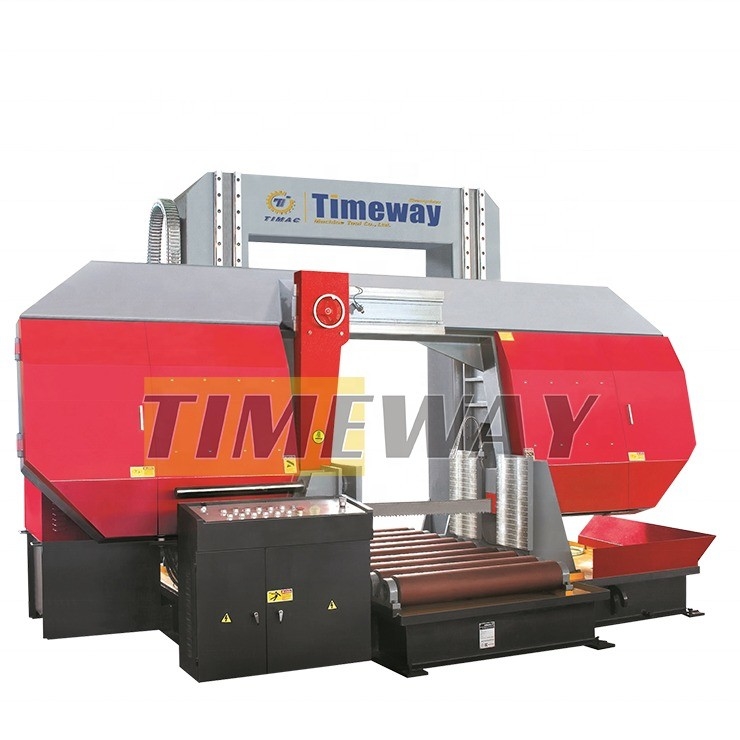

Voltage As Your Requirement accuracy Semi-automatic Metal Band Sawing Machine GBS-800
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigeted) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Band Saw Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Cutting Capacity (mm): | 800mm (800WX800H) |
| Blade Speed (m/min): | 18/30/60m/min | Saw Blade Tension Method: | Hydraulic |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Showroom Location: | Turkey, Germany, Viet Nam, India, Chile, Colombia | Warranty: | 1 Year |
| Weight (KG): | 3000 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Key Selling Points: | Multifunctional | Motor Power (kw): | 7.5 |
| Hydraulic Motor Power (kW): | 7.5 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Name: | Big Sized Semi-automatic Horizontal Metal Band Sawing Machine | Color: | As Your Requirement |
| Voltage: | As Your Requirement | Saw Blade Hydraulic Tension: | Customized |
| Cutting Capacity: | 800mm (800WX800H) | Blade Speed: | 18/30/60m/min |
| Blade Size: | 67x1.6x8860mm | Motor Main: | 7.5kw |
| Motor Hydraulic: | 2.2kw | Port: | China Port (As Your Requirement) |
Product Description
Products Description
Features:
This series Double Column Band Saws is designed by our company, which is mainly used for cutting various ferrous metal and non-ferrous metal.the structure of machine is reasonable,performance stable and reliable, high precision. They are ideal equipments to process lots of small or medium workpiece.
This series Double Column Band Saws is designed by our company, which is mainly used for cutting various ferrous metal and non-ferrous metal.the structure of machine is reasonable,performance stable and reliable, high precision. They are ideal equipments to process lots of small or medium workpiece.
Model | Unit | GBS-800 | GBS-80130 |
Cutting capacity | mm | 800 (800WX800H) | 800 (1300WX800H) |
Blade speed | m/min | 18/30/60 | 20-65 Inverter |
Blade size | mm | 67x1.6x8860 | 67x1.6x9860 |
Motor main | kw | 7.5 (4P) | 11 (4P) |
Motor hydraulic | kw | 2.2 | 3.75 |
Coolant pump | kw | 0.075 | 0.075 |
Workpiece clamping | Hydraulic vice | Hydraulic vice | |
Blade tensioning | Hydraulic | Hydraulic | |
Main drive | Gear drive | Gear drive | |
Table height | mm | 570 | 570 |
Size outward (LxWxH) | mm | 4130x2150x2500 | 4730x2150x2500 |
Standard Accessories:
Blade cleaning brush, Working light, Saw frame height selector gauge, Hydraulic blade tension, One piece of
bi-metal saw blade, One set of tools with tool box, Power roller table 2M long, Laser projector, Inverter, Hydraulic shuttle table
feeding (GBS-80130)
bi-metal saw blade, One set of tools with tool box, Power roller table 2M long, Laser projector, Inverter, Hydraulic shuttle table
feeding (GBS-80130)
Optional Accessories:
Variable vice pressure, Automatic chip conveyor, Power roller table 2M long, Hydraulic
shuttle table feeding
(GBS-800)
shuttle table feeding
(GBS-800)
