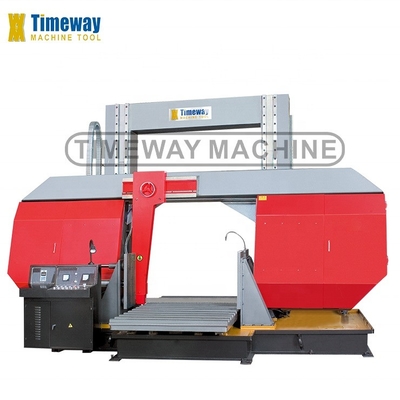

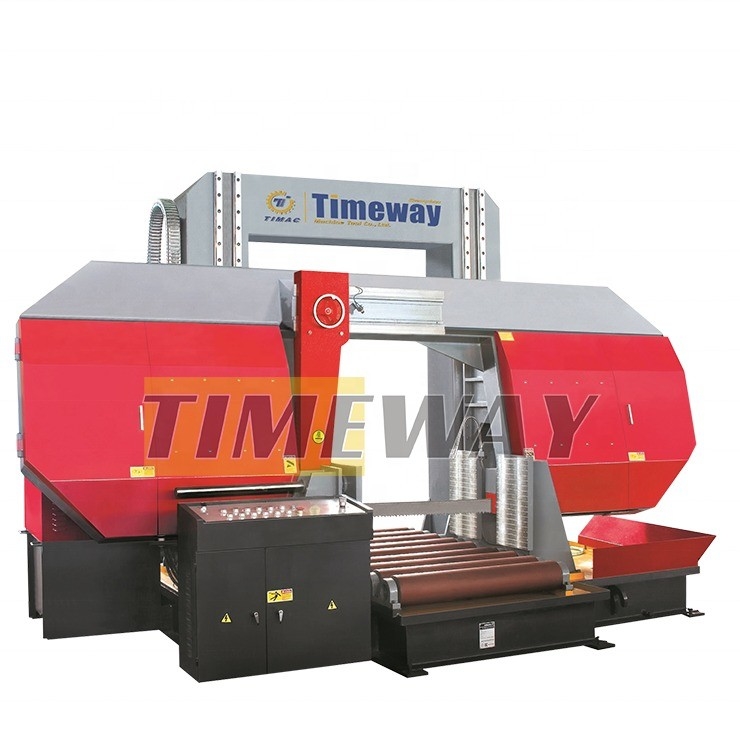

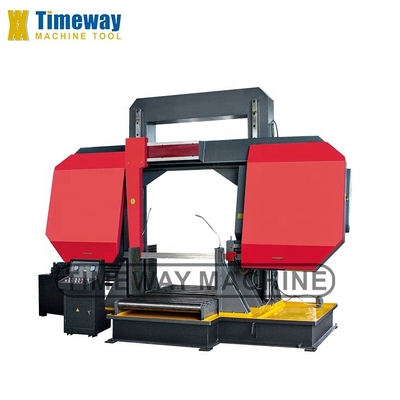

Large Semi Automatic Horizontal Metal Band Sawing Machine GBS-1000 for Manufacturing Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $99,999.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigeted) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Machine Type: | Band Saw Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Cutting Capacity (mm): | 18/30/60m/min |
| Blade Speed (m/min): | 18/30/60m/min | Saw Blade Tension Method: | Hydraulic |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC |
| Showroom Location: | Canada, United Kingdom, Germany, Philippines, Morocco | Warranty: | 1 Year |
| Weight (KG): | 3000 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Key Selling Points: | Multifunctional | Motor Power (kw): | 7.5 |
| Hydraulic Motor Power (kW): | 7.5 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Name: | Large Semi Automatic Horizontal Metal Band Sawing Machine | Color: | As Your Requirement |
| Voltage: | As Your Requirement | Saw Blade Hydraulic Tension: | Customized |
| Warranty Period: | One Year After Delivery | Main Drive: | Gear Drive |
| Blade Tensioning: | Hydraulic | Port: | China Port (As Your Requirement) |
Product Description
Products Description
Features:
1)Hydraulic control cutting feed.2) High precision linear guider, high precision cutting.
3) Gantry structure, nice rigidity.
4) Chip conveyor optional.
Model | Unit | GBS-1000 | GBS-1300 | GBS-1600 |
Cutting capacity | mm | 1000 (1000WX1000H) | 1300 (1300WX1300H) | 1600 (1600WX1600H) |
Blade speed | m/min | 15-55 Inverter | 15-55 Inverter | 15-55 Inverter |
Blade size | mm | 67x1.6x9820 | 67x1.6x11180 | 100x2.0x16150 |
Motor main | kw | 11(4P) | 15 (4P) | 18.5 (4P) |
Motor hydraulic | kw | 3.75 | 3.75 | 3.75 |
Coolant pump | kw | 0.12 | 0.12 | 0.12 |
Workpiece clamping | Hydraulic vice | Hydraulic vice | Hydraulic vice | |
Blade tensioning | Hydraulic | Hydraulic | Hydraulic | |
Main drive | Gear drive | Gear drive | Gear drive | |
Table height | mm | 570 | 570 | 570 |
Size outward (LxWxH) | mm | 4560x2170x3040 | 5050x2250x3380 | 6800x2300x4900 |
