69 m/min Blade Speed Double Column Hydraulic Band Sawing Machine for Metal Cutting
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Wooden box |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | As Your Requirement |
| Structure Type: | Horizontal Double Column Structure | Cutting Capacity: | Round Bar:500mm, Rectangle:500*500mm |
| Blade Size: | 5800*41*1.3 | Blade Speed: | 27, 45, 69 M/min |
| Clamping Type: | Hydraulic | Cutting Precision: | Less Than 0.5mm |
| Machine Type: | Simple And Economical Type | Operation Type: | Manual And Hydraulic |
| Dimension(L*W*H): | 2800*1300*2000mm | Weight: | 1500kg |
| Voltage: | 380V 50HZ | Rated Power: | 6.375kw |
| Port: | China Port | ||
Product Description

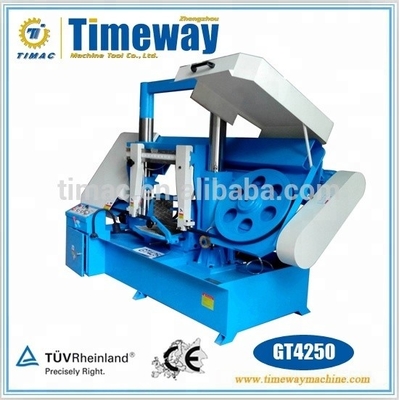

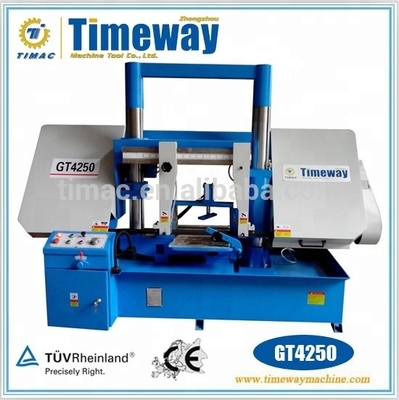

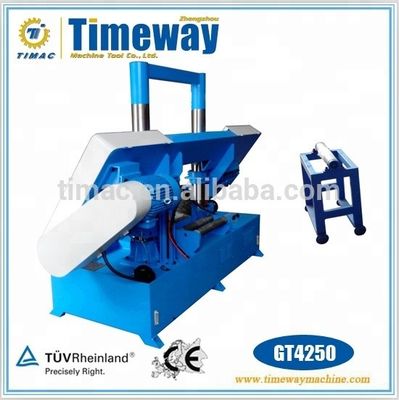

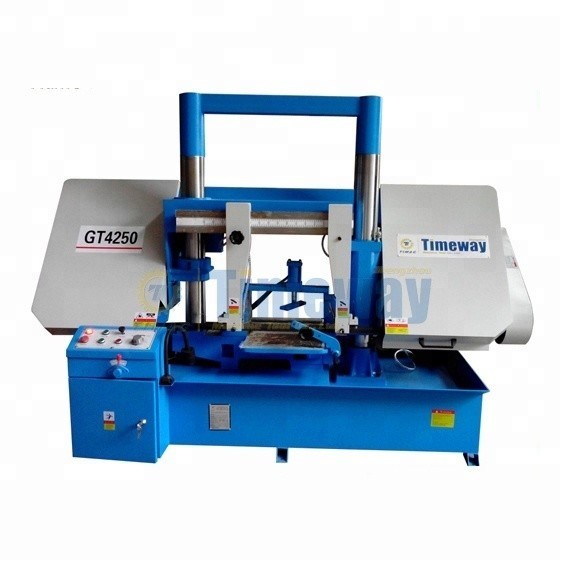

Double Column Horizontal Hydraulic Band Sawing Machine for Cutting Metal
GT4220 GT4228 GT4235 GT4240 GT4250
Features
1. Double column horizontal band sawing machine mainly used for all kinds of large-scale material sawing with high efficiency and high precision save material saving energy etc.
2. Double column structure vertical lifting high stability.
3. The hydraulic pressure controls the speed of saw stepless speed regulation.
4. The clamping of workpieces adopts hydraulic control, easy and smiple. Can make 3 hydraulic tension saw blades per request.
Technical Parameters
| Specifications | Units | GT4220 | GT4228 | GT4235 | GT4240 | GT4250 |
| Cutting capacity | mm | Φ200/200*200 | Φ280/280*280 | Φ350/350*350 | Φ400/400*400 | Φ500/500*500 |
| Blade size | mm | 2650*27*0.9 | 3505*34*1.1 | 4115*34*1.1 | 5000*41*1.3 | 5800*41*1.3 |
| Blade speed | m/min | 27/45/69 | 27/45/69 | 27/45/69 | 27/45/69 | 27/45/69 |
| Clamping type | Manual | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Main motor power | kw | 1.5 | 2.2 | 3 | 4 | 5.5 |
| Hydraulic motor power | kw | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |
| Coolant pump power | kw | 0.04 | 0.04 | 0.04 | 0.125 | 0.125 |
| Overall dimension | mm | 1300*800*1100 | 1860*1000*1400 | 2000*1100*1500 | 2500*1300*1600 | 2800*1300*2000 |
| | |
| | |
| | |
