12000KG 5-Axis Linkage Vertical Machining Center with ±0.008mm Positioning Accuracy
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC, TIMEWAY |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $500,000.00/sets >=1 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | 4 |
|---|---|---|---|
| Type: | VERTICAL | Dimension(L*W*H): | 5000x3000x3700mm |
| Weight (T): | 12 T | Table Size (mm): | Other |
| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 5 |
| Table Travel (X) (mm): | 650 | Table Travel (Y) (mm): | 700 |
| Table Travel (Z) (mm): | 460 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Range Of Spindle Speed(r.p.m): | 20 - 18000 R.p.m |
| Spindle Motor Power(kW): | 35 | Max. Table Load(kg): | 400 Kg |
| Feed Speed(mm/min): | 30 - 20000 Mm/min | Min. Time Of Tool Change(s): | 6 |
| Tool Magazine Capacity: | 32 | Key Selling Points: | Automatic |
| Warranty: | 12 Months | Voltage: | 220V/380V |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | 5 Axis Linkage VMC: | Five Axes Vertical Machine Centre |
| Weight: | 12000KG | Power: | 35KW |
| Worktable Size: | 500mm | X/Y/Z Axis Travel: | 650/700/460mm |
| Number Of Axis: | 5 | Product Name: | 5-axis Vertical Cnc Machining Center |
| Machine Type: | Vertical CNC Milling Machine | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining, Advertising Company |
| Showroom Location: | France, Germany, Chile, UAE, Colombia, Bangladesh, Japan, Australia | Core Components: | Engine |
| Port: | China Port | ||
Product Description
Product Description

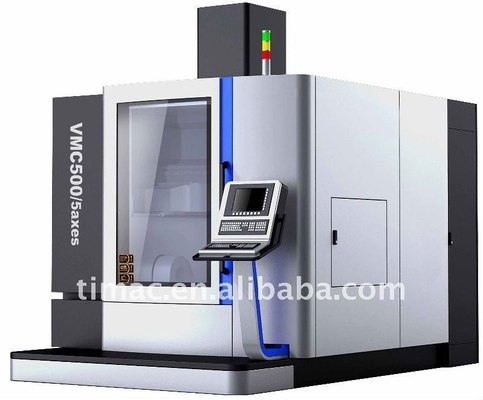

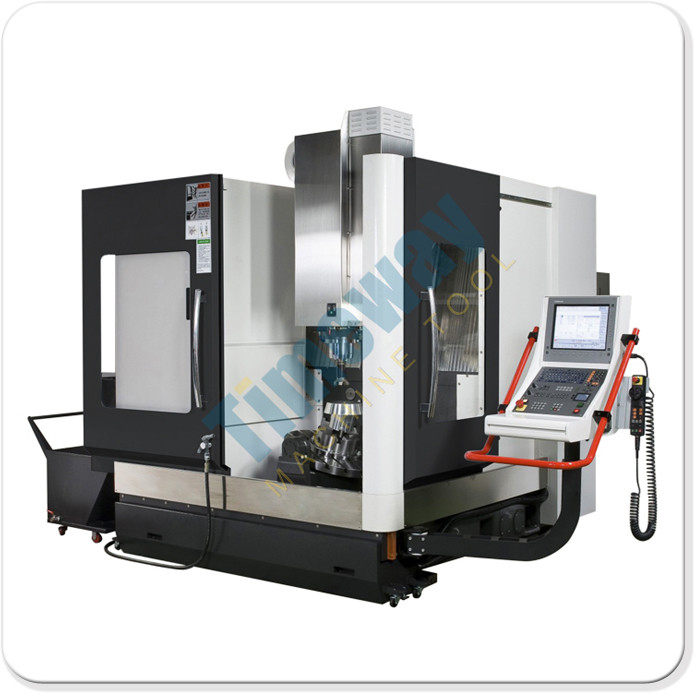

5 axis vertical machining center
Specification
Specification | Unit | VMC500/5axes | ||
Travel | X axis travel | mm | 650 | |
Y axis travel | mm | 700 | ||
Z axis travel | mm | 460 | ||
X axis swing angle | degree | +110~-110 | ||
C axis swing angle | degree | 360 | ||
Distance from spindle to table | mm | 200~660 | ||
Worktable | Worktable size | mm | 500 | |
Max. load of worktable | kg | 400 | ||
Motor | Spindle motor | kw | 35 | |
X/Y1/Y2/Z motor | kw | 5.37x4 | ||
A axis Torque motor | kw | 27.1x2 | ||
C axis torque motor | kw | 25.4 | ||
Coolant pump motor | kw | 0.75 | ||
Hydraulic pressure station motor | kw | 5.5 | ||
Water-coolant pump motor | kw | 4.5 | ||
Grease lubrication pump motor | kw | 0.025 | ||
Thin oil lubrication pump motor | kw | 0.02 | ||
Rotating chip cleaner motor | kw | 0.2 | ||
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

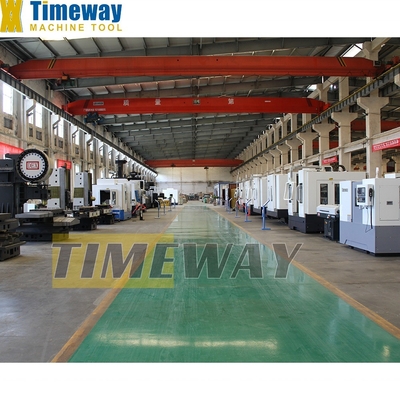

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
