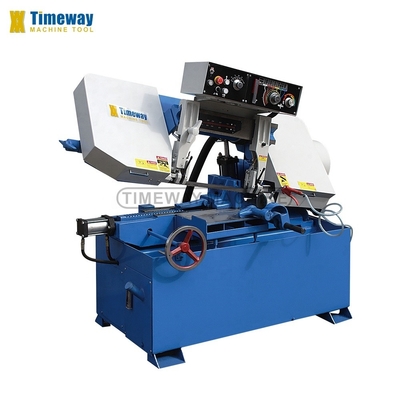

27/40/54/68/80m/min Blade Speed 2.2kw Horizontal Metal Band Sawer for Precise Cutting
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,900.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New, New | Machine Type: | Band Saw Machine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Cutting Capacity (mm): | 280 350Wx250H Mm |
| Blade Speed (m/min): | 27/40/54/68/80 | Saw Blade Tension Method: | Manual |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Gear, Bearing, Engine |
| Showroom Location: | Canada, United States, Italy, Germany, Spain, South Africa | Warranty: | 1 Year |
| Weight (KG): | 900 | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction Works , Energy & Mining |
| Key Selling Points: | Automatic | Motor Power (kw): | 2.2 |
| Hydraulic Motor Power (kW): | 0.75 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| HORIZONTAL METAL BAND: | SAWING MACHINE | Power (kW): | 2.2kw |
| Blade Speed: | 27/40/54/68/80 M/min | Table Height: | 690mm |
| Main Drive: | Wormwheel Drive | Size Outward (LxWxH): | 1800x1050x1550mm |
| Workpiece Clamping: | Hydraulic Vice | Coolant Pump: | 0.06kw |
| Port: | China Port | ||
Product Description
Products Description
Features:
The blade are guided by rolling bearing and cemented carbide, with high precision cutting.
Optional cutting device for small material into a bundle.
Optional electric feeding frame.

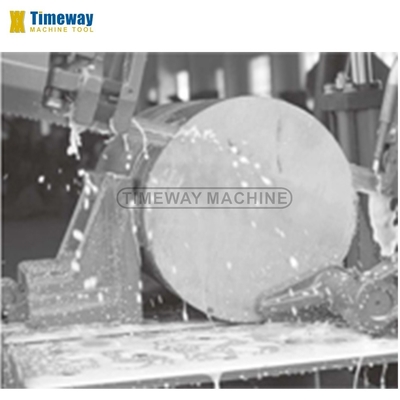

Mainly used for cutting various ferrous metal and non-ferrous metal.
The structure of the machine tool is reasonable with stable and reliable performance and high precision.
It is idea equipment for material sizing of medium/small lot.
Model | Unit | SAB-280I | SAB-280II |
Cutting capacity | mm | 280 350Wx250H | 280 300Wx220H |

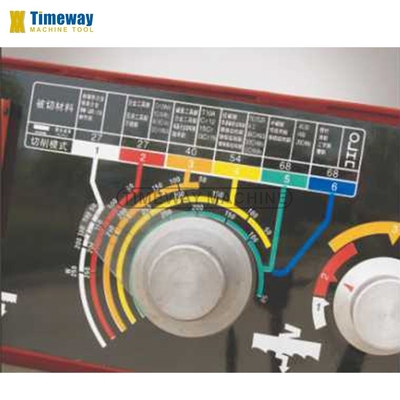

Blade speed | m/min | 27/40/54/68/80 | 25/35/45/60/80 |
Blade size | mm | 27x0.9x3505 | 27x0.9x3505 |
Motor main | kw | 2.2 (4P) | 2.2 (4P) |
Motor hydraulic | kw | 0.75 | 0.37 |
Coolant pump | kw | 0.06 | 0.06 |

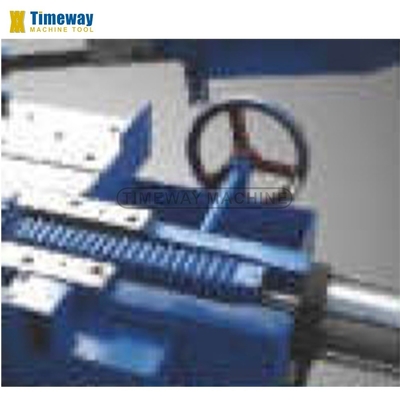

Workpiece clamping | Hydraulic vice | Hydraulic vice | |

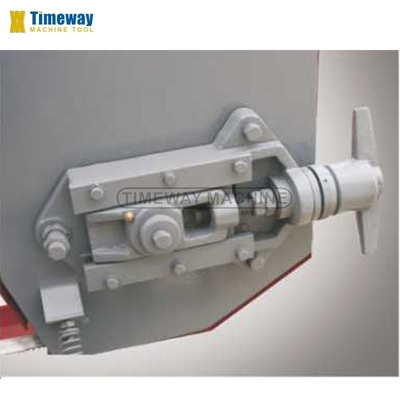

Blade tensioning | Manual | Manual | |
Main drive | Wormwheel drive | Wormwheel drive | |
Table height | mm | 690 | 620 |
Size outward (LxWxH) | mm | 1800x1050x1550 | 1770x1130x1160 |
