2800*2300*2400 VMC 850 CNC Machine Center for High Precision Metal Vertical Machining
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 2800*2300*2400 | Weight (T): | 5 T |
| Table Size (mm): | 500*1000 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 500 | Table Travel (Z) (mm): | 500, 500mm |
| Positioning Accuracy (mm): | 0.01 | Repeatability (X/Y/Z) (mm): | 0.008 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 600 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Sustainable |
| Warranty: | 1 Year | Voltage: | 380V/50H |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Vertical Machining Center | Machine Type: | VMC CNC Milling Machine |
| Application: | Metal Machining | Keywords: | Vertical Machine Center VMC |
| Product Type: | Machining Center Cnc Mill Machine | CNC Or Not: | CNC Systemn |
| Processing: | Metal Cutting Cnc Milling Machine | Table Travel (Y): | 500mm |
| Table Travel (X) (mm: | 800mm | Applicable Industries: | Building Material Shops, Manufacturing Plant |
| Showroom Location: | Egypt, Canada, Turkey, Italy, Brazil, Peru, India | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 15/15/15 | Port: | China Port |
Product Description
Summary

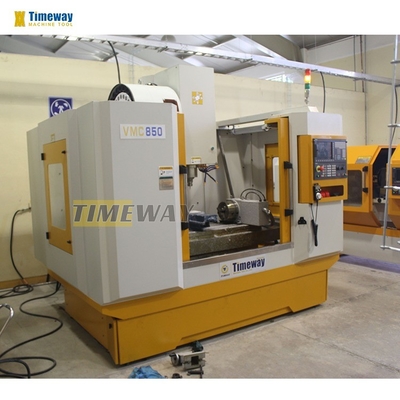

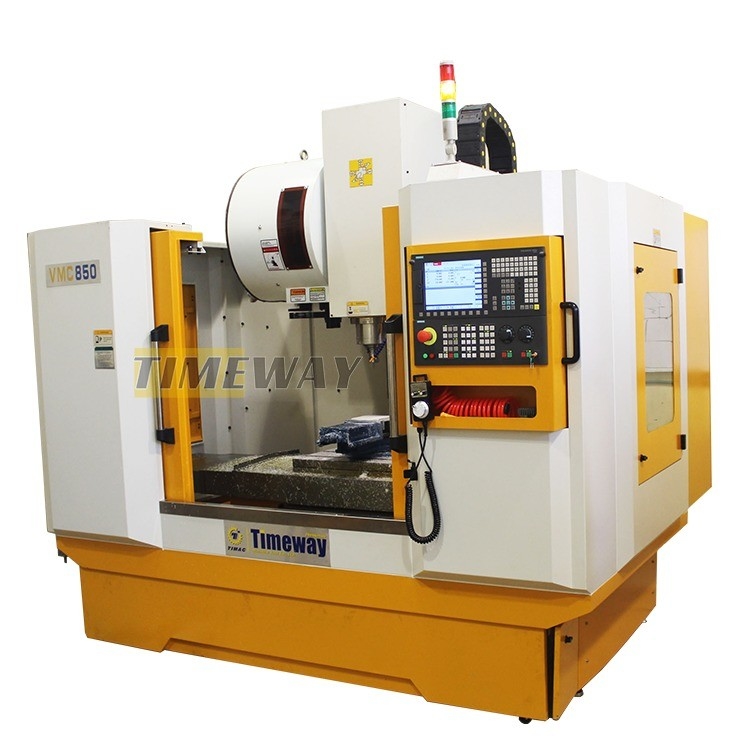

This is a vertical machining center.lt has a high-edge configuration and can work automatically.lt can provide high precision operation with Taiwan PrecisionSpindle,Taiwan Carousel ATC,Cross-type,Table,Full closed protection.
Product Description
Vertical Machining Center VMC850
Specification
Specification | Unit | VMC850 |
X-axis travel | mm | 800 |
Y-axis travel | mm | 500 |
Z-axis travel | mm | 500 |
Table size | mm | 1000×500 |
Loading capacity | kg | 600 |
Spindle taper | / | BT-40 |
Spindle speed | r/min | 8000 |
Main motor power | kw | 7.5/11 |
X/Y/Z-axis positioning accuracy | mm | ±0.01 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.008 |
ATC capacity | tools | 24 |
Tool change time (tool to tool) | sec | 1.4 |
Machine weight | kg | 4600 |
CNC system | / | FANUC/MITSUBISHI |
Packing & Delivery
Wooden cases(can be fumigated)
Company Profile
Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing,aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
