==The HMC series horizontal machining center is a CNC horizontal machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex,precise, small batch, and multi-variety parts.
==Standard equipped with B axis (NC rotary table) dividing processing requirement.

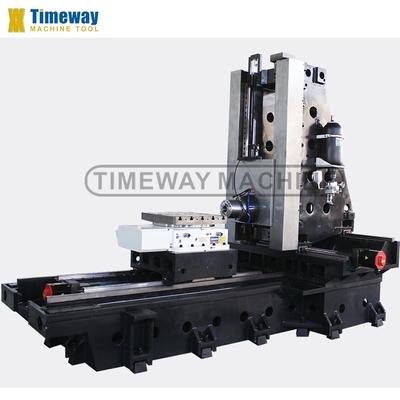

==The structure of HMC horizontal machining center can divide into three kinds: Positive T-type; Inverted T-type; Cross-type.Realize various processing requirements of the different size and different shape workpieces.
 |

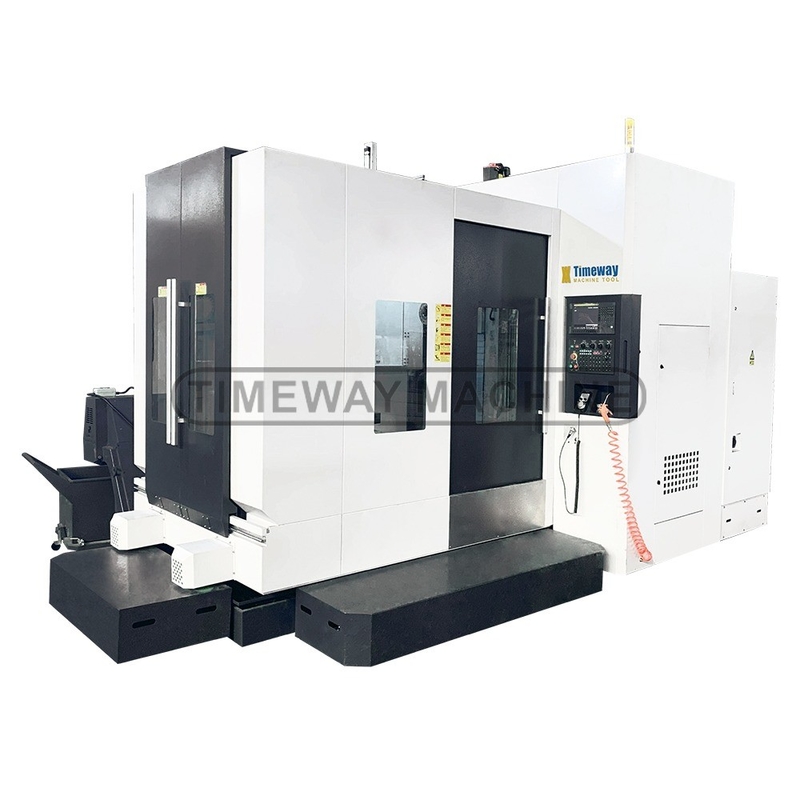

CNC Milling Machine TIMEWAY 630mm Horizontal Machining Center with FANUC Control System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway/TIMAC |
| Model Number: | HMC630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Range Of Spindle Speed(r.p.m): | 0 - 6000 |
|---|---|---|---|
| Number Of Axes: | 4 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | BT50 |
| Table Travel (X) (mm): | 1050 | Table Travel (Y) (mm): | 800 |
| Table Travel (Z) (mm): | 700 | Positioning Accuracy (mm): | 0.01 |
| Repeatability (X/Y/Z) (mm): | 0.006 | Dimension(L*W*H): | 4285x3120x3280mm |
| CNC Control System: | FANUC | Key Selling Points: | High-accuracy |
| Weight (KG): | 8800 | Spindle Motor Power(kW): | 15 |
| Warranty: | 1 Year | Max. Table Load(kg): | 800 Kg |
| Marketing Type: | Hot Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Horizontal Machining Center | CNC Or Not: | CNC Machining Center |
| Table Size: | 630*630mm | Model: | HMC630 |
| Color: | Cusomer Request | Spindle Speed: | 6000rpm |
| X/Y/Z-Axis Travel: | 1050/800/700mm | CNC Controller: | FANUC-0i MF |
| T Slot: | 6/18/100 | Machine Weight: | 8800kg |
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Advertising Company |
| Showroom Location: | Egypt, United States, Philippines, Pakistan, Thailand, Chile, Romania, Kyrgyzstan | Core Components: | Bearing, Pump, Gear, Gearbox |
| Port: | China Port | ||
Product Description
Product Description
Horizontal Machining Center
Features:
Specification
Specification | Unit | HMC630 |
Machine structure | / | Positive T-type |
X-axis trave | mm | 1050 |
Y-axis travel | mm | 800 |
Z-axis travel | mm | 700 |
Table size | mm | 630×630 |
Table number | pcs | 1 |
Table indexing | ° | 1°×360 |
T-slots (No./width/pitch) | / | 6/18/100 |
Table rotation speed | rpm | 11.1 |
Loading capacity | kg | 800 |
Locking force (35kg / cm2) | kg/m | 5000 |
Distance spindle center to table | mm | 150-750 |
Distance spindle nose to table center | mm | 150-700 |
Spindle taper | / | BT-50 |
Spindle speed | rpm | 6000 |
Main motor power | kw | 15/18.5 |
X/Y/Z-axis rapid feed speed | m//min | 30/15/30 |
X/Y/Z-axis guideway type | - | X/Z: Linear/Y: sliding |
X/Y/Z-axis positioning accuracy | mm | 0.01 |
X/Y/Z-axis repeat positioning accuracy | mm | 0.006 |
B-axis positioning accuracy | " | 10" |
ATC style | / | Disc |
ATC capacity | tools | 24 |
Tool change time (tool to tool) | sec | 7 |
Max. tool weight | kg | 8 |
Max. tool diameter | mm | Φ78/Φ125 |
Max. tool length | mm | 300 |
Power capacity | kva | 50 |
Air pressure | kg/cm2 | 8 |
Machine weight | kg | 8800 |
Overall dimension (LxWxH) | mm | 4285×3120×3280 |
Accessories
Standard accessories:
√ FANUC 0i MF CNC system

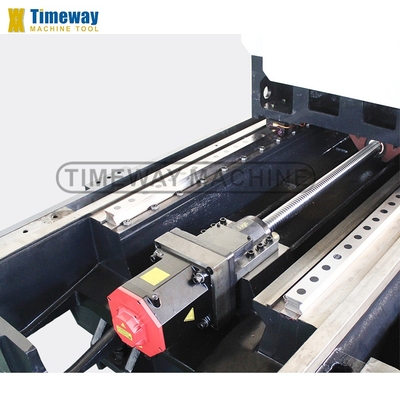

√ X/Z: Linear guide rails, Y: Sliding guide rail

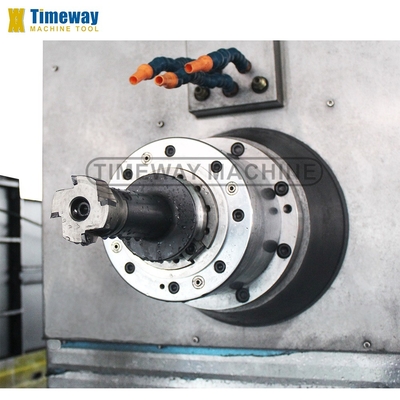

√ Taiwan BT50 spindle, 6000rpm

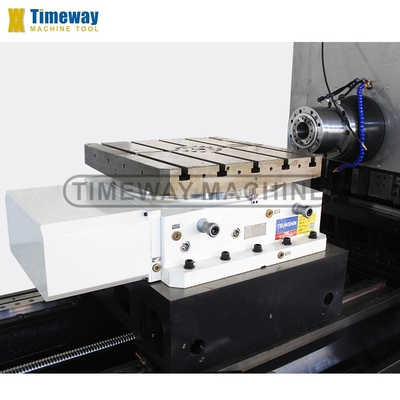

√ Taiwan NC rotary table (B-axis)

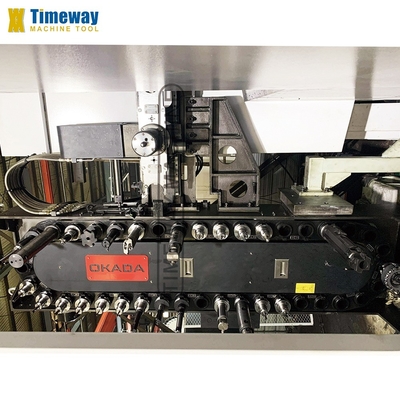

√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Taiwan BT50 spindle, 6000rpm
√ Taiwan NC rotary table (B-axis)
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories:
_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
