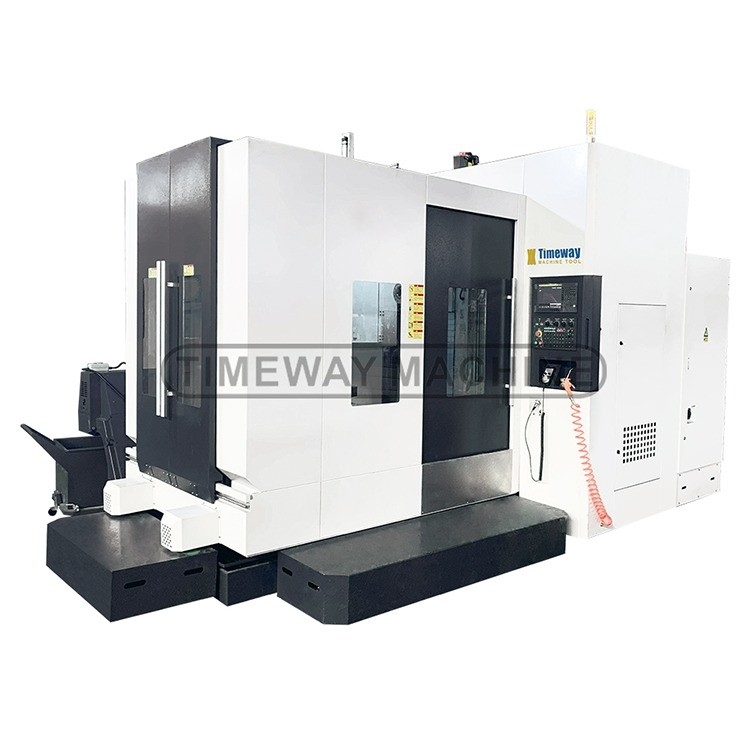

GSK Control System Metal Horizontal CNC Machine Center HMC 630 for Metal Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Weight (T): | 8.8 T | Table Size (mm): | 630*630 |
| CNC Control System: | GSK, FANUC, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 1050, 1050 | Table Travel (Y) (mm): | 800 |
| Table Travel (Z) (mm): | 700, 700 | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.006 | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
| Spindle Motor Power(kW): | 11/18.5 | Max. Table Load(kg): | 800 Kg |
| Min. Time Of Tool Change(s): | 7 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Sustainable | Warranty: | 1 Year |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Horizontal CNC Milling Machine | Product Name: | CNC Machining Center |
| Application: | Metal Machining Center | Product Type: | Cnc 3 Axis Machine |
| Keywords: | High Speed Cnc Milling Machine | CNC Or Not: | CNC Systemn |
| Processing: | Metal Horizontal Machining Center | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Italy, Brazil, Peru, India | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 30/15/30 | ||
Product Description
Summary

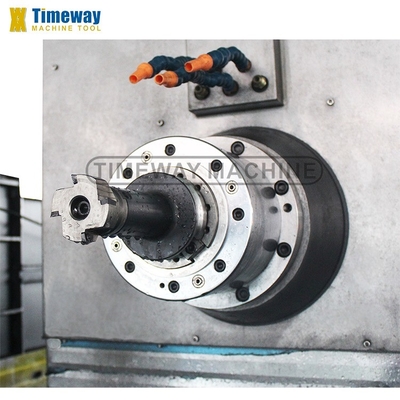

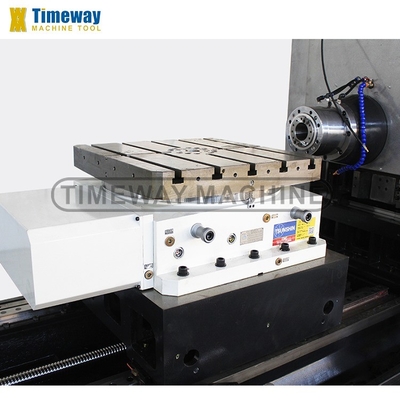

This is a horizontal machining center.lt has a high-edge configuration and can work automatically.lt can provide high precision operation with Taiwan PrecisionSpindle,Taiwan Carousel ATC,Cross-type,Table,Full closed protection.
Product Description
Specification
Specification | Unit | HMC630 |
X-axis travel | mm | 1050 |
Y-axis travel | mm | 800 |
Z-axis travel | mm | 700 |
Table size | mm | 630×630 |
Loading capacity | kg | 800 |
Weight | kg | 8800 |
Machine dimensions(L*W*H) | mm | 4285*3120*3280 |
Packing & Delivery
Wooden cases(can be fumigated)
Company Profile
Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing,aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Certifications
.We have got many certification.
Client feedback
We have got many feedback.
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
