Timeway Worktable 600x1300mm CNC Vertical Machining Center with 8000 Rpm Spindle Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC/Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $78,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 0.68 T | Table Size (mm): | 600x1300 |
| CNC Control System: | GSK, FANUC, KND, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 1000 | Table Travel (Y) (mm): | 600 |
| Table Travel (Z) (mm): | 600 | Positioning Accuracy (mm): | 0.01 |
| Repeatability (X/Y/Z) (mm): | 0.008 | Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m |
| Spindle Motor Power(kW): | 11 | Max. Table Load(kg): | 800 Kg |
| Min. Time Of Tool Change(s): | 9 | Tool Magazine Capacity: | 12 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Voltage: | 220V/380V | Marketing Type: | New Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Vertical CNC Machine Center |
| CNC Controller: | Fanuc Siemens Syntec KND GSK | Machine Type: | CNC Vertical Machine Centers |
| Model: | VMC1060 | Color: | Cusomer Request |
| Spindle Speed: | 8000 Rpm | X Axis Travel: | 1000mm |
| Worktable Size: | 600*1300mm | Y Axis Travel: | 600mm |
| Z Axis Travel: | 600mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location: | Italy, Brazil, Peru, Indonesia, India, Mexico, Russia, UAE | Core Components: | Engine |
| Port: | China Port | ||
Product Description
Product Description

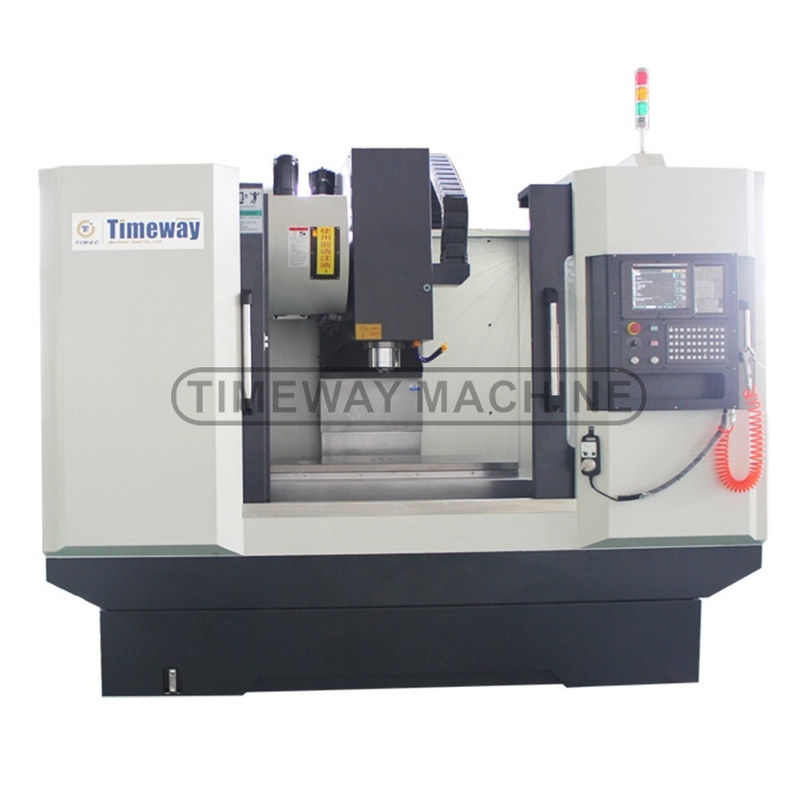

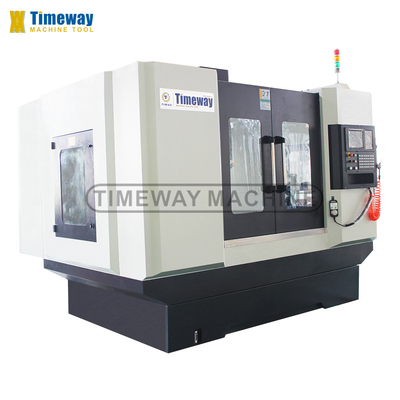

CNC Vertical Machining Center
Specification
Specifications | Unit | VMC850A | VMC1060 | VMC1270 |
Table size | mm | 500x1000 | 600x1300 | 700x1360 |
T-slot (No./width/pitch) | mm | 5/18/90 | 5/18/100 | 5/18/152.5 |
Loading capacity | kg | 600 | 800 | 1000 |
Longitudinal travel (X) | mm | 800 | 1000 | 1200 |
Cross travel (Y) | mm | 500 | 600 | 700 |
Vertical travel (Z) | mm | 550 | 600 | 600 |
Distance from spindle nose to table | mm | 105-655 | 180-780 | 150-750 |
Distance from spindle center to column | mm | 550 | 655 | 785 |
Spindle taper | - | BT40 | BT40 | BT40 |
Spindle speed | rpm | 8000 | 8000 | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 | 12/12/12 | 12/12/12 |
X/Y/Z-axis feed motor torque | N.m | 15/15/15 | 15/15/15 | 23/23/23 |
X/Y/Z-axis positioning accuracy | mm | 0.01 | 0.01 | 0.01 |
X/YZ-axis repetability accuracy | mm | 0.008 | 0.008 | 0.008 |
Main motor power | kw | 7.5/11 | 11/15 | 11/15 |
Air pressure source | kg/cm2 | 8 | 8 | 8 |
Total power | Kva | 15 | 20 | 25 |
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | 24 (Disc) |
Guideway type | - | Sliding | Sliding | Sliding (Y-axis four rails) |
Machine weight | kg | 5000 | 6800 | 9600 |
Machine dimensions (LxWxH) | mm | 2800x2300x2400 | 3200x2380x2960 | 3500x2500x3055 |
Accessories
Standard accessories:

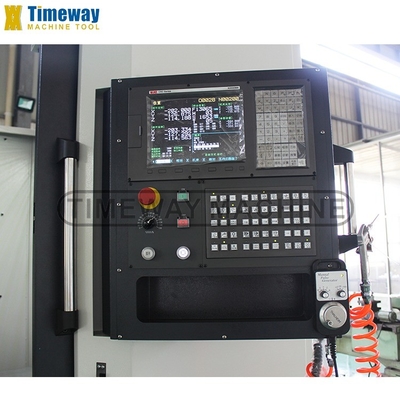

√ FANUC 0i MF CNC system
√ X/Y/Z: Sliding guide rail
√ Taiwan BT50 spindle, 6000rpm
√ Taiwan NC rotary table (B-axis)

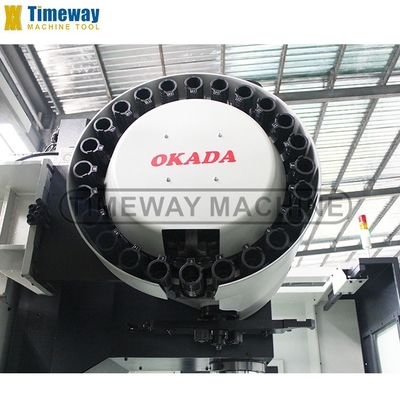

√ Taiwan disc-type ATC with 24 tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Taiwan BT50 spindle, 6000rpm
√ Taiwan NC rotary table (B-axis)
√ Taiwan disc-type ATC with 24 tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories:
_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
