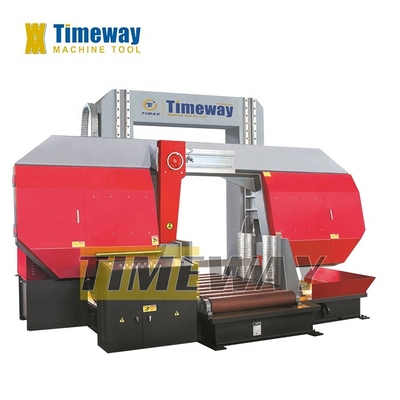

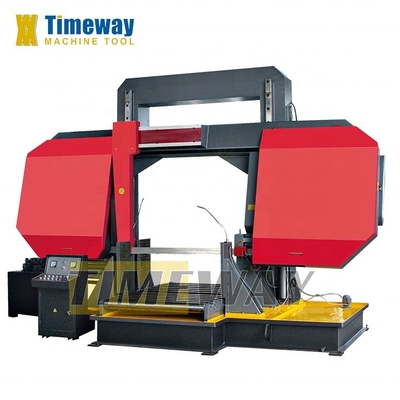

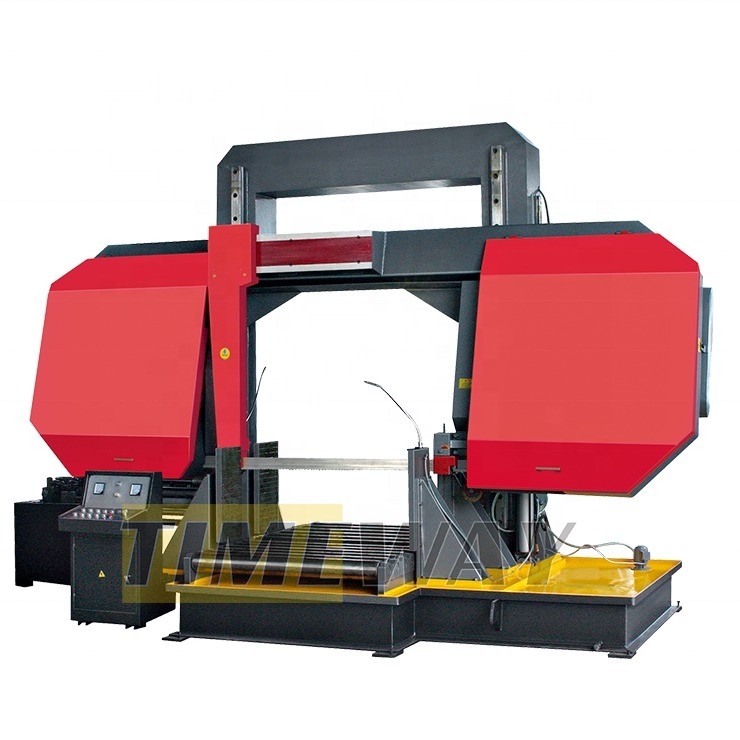

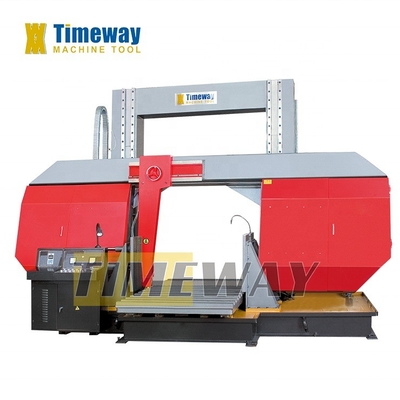

Competitive Semi-automatic Gantry Metal Band Sawing Machine with 220-380V Voltage
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigeted) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| No-load Speed(rpm): | 55 Rpm | Blade Size(mm): | 6.7x1.6x9820 |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Pump | Condition: | New |
| Voltage: | 220-380V | Dimension(L*W*H): | 4560x2170x3040 |
| Weight (KG): | 570 | Power (kW): | 3.75 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, Pakistan, Kenya, UAE, Bangladesh, Malaysia |
| Type: | Gantry Band Saw Machine | Product Name: | Band Sawing Machine |
| Blade Size: | 67x1.6x9820 | Name: | Horizontal Band Saw Machine |
| Keyword: | Band Saw Machine Metal Cutting Automatic | Blade Tensioning: | Hydraulic |
| Color: | Customer Choose | Machine Type: | Automatic Cutting Machine |
| Key Selling Points: | Competitive Price | Keywords: | Horizontal Band Saw Machine |
| Port: | China Port (As Your Requirement) | ||
Product Description
Products Description
Horizontal Band Saw Machine
Features:
1) Hydraulic control cutting feed.
2) High precision linear guider, high precision cutting.
3) Gantry structure, nice rigidity.
4) Chip conveyor optional.
1) Hydraulic control cutting feed.
2) High precision linear guider, high precision cutting.
3) Gantry structure, nice rigidity.
4) Chip conveyor optional.
Technical Parameter：
Model | Unit | GBS-1000 | GBS-1300 | GBS-1600 |
Blade speed | m/min | 15-55 Inverter | 15-55 Inverter | 15-55 Inverter |
Blade size | mm | 67x1.6x9820 | 67x1.6x11180 | 100x2.0x16150 |
Motor main | kw | 11(4P) | 15 (4P) | 18.5 (4P) |
Motor hydraulic | kw | 3.75 | 3.75 | 3.75 |
Coolant pump | kw | 0.12 | 0.12 | 0.12 |
Main drive | Gear drive | Gear drive | Gear drive | |
Table height | mm | 570 | 570 | 570 |
Blade cleaning brush, Working light, Saw frame height selector gauge, Hydraulic blade tension, One piece of bi-metal saw blade, One set of tools with tool box, Power roller table, Laser projector, Inverter | Variable vice pressure, Automatic chip conveyor, Power roller table 2M long |
