The VMC-G series CNC vertical mill is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
 |

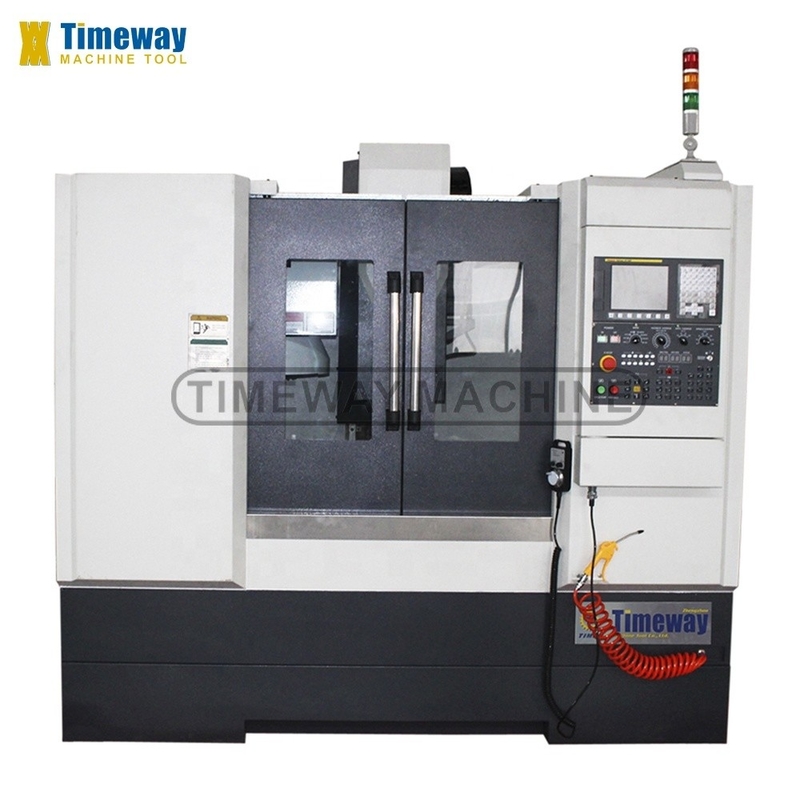

CNC Milling Machine VMC650G with Table Size 1000*420mm Timeway 3 Axis Vertical Made
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 2400x1900x2400 | Weight (T): | 3500 KG |
| Table Size (mm): | 1000*420 | CNC Control System: | FANUC |
| Table Travel (X) (mm): | 700mm | Table Travel (Y) (mm): | 450mm |
| Table Travel (Z) (mm): | 450mm | Positioning Accuracy (mm): | ±0.003 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m |
| Max. Table Load(kg): | 400 Kg | Feed Speed(mm/min): | 0 - 48000 Mm/min |
| Min. Time Of Tool Change(s): | 0.5 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Voltage: | Customized | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | Other | Cutting Torque: | 0 N.m |
| Rapid Feed Speed(mm/min): | 0 - 48000 Mm/min | Table Size: | 1000*420mm |
| Loading Capacity: | 400kg | T-slots (No./width/pitch): | 5-18-80mm |
| Distance Spindle Nose To Table Center: | 130-630mm | Distance Spindle Center To Column: | 495mm |
| Spindle Taper: | BT-40 | Spindle Speed: | 8000r/min |
| Main Motor Power: | 7.5/11kw | Machine Weight: | 3500kg |
| Overall Dimension (L*W*H): | 2400*1900*2400mm | ||
Product Description
Product Description
Vertical Machining Center VMC650G
Applications of the vertical machining center:
The VMC-G series CNC vertical mill is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
The VMC-G series CNC vertical mill is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
Specification
Specification | Unit | VMC650G |
Table size | mm | 1000*420 |
Loading capacity | kg | 400 |
T-slots (No./width/pitch) | mm | 5-18-80 |
Distance spindle nose to table center | mm | 130-630 |
Distance spindle center to column | mm | 495 |
Spindle taper | - | BT-40 |
Spindle speed | r/min | 8000 |
Main motor power | kw | 7.5/11 |
Machine weight | kg | 3500 |
Overall dimension (L*W*H) | mm | 2400*1900*2400 |
Accessories
Standard accessories:
√ SIEMENS808D CNC system
√ X/Y/Z: Linear guide rails
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories:
_ MITSUBISHI/FANUC/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system

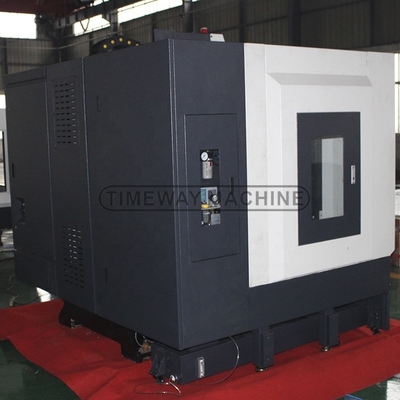

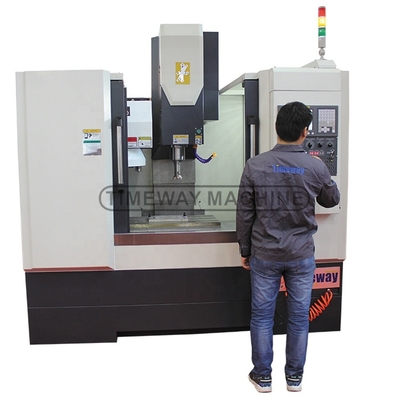

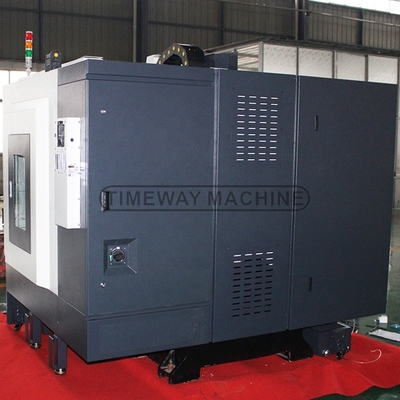

Detailed Images
Applications of the vertical machining center:

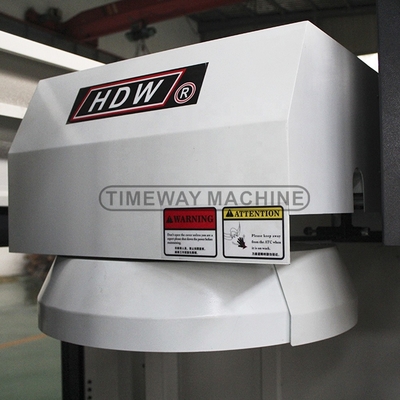

Machine Details
========================

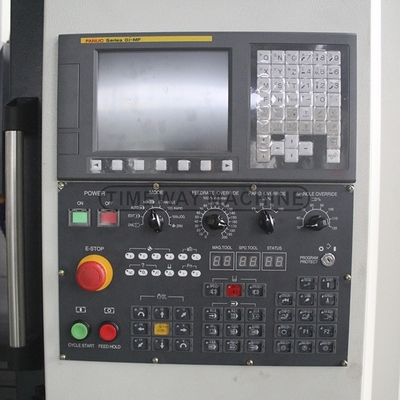

>> Stable CNC system guarantees all working performance of the CNC vertical machining center. >> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
========================
>> Hardened and fine ground worktable surface make sure high rigidity. >> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces. >> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
