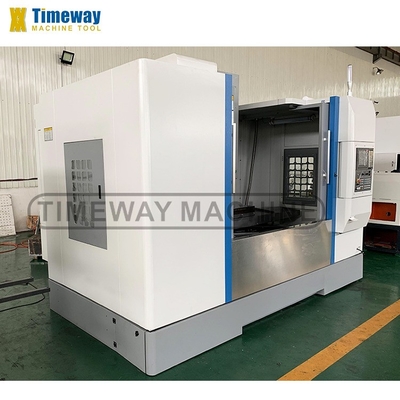

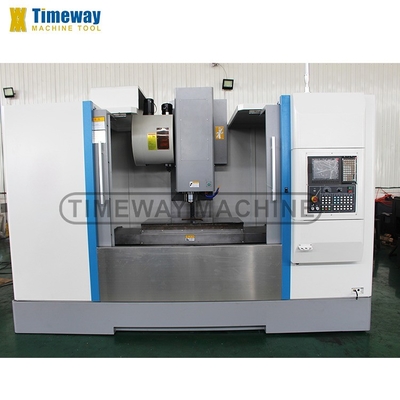

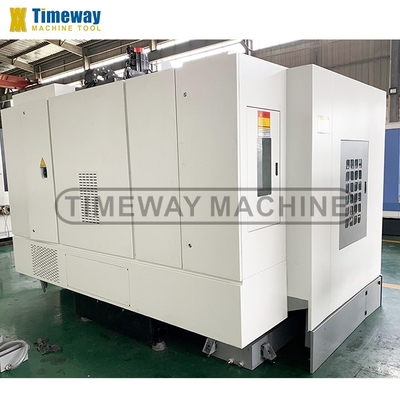

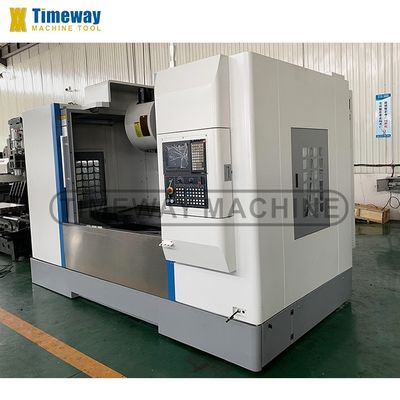

High Speed CNC Vertical Machining Center Timeway 3-axis with FANUC Control System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC/Timweway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3380*2550*2960 | Weight (T): | 7 T |
| Table Size (mm): | 1200x600 | CNC Control System: | FANUC, KND, Siemens, DELEM |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1100 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | 0.008 | Repeatability (X/Y/Z) (mm): | 0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 11/15 |
| Max. Table Load(kg): | 800 Kg | Min. Time Of Tool Change(s): | 4 |
| Tool Magazine Capacity: | 10, 12, 24 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Vertical Machining Center |

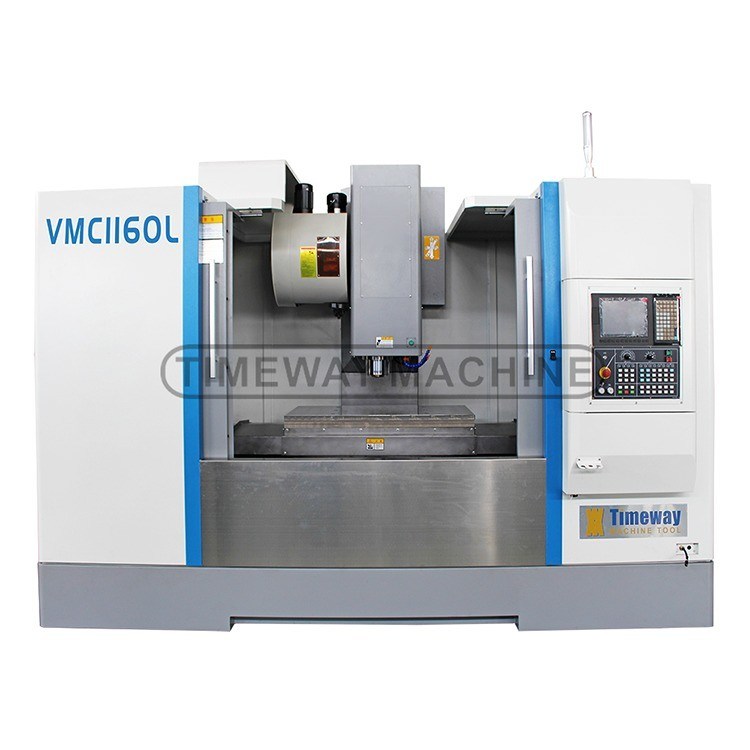

| CNC Or Not: | CNC High Speed Machining Center | Model: | VMC1160L |
| CNC Controller: | GSK KND SIEMENS FANUC MITSUBISHI | After-sales Service Provided: | 1 Years |
| Spindle Speed: | 8000 Rpm | Table Size: | 600*1200mm |
| X Axis Travel: | 1100mm | Y Axis Travel: | 600mm |
| Z Axis Travel: | 600mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Brazil, Saudi Arabia, India, Chile, South Africa | Core Components: | Motor |
| Port: | China Port | ||
Product Description
Product Description

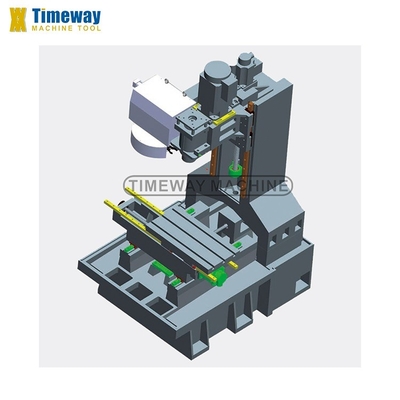

CNC Vertical Machining Center
Specification
Specifications | Unit | VMC1160L |
Table size | mm | 600x1200 |
T-slot (No./width/pitch) | mm | 5/18/100 |
Loading capacity | kg | 800 |
Longitudinal travel (X) | mm | 1100 |
Cross travel (Y) | mm | 600 |
Vertical travel (Z) | mm | 600 |
Distance from spindle nose to table | mm | 120-720 |
Distance from spindle center to column | mm | 672 |
Spindle taper | - | BT40 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 36/36/36 |
X/Y/Z-axis feed motor torque | N.m | 23/23/23 |
X/Y/Z-axis positioning accuracy | mm | 0.008 |
X/YZ-axis repetability accuracy | mm | 0.005 |
Main motor power | kw | 11/15 |
Air pressure source | kg/cm2 | 8 |
Total power | Kva | 20 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | Linear |
Machine weight | kg | 7000 |
Machine dimensions (LxWxH) | mm | 3380x2550x2960 |
Accessories
standard accessories：
√FANUC/MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND CNC system
√ X/Y: Linear guide rail;Z:Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ X/Y: Linear guide rail;Z:Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
optional accessories：
_ 4th axis wiring
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
