Product Details:

Place of Origin: Henan, China
Brand Name: TIMAC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $29,500.00/sets 1-1 sets
Packaging Details: In plywood cases.
Supply Ability: 300 Set/Sets per Month .
Get Best Price Contact Now

Detail Information
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: Not Available Core Components: Engine, Motor
Warranty: 1 Year Key Selling Points: Automatic
Weight (KG): 3100 Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia After-sales Service Provided: Engineers Available To Service Machinery Overseas
Blade Speed: 25/45/75 M/min Blade Size: 41x1.25x5450 Mm
Motor Main: 4.0 Kw (6P) Motor Hydraulic: 0.75kw
Coolant Pump: 0.06kw Workpiece Clamping: Hydraulic Vice
Blade Tensioning: Manual Main Drive: Wormwheel Drive
Table Height: 510 Mm Port: China Port

Product Description

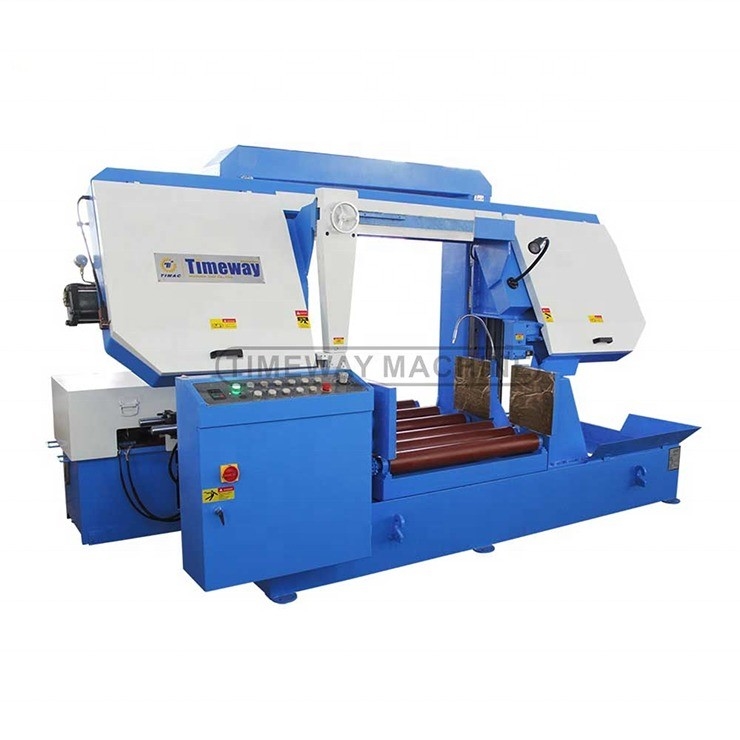

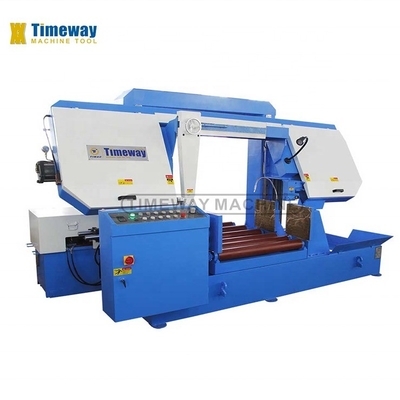

0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 0
China Precision Double Column Semi Automatic Band Sawer For Sale
The automatic and semi-automatic dual-column horizontal sawing machine series designed by our company is incorporated with advantages of many other manufactures, featuring reasonable structure, stable
and reliable performance, and high precision. It is ideal equipment for sawing/cutting of medium/small lots.

Standard equipment Blade cleaning brush, Working light, Saw frame height selector gauge, Out feed with auxiliary plate table, Length stopper, One piece of bi-metal saw blade, One set of tools with tool box, Roller table 1M long (for SAB-40series), Power roller table 1.5M long (for SAB-500) Optional equipment Power roller table 2M long, Laser projector, Hydraulic blade tension, roller table 2M long
PRODUCT SPECIFICATIONS
Model
Unit
SAB-400
SAB-4060
SAB-4070
SAB-500
Cutting capacity
mm
●400 ▅500Wx400H
●400 ▅600Wx400H
●400 ▅700Wx400H
●500 ▅500Wx500H
Blade speed
m/min
26/38/52/70/90
26/38/52/70/90
19/30/50/65/80
25/45/75
Blade size
mm
34x1.1x4650
41x1.25x4870
41x1.25x5080
41x1.25x5450
Motor main
kw
3.0 (4P)
3.0 (4P)
4.0 (6P)
4.0 (6P)
Motor hydraulic
kw
0.75
0.75
0.75
0.75
Coolant pump
kw
0.06
0.06
0.06
0.06
Workpiece clamping
Hydraulic vice
Hydraulic vice
Hydraulic vice
Hydraulic vice
Blade tensioning
Manual
Manual
Manual
Manual
Main drive
Wormwheel drive
Wormwheel drive
Wormwheel drive
Wormwheel drive
Table height
mm
620
620
620
510
Size outward (LxWxH)
mm
2400x1100x1730
2430x1100x1730
2465x1200x1730
2635x1210x1885
0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 1
0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 2
0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 3
Company Introduction
0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 4
0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 5
Package & Transportation
0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 6
Exhibition & Training
0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 7
Customers Visited
0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 8
Why Choose Us
Why choose TIMEWAY MACHINE?
1 . High quality with competitive price;
2 . Professional R&D team and 25 years exportexperience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
0.75kw Hydraulic Motor Semi Automatic Double Column Band Sawer for Precision Cutting 9
FAQ


Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc.

Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
