24m/min Rapid Feed Speed Horizontal Machining Center for Production
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $78,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 5800*4800*3800 | Weight (T): | 15 T |
| Table Size (mm): | 800*800 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 1600 |
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 1000 |
| Positioning Accuracy (mm): | 0.02 | Repeatability (X/Y/Z) (mm): | 0.015 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 2000 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 9 | Tool Magazine Capacity: | 16, 20 |
| Key Selling Points: | Automatic | Warranty: | 13 Months |
| Voltage: | 220V/380V | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Horizontal Machining Center |
| Machine Type: | CNC Machine | Application: | Metal Machining Center |
| Keywords: | Horizontal Machine Cetner | CNC Or Not: | CNC Systemn |
| Processing: | Chinese Cnc Machining Center | Worktable Size: | 800*800 |
| The Number Of Axis: | 3 | X-axis Travel: | 1600mm |
| Y-axis Travel: | 1000mm | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Italy, Brazil, Peru, Indonesia, India, Mexico, Russia, UAE | Core Components: | Engine |
| Rapid Feed Speed(m/min): | 24 | Port: | China Port |
Product Description
Product Description

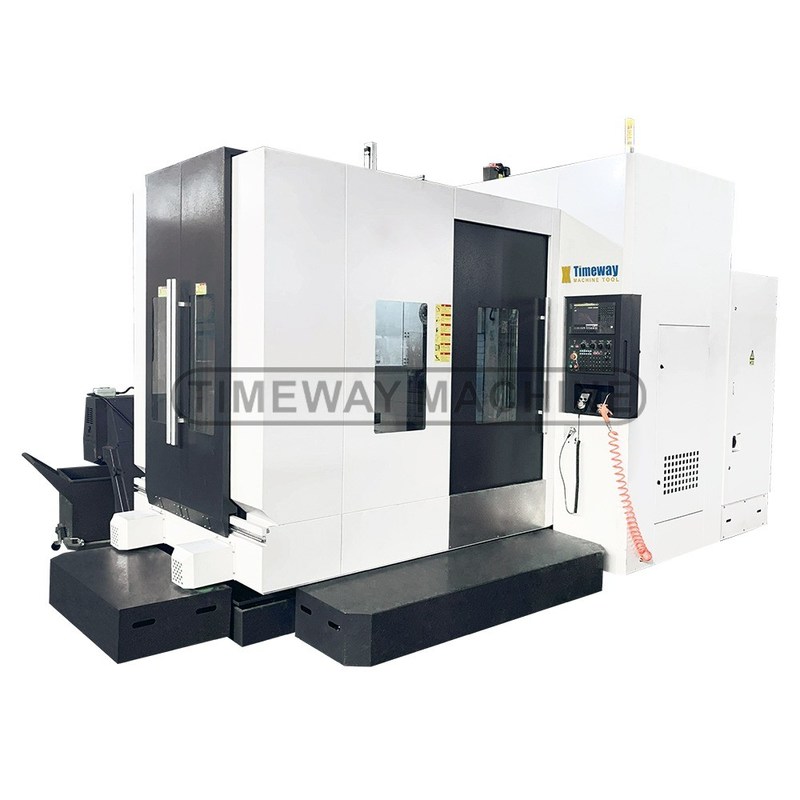

Horizontal Machining Center
Standard accessories:
√ FANUC 0i MF CNC system
√ X/Y: Linear guide rails, Z: Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm

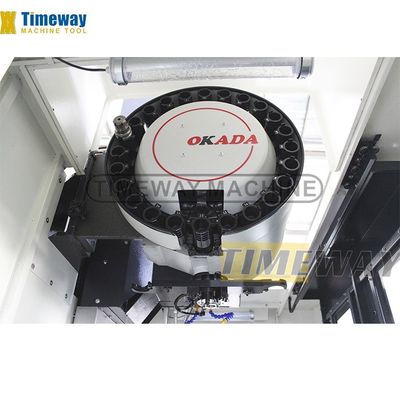

√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories:
_MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
Specification
Specification | Unit | HMC630A | HMC800 |
Wortable size | mm | 630x630 | 800x800 |
Worktable number | pcs | 1 | 1 |
Worktable indexing | ° | 0.001° | 0.001° |
T-slot of worktable (No.-sizexdistance) | - | 5/18/152.5 | 5/22/165 |
Worktable rotation speed | rpm | 11.1 | 11.1 |
Worktable loading capacity | kg | 1000 | 2000 |
Locking force (35kg/cm2) | kg/m | 4000 | 5000 |
X axis travel | mm | 1200 | 1800 |
Y axis travel | mm | 810 | 1400 |
Z axis travel | mm | 700 | 900 |
Distance from spindle center to worktable | mm | -60-740 | -305-1105 |
Distance from spindle nose to wortable center | mm | 215-880 | 250-1100 |
Spindle taper | - | BT50 | BT50 |
Max. spindle speed | rpm | 6000 | 6000 |
ATC style/station | - | 24 (Disc) | 40 (Chain) |
Max. tool diameter | mm | Φ78/Φ125 | Φ125 |
Max. tool length | mm | 300 | 400 |
Max. tool weight | kg | 8 | 20 |
Tool change time | sec | 7 | 7 |
X/Y/Z-axis feed speed | mm/min | 1-8000 | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 12/12/12 | 18/12/18 |
X/Y/Z-axis guideway type | - | sliding | X/Z: Linear/Y: sliding |
X/Y/Z-axis positioning accuracy | mm | 0.01 | 0.015 |
X/Y/Z-axis repositioning accuracy | mm | 0.006 | 0.008 |
B-axis positioning accuracy | sec | 10" | 10" |
Main motor power | kw | 15/18.5 | 15/18.5 |
X/Y/Z-axis feed motor torque | NM | 16/18/20 | 26/30/30 |
B-axis feed motor torque | NM | 15 | 20 |
Power capacity | kva | 50 | 50 |
Air pressure | kg/cm2 | 8 | 8 |
CNC system | - | FANUC | FANUC |
Machine weight | kg | 8000 | 12000 |
Machine dimensions (LxWxH) | mm | 4285x3120x3280 | 5800x4800x3800 |
