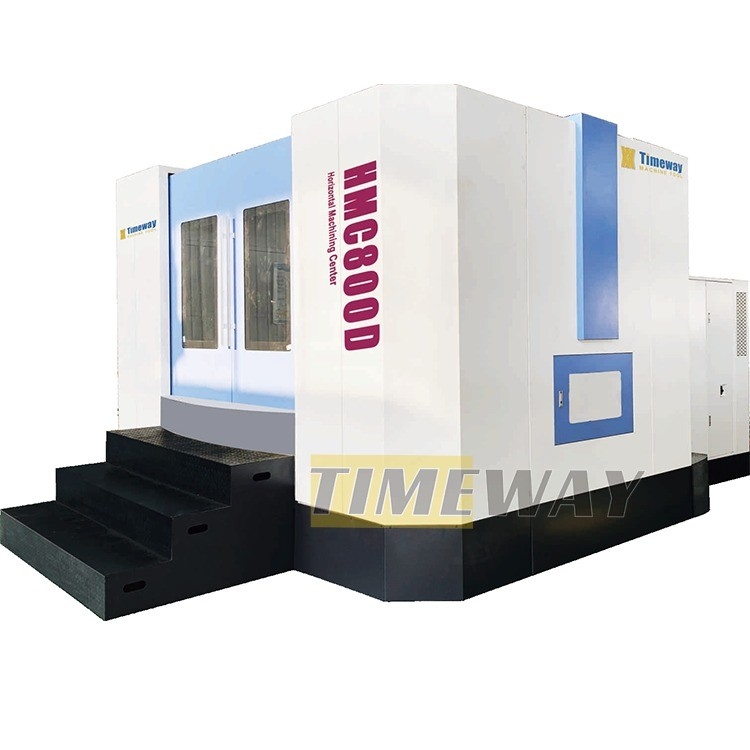

Upgrade Your Production Line with Our CNC Milling Machine Horizontal Machine Center
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $55,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 6580*3580*2570mm | Weight (T): | 12 T |
| Table Size (mm): | 800*800 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1800 |
| Table Travel (Y) (mm): | 1400 | Table Travel (Z) (mm): | 900 |
| Positioning Accuracy (mm): | 0.008 Mm | Repeatability (X/Y/Z) (mm): | 0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 2000 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 0.5 | Tool Magazine Capacity: | 16, 12, 24 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Voltage: | Customized | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 800*800 |
| Product Name: | CNC Machining Center | Machine Type: | Cnc Horizontal Machining Center |
| Application: | Metal Machining Center | Keywords: | Horizontal Machine Cetner |
| CNC Or Not: | CNC Systemn | Color: | Custom-made |
| The Number Of Axis: | 3 | X-axis Travel: | 1800 |
| Y-axis Travel: | 1400 | Showroom Location: | None |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 24 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Metal Machining | Port: | China Port |
Product Description
Product Description
CNC Milling Machine---Horizontal Machining Center
Standard accessories:
√ FANUC 0i MF CNC system
√ X/Y: Linear guide rails, Z: Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories:
_MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
Specification
Specification | Unit | HMC800S |
B-axis servo motor torque(FANUC) | - | 20 |
Table indexing | ° | 1°x360 |
T-slots (No./width/pitch) | - | 5-22-165 |
Table rotation speed | rpm | 11.1 |
Loading capacity | kg | 2000 |
Locking force(35kg/cm2) | kg/m | 5000 |
X/Y/Z-axis rapid feed speed | m/min | 24/12/18 |
B-axis positioning accuracy | '' | 10'' |
ATC capacity (style) | tools | 40(Chain) |
Max. tool weight | kg | 20 |
Max. tool diameter | mm | 125/230 |
Max. tool length | mm | 300 |
Air pressure require | kg/cm2 | 8 |

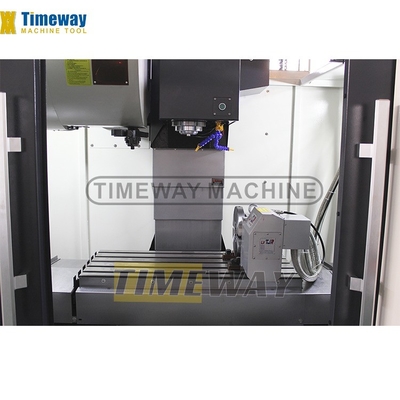

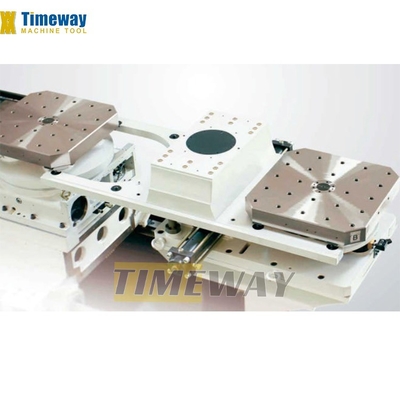

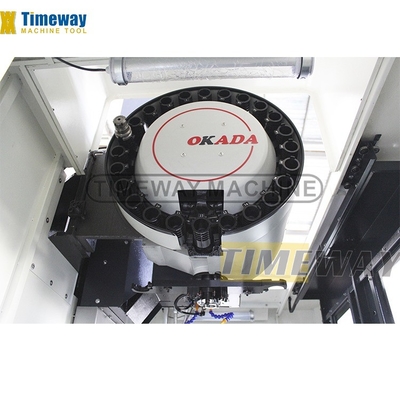

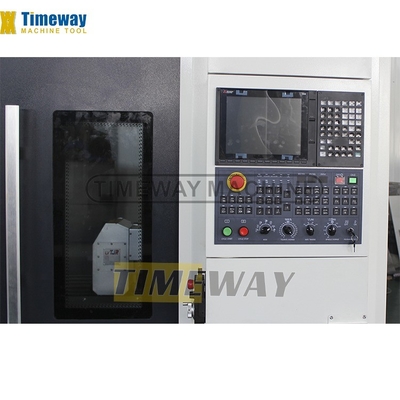

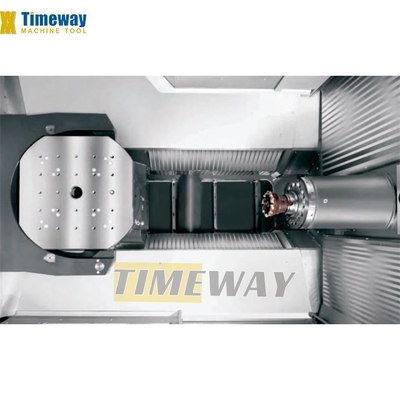

Detailed Images
