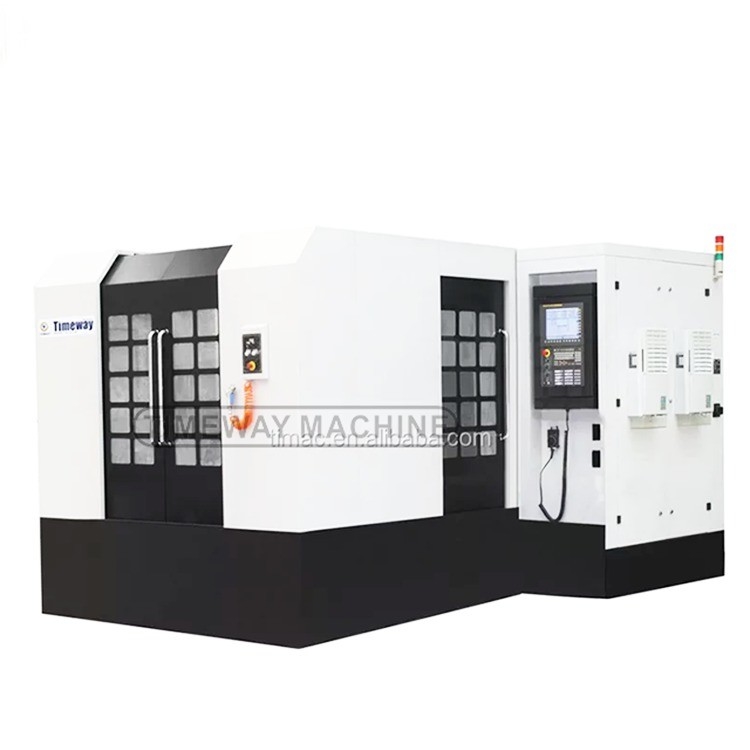

2620x4000x2600 CNC Horizontal Machining Center for Manufacturing Plant Requirement
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $88,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 2620x4000x2600 | Weight (T): | 15 T |
| Table Size (mm): | 400*400 | CNC Control System: | GSK, FANUC, KND, Siemens |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 600 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | 0.0075 | Repeatability (X/Y/Z) (mm): | 0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 10000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 2000 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 9 | Tool Magazine Capacity: | 16, 20 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Voltage: | 220V/380V | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Machining Center |
| Machine Type: | Cnc Horizontal Machining Center | Application: | Metal Processing |
| Keywords: | Horizontal Machine Cetner | CNC Or Not: | CNC Systemn |
| Processing: | Metal Milling Machine | Precision: | High Precision Machining Center |
| Color: | Custom-made | Worktable Size: | 400*400 |
| The Number Of Axis: | 3 | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Italy, Brazil, Peru, Indonesia, India, Mexico, Russia, UAE | Core Components: | Engine |
| Rapid Feed Speed(m/min): | 24 | Port: | China Port |
Product Description
Product Description
Specification
Techncial parameters | Unit | H3 APC | H4 APC | H5 APC | H6 APC |
Wortable size | mm | 300x300 | 400x400 | 500x500 | 630x630 |
Worktable number | - | 2 | 2 | 2 | 2 |
Worktable indexing | ° | 0.001° | 0.001° | 0.001° | 0.001° |
Worktable loading capacity | kg | 250kgx2 | 1000kgx2 | 600kgx2 | 1000x2 |
T slot of worktable (No.-sizexdistance) | - | 24-M12(80x80) | 5-14x80 | 5-14x100 | 24-M16 (125x125) |
X axis travel | mm | 460 | 600 | 900 | 1050 |
Y axis travel | mm | 350 | 600 | 800 | 900 |
Z axis travel | mm | 350 | 600 | 800 | 1050 |
Distance from spindle center to worktable | mm | 60-410 | 0-600 | 0-800 | 0-900 |
Spindle taper (Style/diameter) | - | BT40-Φ120 | BT40-Φ120 | BT50-Φ190 | BT50-Φ190 |
Max. spindle speed | rpm | 10000 | 10000 | 6000 | 6000 |
ATC style/station | - | Disc/24pcs | Disc/24pcs | Disc/24pcs | Disc/24pcs |
Max. tool diameter | mm | 300 | 300 | 350 | 350 |
Max. tool length | mm | Φ80 | Φ80 | Φ127 | Φ127 |
Max. tool weight | kg | 7 | 7 | 15 | 15 |
Main motor | kw | 5-7.5 | 15-18.5 | 15 | 15-18.5 |
Net weight (appox.) | kg | 6300 | 15000 | 10000 | 15000 |
Overall dimension (LxWxH) | mm | 2220x3000x2400 | 2620x4000x2600 | 3530x4600x2800 | 3800x6200x3200 |
Main configuration & accessories:
1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, H3APC/H4APC is direct driven spindle;
5. Taiwan production pneumatic cylinder;

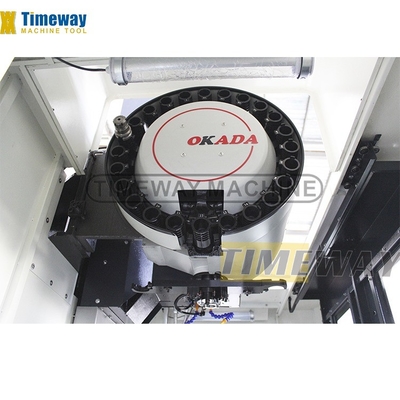

6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;

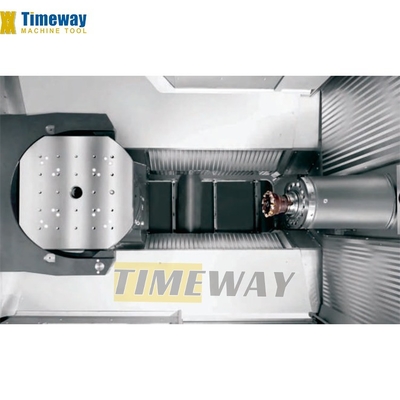

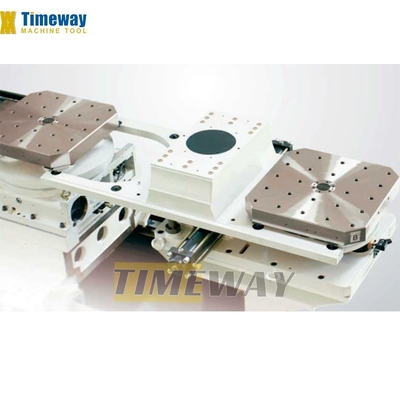

10. Exchangeable NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and Internet interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;

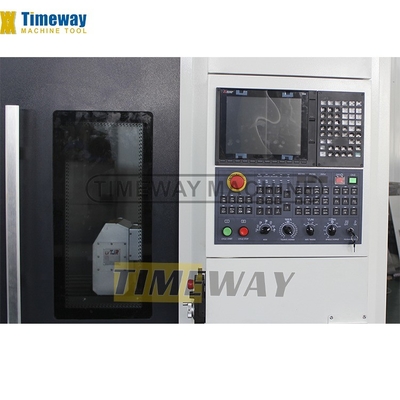

20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, H3APC/H4APC is direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. Exchangeable NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and Internet interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Optional configuration & accessories:
1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Chain type chip conveyor;
1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Chain type chip conveyor;
