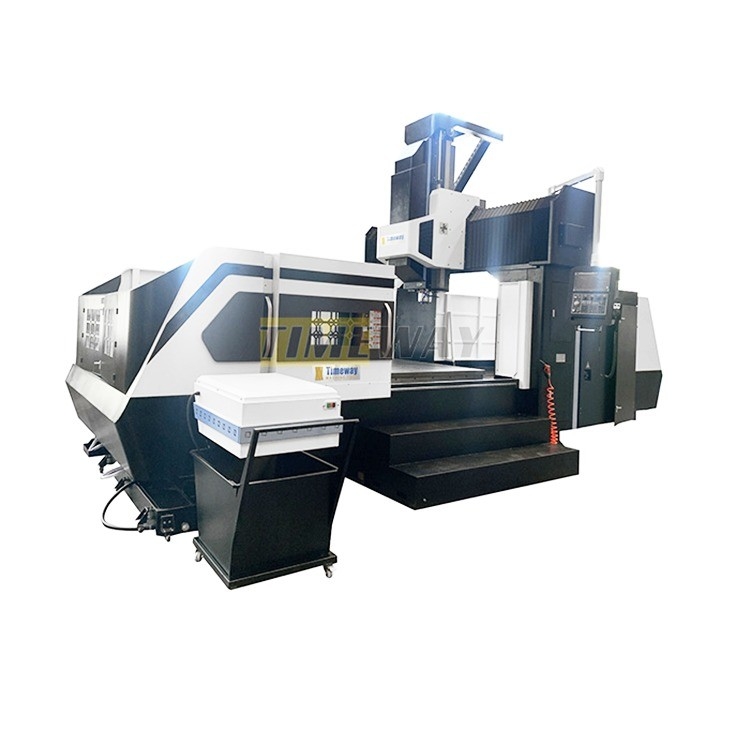

15 T Weight Gantry Type Milling Machine for Large-Scale CNC Machining Center in Chin
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $98,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Gantry |
| Dimension(L*W*H): | 2880x2250x2500 | Weight (T): | 15 T |
| Table Size (mm): | 1000*2300mm | CNC Control System: | FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 2 | Table Travel (X) (mm): | 2700 |
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 500 Mm |
| Positioning Accuracy (mm): | 0.01 Mm | Repeatability (X/Y/Z) (mm): | 0.005 |
| Spindle Motor Power(kW): | 7.5 | Max. Table Load(kg): | 1000 Kg |
| Feed Speed(mm/min): | 0 - 6000 Mm/min | Min. Time Of Tool Change(s): | 2 |

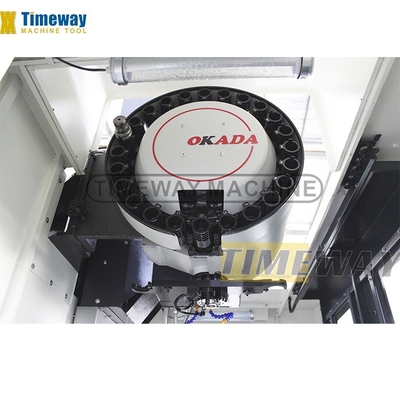

| Tool Magazine Capacity: | 24 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Voltage: | 220V/380V |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Machining Center | Machine Type: | Cnc Gantry Machining Center |
| Application: | General Machinery Processing | Product Type: | Cnc Milling Machine Metal |
| CNC Or Not: | CNC Systemn | Color: | Custom-made |
| Precision: | High Precision | Worktable Size: | 1000x2300mm |
| Name: | Machine Center CNC Machine | Control System: | SIEMENS GSK FANUC (optional) |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Energy & Mining, Advertising Company | Showroom Location: | None |
| Core Components: | PLC | Rapid Feed Speed(m/min): | 24/24/20 |
| Port: | China Port | ||
Product Description
Product Description
Feature：
Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term. X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway;high-precision, high-speed, strong cutting and high rigid. Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool. For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.
Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term. X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway;high-precision, high-speed, strong cutting and high rigid. Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool. For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.
Specification
Specification | Unit | GMC1800 | GMC2200 | GMC2700 |
Table width | mm | 1600 | 2000 | 2300 |
T-slot (No./width/pitch) | mm | 9/22/180 | 9/22/200 | 11/28/200 |
Cross travel (Y) | mm | 1800 (2000) | 2200 (2700) | 2700 (3050) |
Vertical travel (Z) | mm | 1000 | 1000 | 1000 |
Gantry width | mm | 1800 | 2300 | 2700 |
Max. height of workpiece | mm | 1300 | 1400 | 1400 |
Detailed Images

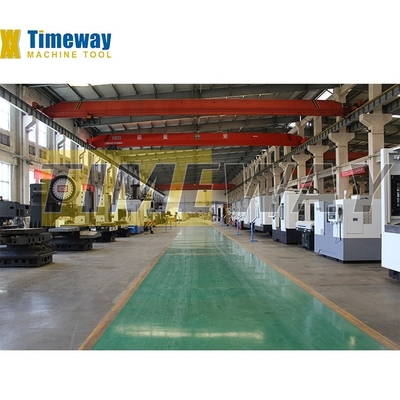

Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
