Vertical Machining Center with Max. Table Load of 800 kg and 3-Axis Operation System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 4300x3600x3200 | Weight (T): | 6.8 T |
| Table Size (mm): | 600*1300 | CNC Control System: | FANUC |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1000 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | 0.01 | Repeatability (X/Y/Z) (mm): | 0.001 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 15 |
| Max. Table Load(kg): | 800 Kg | Min. Time Of Tool Change(s): | 3 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Voltage: | 380V 50HZ /220V 60 HZ |
| Marketing Type: | Hot Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Worktable Size: | 600*1300 | The Number Of Axis: | 3 |
| Longitudinal Travel (X): | 1000 | Cross Travel (Y): | 600 |
| Product Name: | Vertical Machining Center | Machine Type: | Vertical |
| Keywords: | Vertical Machine Center VMC | Processing: | Chinese Cnc Machining Center |
| CNC Or Not: | CNC | Color: | Customized Colors |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works | Showroom Location: | Canada, Turkey, Italy, Germany |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 48 |
| Port: | China Port | ||
Product Description
Product Description

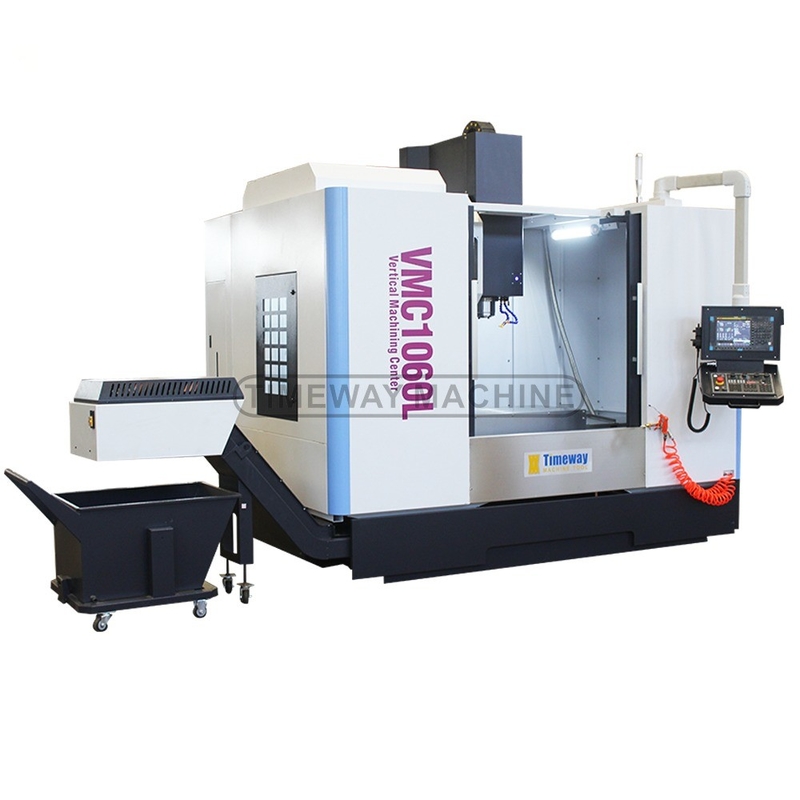

Vertical Machining Center
1. Improved gantry framework and the whole machine structure design.
2. Adopt artificial lidan bed body.
3. Direct-drive technology guarantees better dynamic response ability.
4. Driven at the center of gravity.
5. Linear axis rapid feeding speed is 60m/min.
6. High dynamic response technical.
7. Higher precision, higher processing efficiency.
8. Pick-up type tool magazine, tool change time is short.
9. High-speed C-axis realize milling and turning compound function.
10. A-axis swiveling angle range: -130deg to +130deg.
11. Intelligent power supply, energy saving 20% during service life.
2. Adopt artificial lidan bed body.
3. Direct-drive technology guarantees better dynamic response ability.
4. Driven at the center of gravity.
5. Linear axis rapid feeding speed is 60m/min.
6. High dynamic response technical.
7. Higher precision, higher processing efficiency.
8. Pick-up type tool magazine, tool change time is short.
9. High-speed C-axis realize milling and turning compound function.
10. A-axis swiveling angle range: -130deg to +130deg.
11. Intelligent power supply, energy saving 20% during service life.
Specification
Specification | Unit | VMC1060L | VMC1160L |
Table size | mm | 600x1300 | 600x1200 |
T-slot (No./width/pitch) | mm | 5/18/100 | 5/18/100 |
Loading capacity | kg | 800 | 800 |
Longitudinal travel (X) | mm | 1000 | 1100 |
Cross travel (Y) | mm | 600 | 600 |
Vertical travel (Z) | mm | 600 | 600 |
Distance from spindle nose to table | mm | 70-670 | 120-720 |
Distance from spindle center to column | mm | 655 | 672 |
Spindle taper | - | BT40 | BT40 |
Spindle speed | rpm | 8000 | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/18 | 36/36/36 |
X/Y/Z-axis feed motor torque | N.m | 15/15/15 | 23/23/23 |
X/Y/Z-axis positioning accuracy | mm | 0.008 | 0.008 |
X/YZ-axis repetability accuracy | mm | 0.005 | 0.005 |
Main motor power | kw | 11/15 | 11/15 |
Air pressure source | kg/cm2 | 8 | 8 |
Total power | Kva | 20 | 20 |

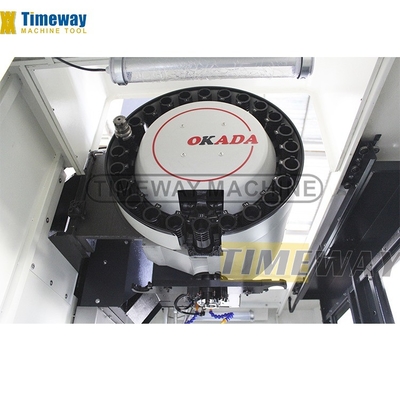

Tool magazine capacity | T | 24 (Disc) | 24 (Disc) |
Guideway type | - | Linear | Linear |
Machine weight | kg | 6800 | 7000 |
Machine dimensions (LxWxH) | mm | 3200x2380x2960 | 3380x2550x2960 |

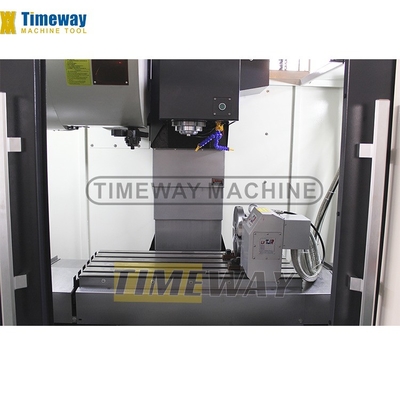

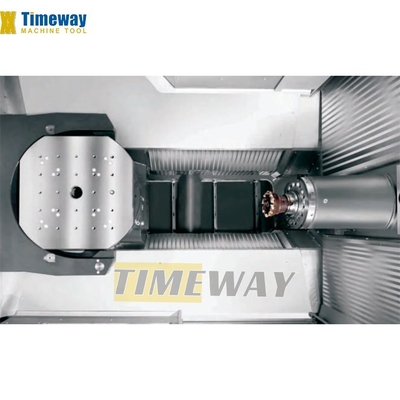

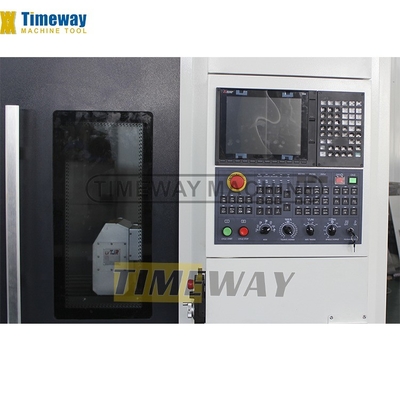

Detailed Images

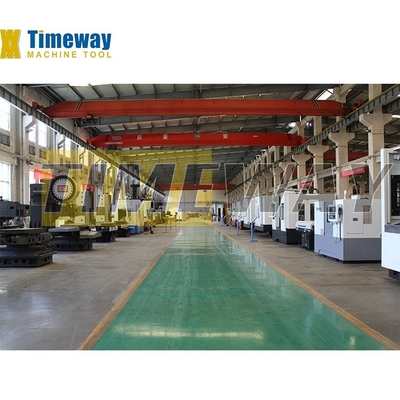

Company Profile
