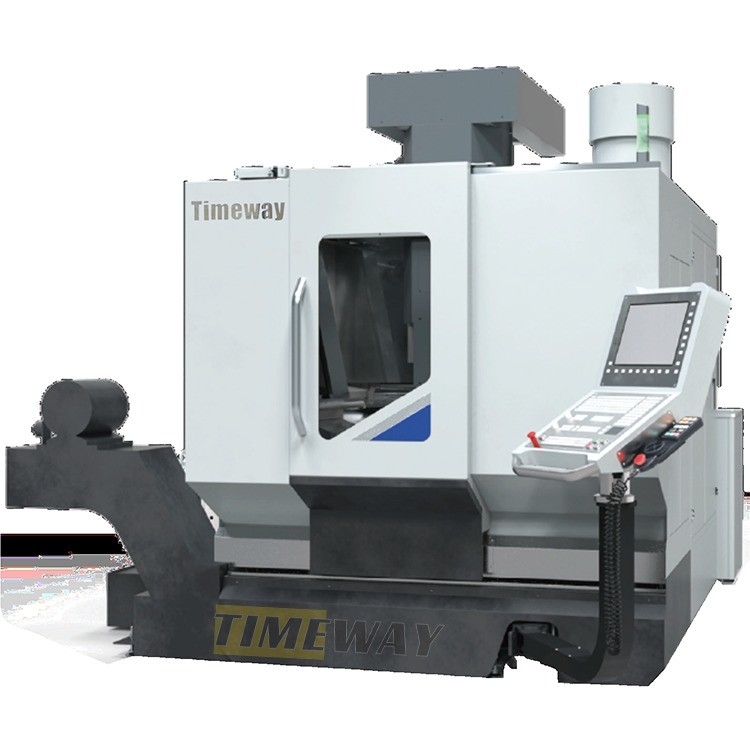

General Machinery Processing 5-Axis Vertical Machining Center with CNC 5 Axis Milling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $263,220.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | Single |
|---|---|---|---|
| Type: | VERTICAL | Dimension(L*W*H): | 3450*4155*2925 |
| Weight (T): | 6.2 T | Table Size (mm): | 400 |
| CNC Control System: | GSK, FANUC, Siemens | Number Of Axes: | 5 |
| Table Travel (X) (mm): | 450 | Table Travel (Y) (mm): | 500 |
| Table Travel (Z) (mm): | 450 | Positioning Accuracy (mm): | 0.005 |
| Repeatability (X/Y/Z) (mm): | 0.003 | Spindle Motor Power(kW): | 7.5Kw |
| Max. Table Load(kg): | 350 Kg | Min. Time Of Tool Change(s): | 0.5 |
| Tool Magazine Capacity: | 22 | Key Selling Points: | Multifunctional |
| Warranty: | 1 Year | Voltage: | Customized |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | 5 Axis CNC Milling Machine | Machine Type: | VMC CNC Milling Machine |
| Application: | General Machinery Processing | Keywords: | Vmc Machine Center |
| Product Type: | Cnc 5 Axis Machine | Precision: | High Precision Machining Center |
| CNC Or Not: | CNC Systemn | Name: | Vertical Machine Center CNC Machine |
| Usage: | Metal Parts Machining Center | Color: | Custom-made |
| Showroom Location: | None | Core Components: | Motor |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Metal Machining | Port: | China Port |
Product Description
Product Description
Specification
SPECIFICATION | UNIT | FMC400 |
X-axis Travel | mm | 450(-225~+225) |
Y-axis Travel | mm | 500(-250~+250) |
Z-axis Travel | mm | 450(+50~+500) |
A-axis Travel | ° | -120~+30 |
C-axis Travel | ° | n*360 |
Type | Direct Drive | |
Worktable Dim | mm | 400 |
Worktable Max. Load Capacity-Milling | kg | 350 |
Worktable Max. Load Capacity-Turning | kg | 175 |
Max. Turning Dia | mm | 600 |
Distance from A-axis Center to Worktable Face | mm | 0 |
A/C-axes Locking Mode | Pneumatic | |
Spindle Type | Electric Spindle | |
Spindle Taper Hole Size | HSK-A63 | |
Spindle Power | kW | S1/S6-40%:25/40 |
Spindle Torque | Nm | S1/S6-40%:87/135 |
Spindle Max. RPM | r/min | 20000 |
Spray Cutting Fluid Function from Spindle Center | Available | |
Rigid Tapping Function | Available | |
X/Y/Z-axes Fast Moving Speed | m/min | 60/60/60 |
A/C-axes Fast Moving Speed-Milling | r/min | 100/120 |
A/C-axes Fast Moving Speed-Turning | r/min | 100/2000 |
X/Y/Z-axes Positioning Precision | mm | 0.005/0.005/0.005 |
A/C-axes Positioning Precision | ″ | 7 |
X/Y/Z-axes Repeat Positioning Precision | mm | 0.003/0.003/0.003 |
A/C-axes Repeat Positioning Precision | ″ | 4 |
Tool Magazine Type | Umbrella Type Tool Magazine | |
Tool Capacity | Pc | 22 |
Max. Tool Weight | kg | 6 |
Max. Tool Dia | mm | 80 |
Max. Tool Length | mm | 250 |
Length×Width×Height | mm | 3450*4155* 2925 |
Machine Tool Weight | t | 6.2 |
