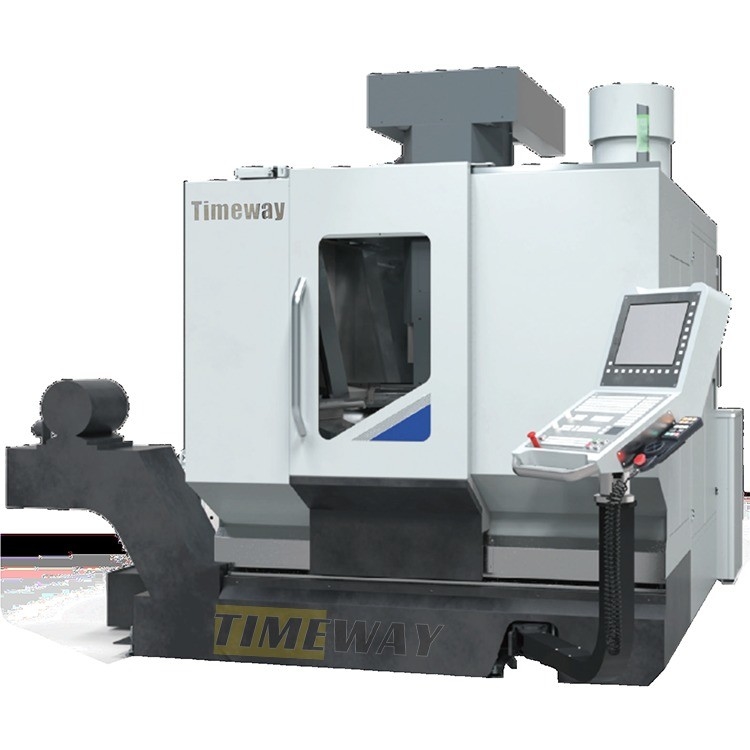

5-Axis Vertical Machining Center CNC Milling Machine with 7.5Kw Spindle Motor Power
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $265,300.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 4170*4715*3510 | Weight (T): | 12 T |
| Table Size (mm): | 630 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 5 | Table Travel (X) (mm): | 700 |
| Table Travel (Y) (mm): | 780 | Table Travel (Z) (mm): | 550 |
| Positioning Accuracy (mm): | 0.006 | Repeatability (X/Y/Z) (mm): | 0.004 |
| Spindle Motor Power(kW): | 7.5Kw | Max. Table Load(kg): | 1200 Kg |
| Min. Time Of Tool Change(s): | 0.5 | Tool Magazine Capacity: | 30 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Voltage: | Customized | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Vertical Machining Center |
| Machine Type: | VMC CNC Milling Machine | Application: | General Machinery Processing |
| Keywords: | Vmc Machine Center | Product Type: | Cnc 5 Axis Machine |
| Precision: | High Precision Machining Center | CNC Or Not: | CNC Systemn |
| Processing: | Metal Cutting Cnc Milling Machine | Name: | Vertical Machine Center CNC Machine |
| Machine Name: | CNC Machining Center Metal Milling Machine | Showroom Location: | None |
| Core Components: | Motor | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Metal Machining |
| Port: | China Port | ||
Product Description
Product Description
Specification
SPECIFICATION | UNIT | FMC630 |
X-axis Travel | mm | 700(-350~+350) |
Y-axis Travel | mm | 780(-360~+420) |
Z-axis Travel | mm | 550(+80~+630) |
A-axis Travel | ° | -120~+30 |
C-axis Travel | ° | n*360 |
Type | Direct Drive | |
Worktable Dim | mm | 630 |
Worktable Max. Load Capacity-Milling | kg | 1200 |
Worktable Max. Load Capacity-Turning | kg | 600 |
Max. Turning Dia | mm | 850 |
Distance from A-axis Center to Worktable Face | mm | 80 |
A/C-axes Locking Mode | Hydraulic | |
Spindle Type | Electric Spindle | |
Spindle Taper Hole Size | HSK-A63 | |
Spindle Power | kW | S1/S6-40%:25/40 |
Spindle Torque | Nm | S1/S6-40%:87/135 |
Spindle Max. RPM | r/min | 20000 |
Spray Cutting Fluid Function from Spindle Center | Available | |
Rigid Tapping Function | Available | |
X/Y/Z-axes Fast Moving Speed | m/min | 60/60/60 |
A/C-axes Fast Moving Speed-Milling | r/min | 80/120 |
A/C-axes Fast Moving Speed-Turning | r/min | 80/850 |
X/Y/Z-axes Positioning Precision | mm | 0.006/0.006/0.006 |
A/C-axes Positioning Precision | ″ | 7 |
X/Y/Z-axes Repeat Positioning Precision | mm | 0.004/0.004/0.004 |
A/C-axes Repeat Positioning Precision | ″ | 4 |
Tool Magazine Type | Umbrella Type Tool Magazine | |
Tool Capacity | Pc | 30 |
Max. Tool Weight | kg | 6 |
Max. Tool Dia | mm | 80 |
Max. Tool Length | mm | 300 |
Length×Width×Height | mm | 4170*4715*3510 |
Machine Tool Weight | t | 12 |
Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Want to Know more details about this product
