1.Thermal expansion coefficient is only 1/20 of the cast iron, smaller thermal deformation error.
2. Artificial lidan damping are six times that of the cast iron, better vibratory performance.
3. Once forming, greatly save the subsequent processing time and cost.
4. Room temperature curing manufacturing process, the precision machine tool selection of bed materials.
 |

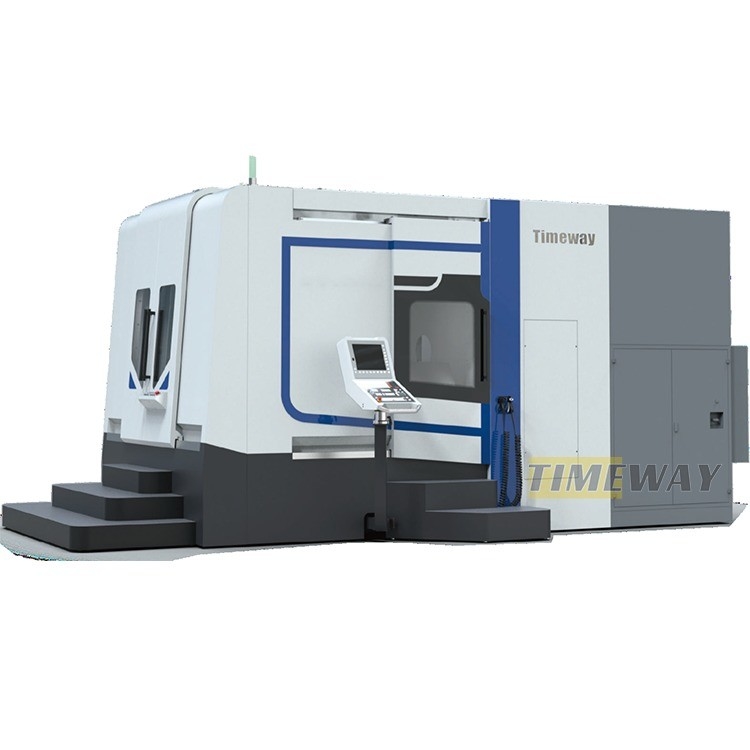

Multifunctional 5-Axis Horizontal Machining Center The Ultimate Milling Solution
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $236,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | HSK |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 7180*4880*4090 | Weight (T): | 25 T |
| Table Size (mm): | 1000 | CNC Control System: | FANUC, MITSUBISHI, Siemens |
| Number Of Axes: | 5 | Table Travel (X) (mm): | 1400 |
| Table Travel (Y) (mm): | 1200 | Table Travel (Z) (mm): | 1325 |
| Positioning Accuracy (mm): | 0.01 | Repeatability (X/Y/Z) (mm): | 0.006 |
| Spindle Motor Power(kW): | 5.5/7.5 | Max. Table Load(kg): | 1500 Kg |
| Min. Time Of Tool Change(s): | 1 | Tool Magazine Capacity: | 40 |
| Key Selling Points: | Multifunctional | Warranty: | 1 Year |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Horizaontal Machining Center | Machine Type: | HFMC CNC Milling Machine |
| Application: | Metal Machining Center | Keywords: | Horizontal Machine Center VMC |
| Product Type: | Cnc 5 Axis Machine | Precision: | High Precision Machining Center |
| Processing: | Metal Cutting Cnc Milling Machine | Model: | HFMC1000 |
| Color: | Custom-made | Showroom Location: | None |
| Core Components: | Gearbox | Applicable Industries: | Manufacturing Plant, Horologe |
| Port: | China Port | ||
Product Description
Product Description
Specification
SPECIFICATION | UNIT | HFMC1000 |
X-axis Travel | mm | 1400 |
Y-axis Travel | mm | 1200 |
Z-axis Travel | mm | 1325 |
A-axis Travel | ° | -45~91 |
B-axis Travel | ° | 360 |
Distance from Spindle Center to Worktable Face for HorizontalType | mm | -200~+1000 |
Distance from Spindle End Face to Worktable Center for Vertical Type | mm | / |
Distance from Spindle End Face to Worktable Center for Horizontal Type | mm | +250~+1575 |
Distance from Spindle Center to Worktable Center for Vertical Type | mm | / |
Type | Direct Drive | |
Worktable Dim. | mm | 1000 |
Worktable Qty | 1 | |
Worktable Max. Load Capacity | kg | 1500 |
Max. Turning Dia. | mm | 1200 |
Continuous Torque | Nm | 4240 |
Locking Torque | Nm | 8000 |
Type | Electric Spindle | |
Spindle Taper Hole Size | HSK-A100 | |
Spindle Power | kW | S1/S6-40%:50/70 |
Spindle Torque | Nm | S1/S6-40%:400/560 |
Spindle Max. RPM | r/min | 10000 |
X/Y/Z-axes Fast Moving Speed | m/min | 50/ 50/50 |
A/B-axes Fast Moving Speed | r/min | 20/60 |
X/Y/Z-axes Positioning Precision | mm | 0.01/0.008/0.01 |
A/B-axes Positioning Precision | ″ | 7 |
X/Y/Z-axes Repeat Positioning Precision | mm | 0.006/0.005/0.006 |
A/B-axes Repeat Positioning Precision | ″ | 4 |
Tool Magazine Capacity | Pc | 40/60(Optional Configuration) |
Max. Tool Weight | kg | 25 |
Max. Tool Dia. | mm | 250(No tool in the adjacent tool position)/125 |
Max. Tool Length | mm | 600 |
Length×Width×Height | mm | 7180×4880×4090 |
Machine Tool Weight | t | 25 |
Main Performance

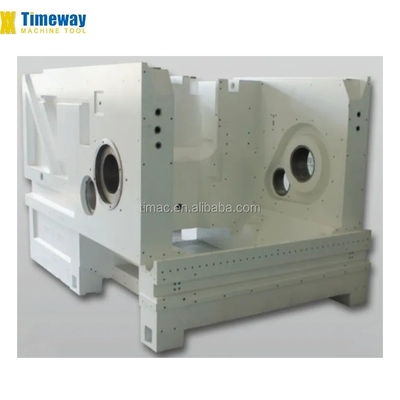

Artificial Lidan Bed body

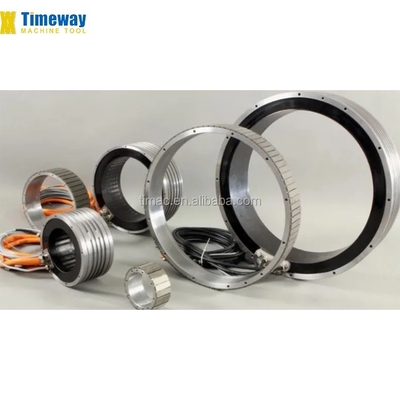

Direct Drive Technology
1. Good dynamic response ability
2. Backlash-free, no transmission mechanical wear
3. Through torque motor as rotary coordinate main drive technology
4. FMC-400 and FMC-400T C-axis is respectively equipped with low/high speed torque-motor, so that can high-precision finish
milling and turning.
2. Backlash-free, no transmission mechanical wear
3. Through torque motor as rotary coordinate main drive technology
4. FMC-400 and FMC-400T C-axis is respectively equipped with low/high speed torque-motor, so that can high-precision finish
milling and turning.

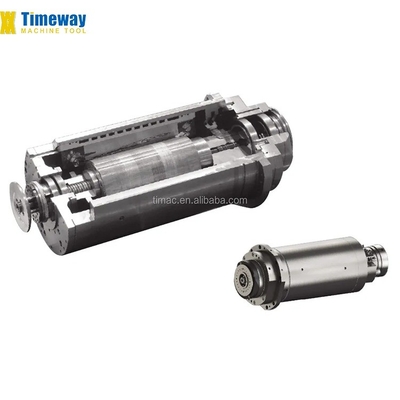

Electric Spindle
1. Milling electric spindle is one of the key parts of machining center, the series spindle is high-speed, precise, high rigid and
large -power electric spindle (Optional milling and turning compound electric spindle with spindle lock and turning function).
2. It is suitable for high efficiency precision machining of aerospace domain integral semal, complex body parts, aviation engine
box parts, spiral umbrella gear parts and mould parts.
large -power electric spindle (Optional milling and turning compound electric spindle with spindle lock and turning function).
2. It is suitable for high efficiency precision machining of aerospace domain integral semal, complex body parts, aviation engine
box parts, spiral umbrella gear parts and mould parts.
