6000rpm Spindle Speed speed 3 Axis Cnc Milling Machine Cnc Vertical Machining Center
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 10 KG | Table Size (mm): | 1360*700 |
| CNC Control System: | FANUC | Table Travel (X) (mm): | 1300 |
| Table Travel (Y) (mm): | 700 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | 0.008 | Repeatability (X/Y/Z) (mm): | 0.006 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Max. Table Load(kg): | 1200 Kg |
| Feed Speed(mm/min): | 0 - 6000 Mm/min | Min. Time Of Tool Change(s): | 0.5 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Automatic |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | 0 | Cutting Torque: | 12 N.m |
| Rapid Feed Speed(mm/min): | 0 - 2400 Mm/min | Product Name: | 3-axis Vertical Cnc Machining Center |
| Machine Type: | Vertical Machining Center | Model: | VMC1370L |
| Color: | Customers' Request | Control System: | SIEMENS GSK FANUC (optional) |
| Spindle Speed: | 6000rpm | Worktable Size: | 1360*700mm |
| After-sales Service Provided: | 1 Year | Guideway Type: | X/Y:Linear;Z:Sliding |
| Loading Capacity: | 1200kg | ||
Product Description
Products Description

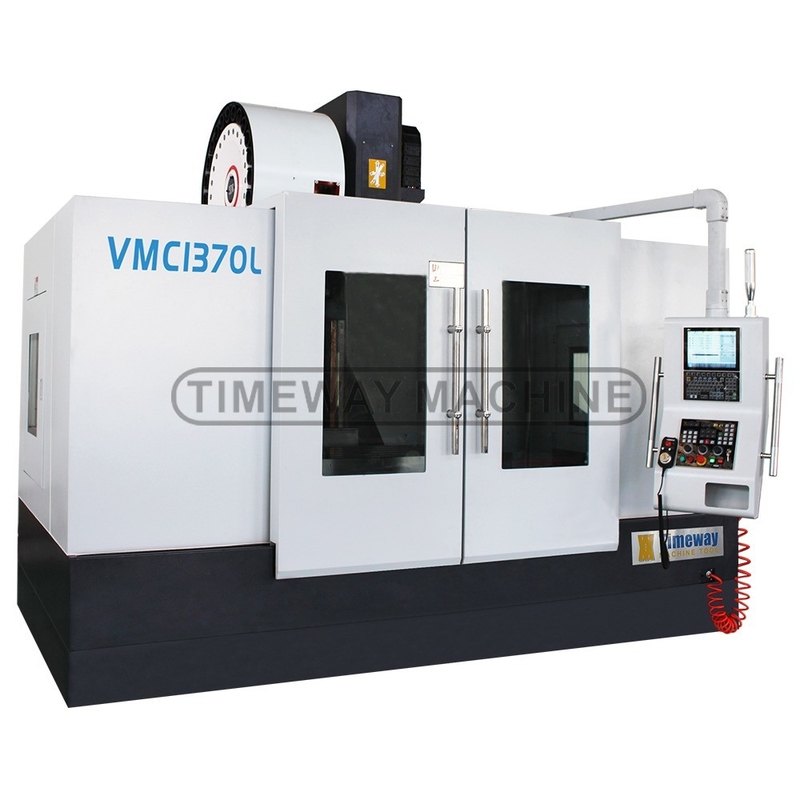

CNC Vertical Machining Center
X/Y:Linear guideway
Z:Sliding guideway
This machine is suitable for vertical machining centers in the field of machining machinery and mold manufacturing, from roughing and finishing and machining requirements applicable, can be finished milling, drilling, tapping, boring, and a wide variety of processes.
Technical Parameter
Specifications | Unit | VMC1370L |
Table size | mm | 700x1360 |
T-slot (No./width/pitch) | mm | 5/18/122 |
Loading capacity | kg | 1200 |
Longitudinal travel (X) | mm | 1300 |
Cross travel (Y) | mm | 700 |
Vertical travel (Z) | mm | 600 |
Distance from spindle nose to table | mm | 150-750 |
Distance from spindle center to column | mm | 785 |
Spindle taper | - | BT50 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/18 |
X/Y/Z-axis feed motor torque | N.m | 23/23/23 |
X/Y/Z-axis positioning accuracy | mm | 0.008 |
X/YZ-axis repetability accuracy | mm | 0.005 |
Main motor power | kw | 15/18.5 |
Air pressure source | kg/cm2 | 8 |
Total power | Kva | 30 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | X: Linear; Y: Linear, four rails; Z: Slinding |
Machine weight | kg | 10000 |
Machine dimensions (LxWxH) | mm | 3820×2600×3100 |
Detailed Images

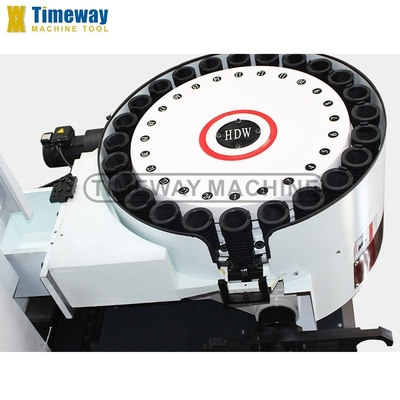

TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 tools magazine, double arm clamping to make a fast exchange.
tool change time only 3 seconds.
2. Brand: OKADA

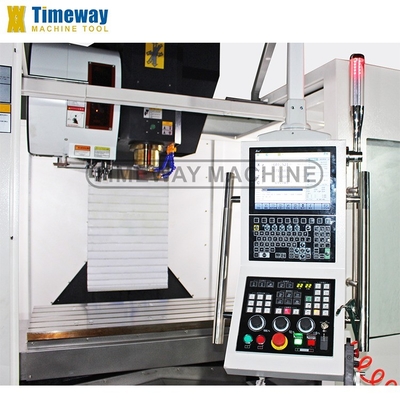

CONTROL SYSTEM
CNC controller: KND,GSK, HNC(China),SIEMENS, FANUC;
Different CNC systems for customers to choose.

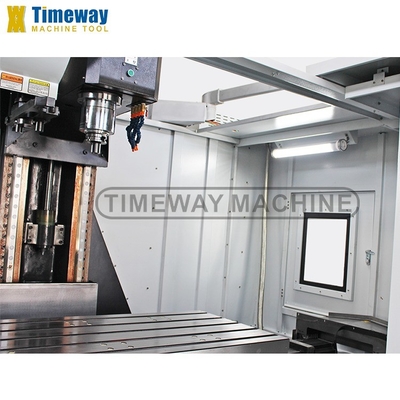

TAIWAN PRECISION SPINDLE
Smaller vibration, stronger combination
1. Spindle taper is BT50; 2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm;

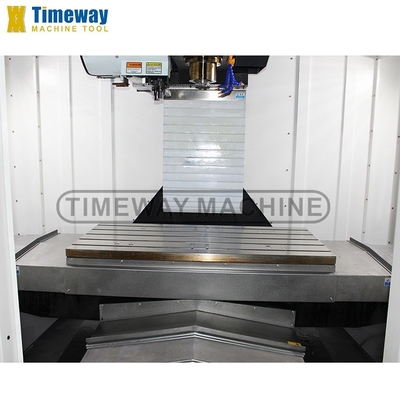

WORKTABLE
The material of the machine tool casting is high-quality high-strength cast iron HT300, with strong tensile strength and high dimensional accuracy High frequency hardening; increase rigidity and stiffness Good wear resis tance and long service life.
4 AXIS WRING+CNC ROTARY TABLE
4th axis wring and NC rotary table are optional.
5 AXIS WRING+CNC ROTARY TABLE
The specific configuration can be customized according to customer requirements.

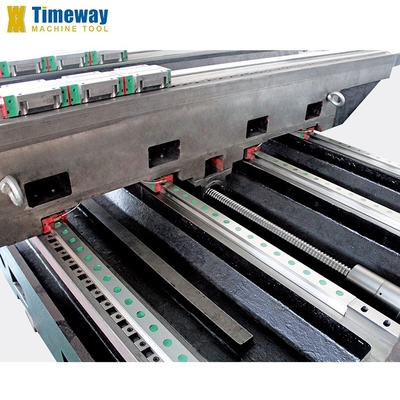

TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
2. Brand: HIWIN or PMI
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
FULL ENCLOSURE
Full enclosure is standard.
CHAIN TYPE CHIP CONVEYOR
Chain type chip conveyor is optional.
Accessories
*CNC controller: KND,GSK, HNC (China),SIEMENS, FANUC; *24 tool ATC(disc type); *Full enclosure; *Spindle center air blast; *Work lamp; *Pilot lamp; *USB and LAN interface; *Manual pulse generator(MPG); *Centralized automatic lubrication system.; *Cooling system.; *Heat exchanger for electrical cabinet ; *Leveling blocks & bolts; *Toolbox and tools; *HIWIN leadscrew; *Operation manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
