Industry-Grade VERTICAL Machining Center with 3/4/5 Axis Functionality and Precision
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $74,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | Bt40-155 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 4100*2820*3610 | Weight (T): | 12 T |
| Table Size (mm): | 1600*800 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1500 |
| Table Travel (Y) (mm): | 800 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | 0.003 | Repeatability (X/Y/Z) (mm): | 0.003 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1400 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | 3-axis Vertical Cnc Machining Center |
| Machine Type: | Vertical Milling Machine Centers | CNC Or Not: | CNC Systemn |
| After-sales Service Provided: | 1 Year | Model: | Vmc1580G |
| Color: | Customers' Request | Control System: | SIEMENS GSK FANUC (optional) |
| Guideways: | Linear | Worktable Size: | 1600*800mm |
| Spindle Speed: | 6000 Rpm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Printing Shops, Energy & Mining, Advertising Company |
| Showroom Location: | Saudi Arabia, Russia, Bangladesh, South Africa, Australia | Core Components: | Motor |
| Port: | China Port | ||
Product Description
Products Description

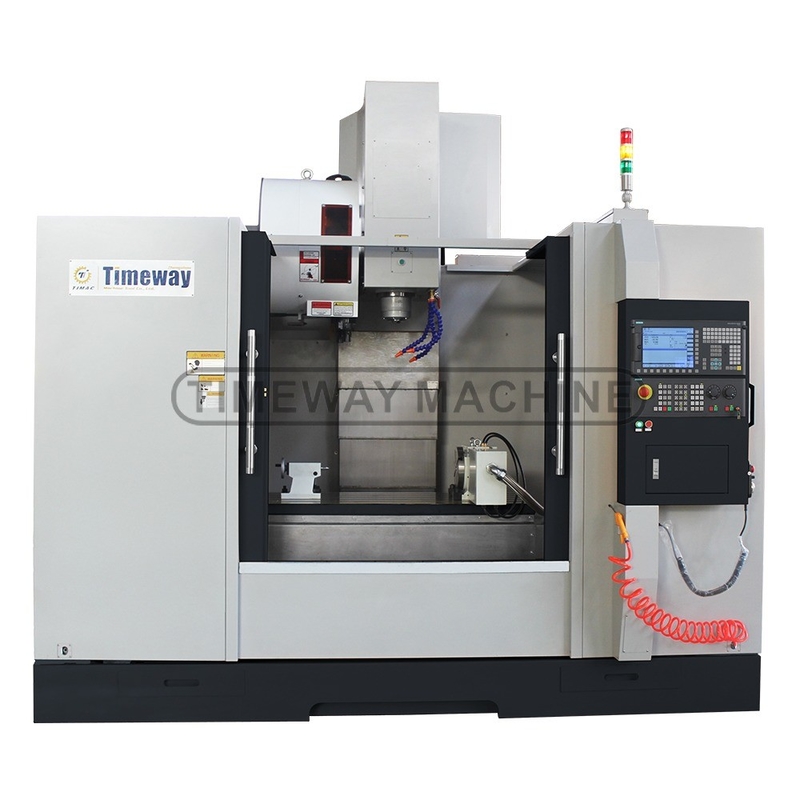

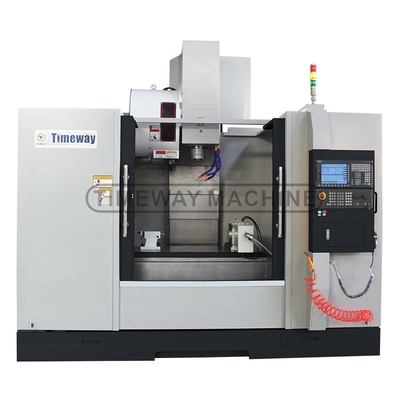

Vertical Machining Center
Specification
SPECIFICATION | UNIT | VMC1370G | VMC1580G |
Worktable size (LxW) | mm | 1360x700 | 1600x800 |
T-slot (No./width/pitch) | mm | 5-18-152.5 | 5-22-135 |
Loading capacity | kg | 1200 | 1400 |
Longitudinal travel (X) | mm | 1300 | 1500 |
Cross travel (Y) | mm | 700 | 800 |
Vertical travel (Z) | mm | 700 | 700 |
Distance from spindle nose to table | mm | 140-840 | 150-850 |
Distance from spindle center to column | mm | 816 | 855 |
Spindle taper | - | BT-50 (155) | BT-50 (155) |
Spindle speed | rpm | 6000 | 6000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/24 | 24/24/24 |
X/Y/Z-axis servo motor (FANUC) | - | β22/β22/β30 | β30/β30/β30 |
X/Y/Z-axis positioning accuracy | mm | ±0.003/300 | ±0.003/300 |
X/Y/Z-axis repositioning accuracy | mm | ±0.003/300 | ±0.003/300 |
Main motor power | kw | 15/18.5 | 15/18.5 |
Air pressure source | kg/cm2 | 6-8 | 6-8 |
Power capacity | Kva | 30 | 35 |
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) |
Guideway type | - | Linear | Linear |
Machine weight | kg | 10000 | 12000 |
Machine dimensions (LxWxH) | mm | 3820x2600x3100 | 4100x2820x3610 |
Accessories
1. CNC controller: KND,GSK, HNC (China),SIEMENS, FANUC, MITSUBISHI, etc. 2.X/Y/Z -linear guideway; 3.24 tool ATC(disc type); 4. HIWIN leadscrew; 5. Full enclosure; 6. Spindle center air blast; 7. Work lamp; 8. Pilot lamp; 9. USB and LAN interface; 10. Manual pulse generator (MPG); 11. Centralized automatic lubrication system. 12. Cooling system. 13. Heat exchanger for electrical cabinet ; 14. Leveling blocks & bolts; 15. Toolbox and tools; | 1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement system; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer. |
Detailed Images

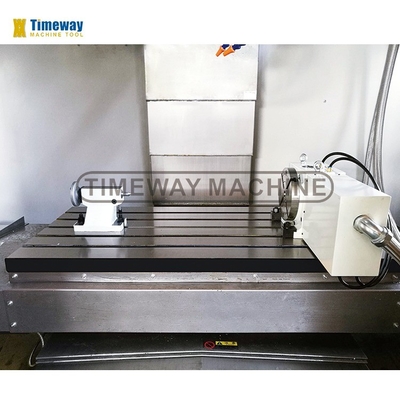

Hardened & Polished Table

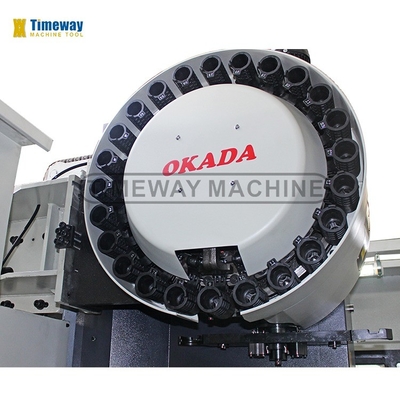

24 Tools Disc-type ATC

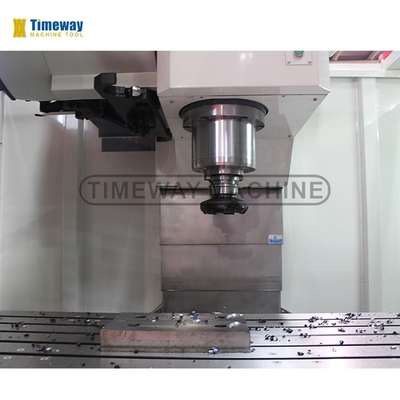

Taiwan Spindel & Clamp Arm

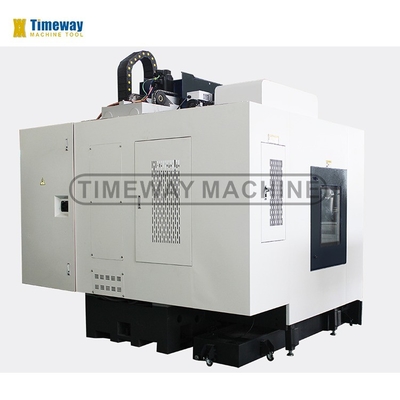

Full Splash Guard
4-track Linear for Y-axis
Strengthened Spindle Box

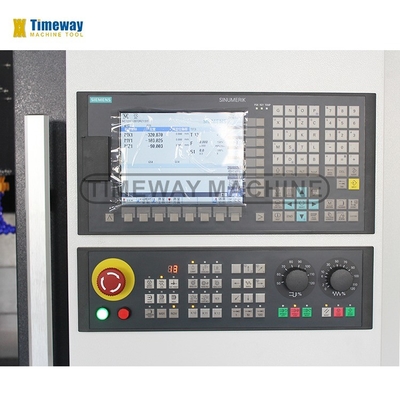

CNC controller: KND,GSK, HNC (China),SIEMENS, FANUC, MITSUBISHI, etc.
High rigidity machine bed
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
