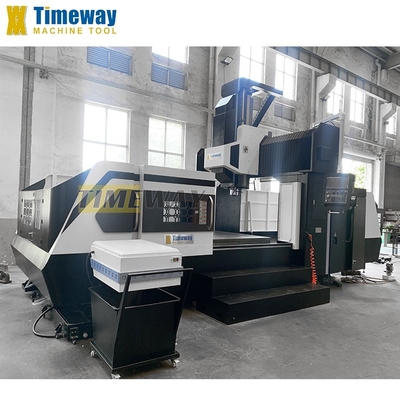

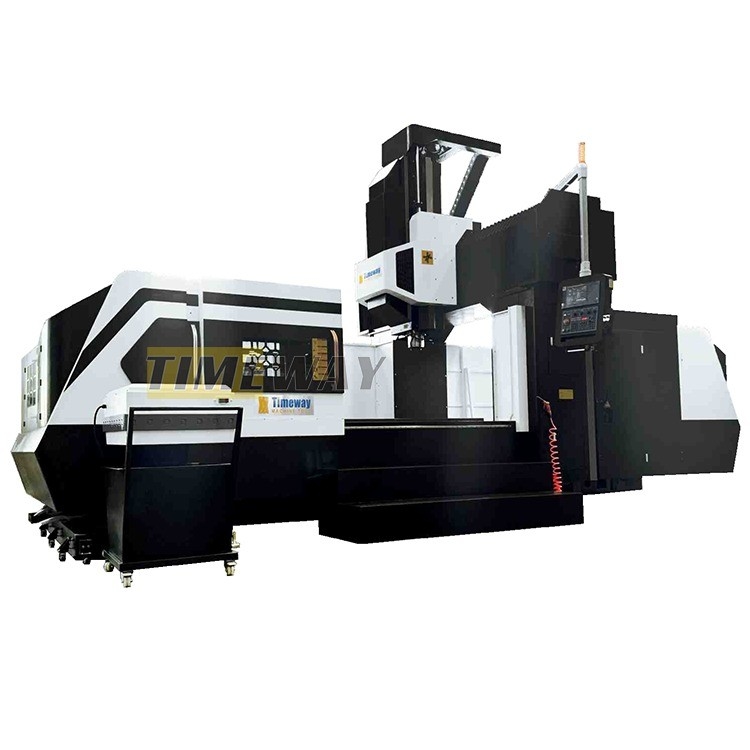

SIEMENS/GSK/FANUC Control Speed Gantry CNC Milling Machine for High Precision Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $198,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT30 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Gantry |
| Dimension(L*W*H): | 7750*5140*4100mm | Weight (T): | 42 T |
| Table Size (mm): | 3000*2300 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 5 | Table Travel (X) (mm): | 3000 |
| Table Travel (Y) (mm): | 2700 | Table Travel (Z) (mm): | 1000 |
| Positioning Accuracy (mm): | 0.005 | Repeatability (X/Y/Z) (mm): | 0.003 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 22/26 |
| Max. Table Load(kg): | 10000 Kg | Min. Time Of Tool Change(s): | 4 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Gantry CNC Machining Center |
| Machine Type: | Gantry Milling Machine | Model: | GMC2700 |
| CNC Or Not: | CNC Systemn | Control System: | SIEMENS GSK FANUC (optional) |
| Color: | Customer's Requirement | After-sales Service Provided: | 1 Year |
| Spindle Speed: | 6000 Rpm | Worktable Size: | 3000*2300mm |
| X/Y/Z Axis Travel: | 3000/2700/1000mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works |
| Showroom Location: | Saudi Arabia, Russia, South Korea, Bangladesh | Core Components: | Motor |
| Port: | China Port | ||
Product Description
Product Description

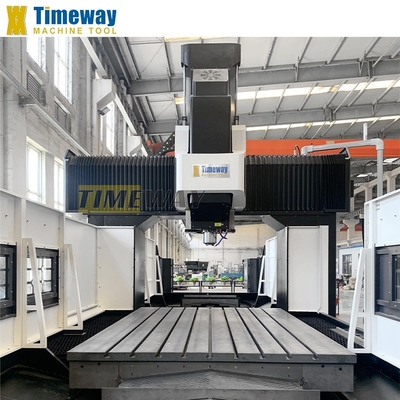

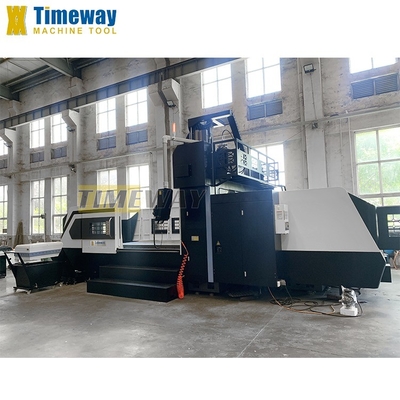

Gantry type Machining Center
Specification
Specification | Unit | GMC2200 | GMC2700 |
Table width | mm | 2000 | 2300 |
T-slot (No./width/pitch) | mm | 9/22/200 | 11/28/200 |
Cross travel (Y) | mm | 2200 (2700) | 2700 (3050) |
Vertical travel (Z) | mm | 1000 | 1000 |
Gantry width | mm | 2300 | 2700 |
Max. height of workpiece | mm | 1400 | 1400 |
Accessories
Standard accessories：
▪ CNC controller: GSK
▪ Semi-Enclosed Splash Guard
▪ Work Lamp
▪ Alarm Lamp
▪ High Pressured Coolant & Air Gun
▪ Spindle Air Blast & Coolant Nozzle
▪ Rigid Tapping
▪ Auto Lubrication System
▪ USB & RS232
▪ Heat exchanger for electrical cabinet
▪ Editable CF Card Function
▪ Hand Wheel (MPG)
▪ Auto interrupt & Power Off System
▪ Chain Type Chip Conveyor + trolley
▪ Spindle oil cooler
▪ Leveling Blocks & Screws
▪ Tool & Tool Box
▪ Operation manual
▪ Semi-Enclosed Splash Guard
▪ Work Lamp
▪ Alarm Lamp
▪ High Pressured Coolant & Air Gun
▪ Spindle Air Blast & Coolant Nozzle
▪ Rigid Tapping
▪ Auto Lubrication System
▪ USB & RS232
▪ Heat exchanger for electrical cabinet
▪ Editable CF Card Function
▪ Hand Wheel (MPG)
▪ Auto interrupt & Power Off System
▪ Chain Type Chip Conveyor + trolley
▪ Spindle oil cooler
▪ Leveling Blocks & Screws
▪ Tool & Tool Box
▪ Operation manual
Optional accessories：
▪ FANUC 0i MF/ SIEMENS 828D

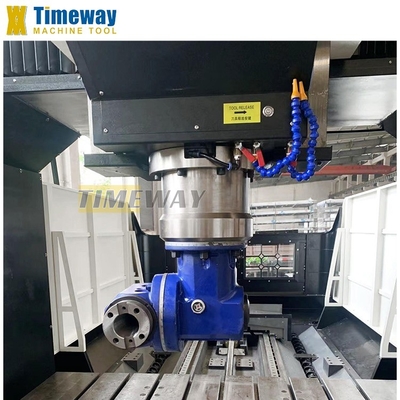

▪ Special milling head
▪ Special milling head
▪ Circular Coolant Nozzle
▪ Coolant through spindle (CTS)
▪ Spindle oil cooler
▪ Auto. Tool length measurement system
▪ Auto. Workpiece measurement systems
▪ Coolant through spindle (CTS)
▪ Spindle oil cooler
▪ Auto. Tool length measurement system
▪ Auto. Workpiece measurement systems
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
