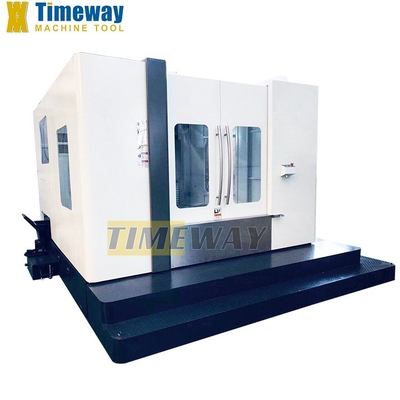

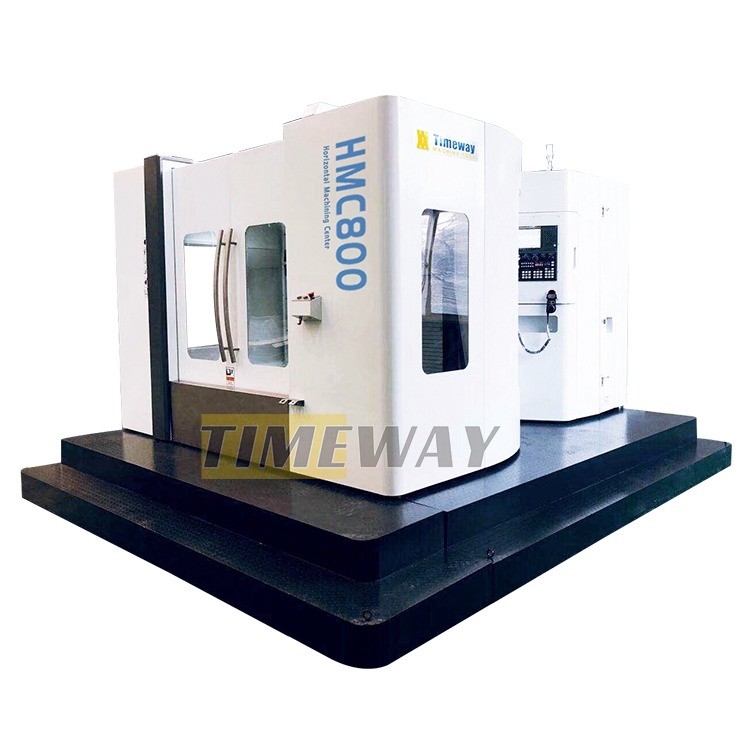

15 T Weight HMC800 3 Axis CNC Milling Machine for Metal Machining Horizontal Design
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $69,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Horizontal |
| Dimension(L*W*H): | 6200*4800*3800 | Weight (T): | 15 T |
| Table Size (mm): | 800*800 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1600 |
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 1100 |
| Positioning Accuracy (mm): | 0.008 | Repeatability (X/Y/Z) (mm): | 0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 2500 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 40 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Horizontal CNC Milling Machine |
| Machine Type: | Horizontal Machine Centers | Model: | HMC800 |
| CNC Controller: | Fanuc Siemens Syntec KND GSK | Color: | Customer's Requirement |
| Worktable Size: | 800*800 | After-sales Service Provided: | 1 Year |
| Spindle Speed: | 6000 Rpm | X/Y/Z Axis Travel: | 1600/1000/1100mm |
| Machine Weight: | 15000kg | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining, Advertising Company |
| Showroom Location: | Saudi Arabia, Pakistan, Russia, Thailand, South Korea, Chile, South Africa | Core Components: | Motor |
| Port: | China Port | ||
Product Description
Products Description
Specification
Specification | Unit | HMC500 | HMC630 | HMC800 |

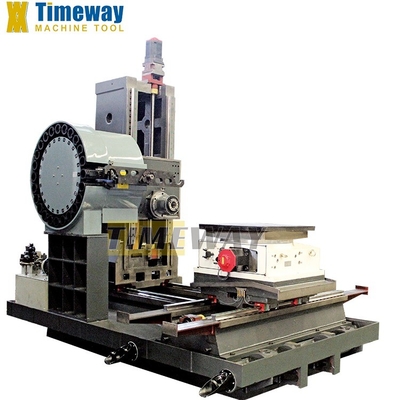

Machine structure | - | Positive T-type | Positive T-type | Positive T-type |
X-axis travel | mm | 800 | 1100 | 1600 |
Y-axis travel | mm | 800 | 800 | 1000 |
Z-axis travel | mm | 800 | 1100 | 1100 |
B-axis servo motor torque(FANUC) | - | Bis12 | Bis22 | Bis22 |
Table size | mm | 500x500 | 630x630 | 800x800 |
Table indexing | ° | 1°x360 | 1°x360 | 1°x360 |
T-slots (No./width/pitch) | - | 5-18-100 | 5-18-100 | 6-22-125 |
Table rotation speed | rpm | 16.6 | 16.6 | 11.1 |
Loading capacity | kg | 800 | 1500 | 2500 |
Locking force(35kg/cm2) | kg/m | 5000 | 5000 | 5000 |
Distance spindle center to table | mm | 50-850 | 50-850 | 0-1180 |
Distance spindle nose to table center | mm | 125-925 | 125-1225 | 180-1180 |

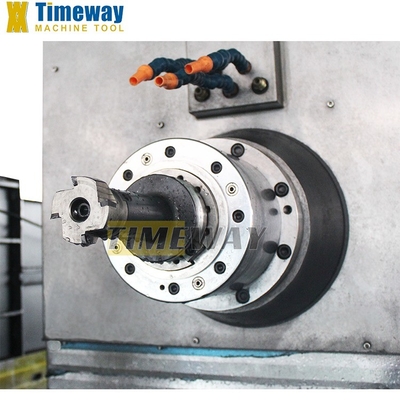

Spindle taper | - | BT40 | BT50 | BT50 |
Spindle speed | rpm | 8000 | 6000 | 6000 |
X/Y/Z-axis servo motor (FANUC) | - | Bis30/Bis30/Bis30 | Bis30/Bis30/Bis30 | Bis40/Bis40/Bis40 |
X/Y/Z-axis cutting feed speed | mm/min | 1-8000 | 1-8000 | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/24 | 24/24/24 | 24/12/18 |
X/Y/Z-axis rails type | - | Linear | X/Z:Linear; Y: sliding | X/Z:Linear; Y: sliding |
X/Y/Z-axis positioning accuracy | mm | 0.008 | 0.008 | 0.008 |
X/Y/Z-axis repositioning accuracy | mm | 0.005 | 0.005 | 0.005 |
B-axis positioning accuracy | '' | 10'' | 10'' | 10'' |

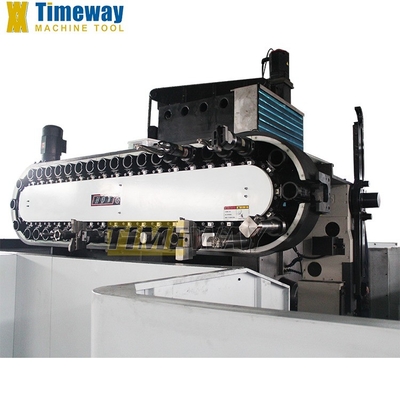

ATC capacity (style) | tools | 24(Disc) | 24(Disc) | 40(Chain) |
Tool change time (tool to tool) | sec | 2.7 | 5 | 5 |
Max. tool weight | kg | 8 | 18 | 20 |
Max. tool diameter | mm | 78/125 | 112/200 | 125/230 |
Max. tool length | mm | 300 | 300 | 300 |
Power supply | Kva | 30 | 40 | 50 |
Air pressure require | kg/cm2 | 8 | 8 | 8 |
Machine weight | kg | 9500 | 12000 | 12000 |
Machine dimensions (LxWxH) | mm | 3800x3200x3280 | 4860×3600×3460 | 6200×4800×3800 |
Accessories
· SIEMENS 808D control · Manual pulse generator (MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · NC rotary table · Heat exchanger · Tool & tool box · Operator manual(English) | · ZF or BF reducer · Circular coolant nozzle · Coolant through spindle (CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. tool length measurement system · Auto. workpiece measurement system · Chip conveyor (opt.: sprial type/chain type) |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
