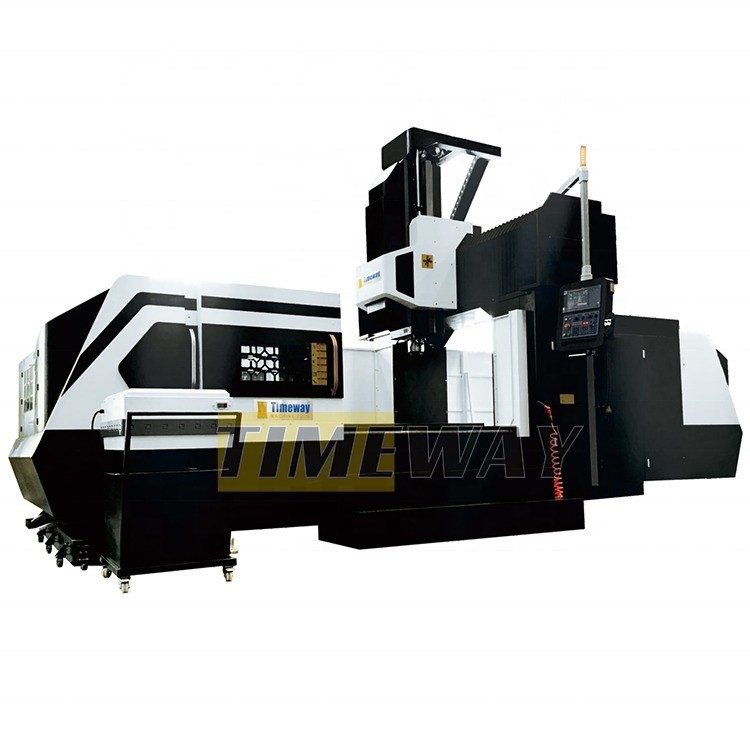

600mm Table Travel Z GMC1000 Gantry Type Machining Center for Heavy Duty Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $200,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Gantry |
| Dimension(L*W*H): | 3500x2400x3200 Mm | Weight (T): | 10 KG |
| Table Size (mm): | 820x1300 | Table Travel (X) (mm): | 1000 |
| Table Travel (Y) (mm): | 1250 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Max. Table Load(kg): | 10 Kg |
| Feed Speed(mm/min): | 0 - 10000 Mm/min | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Heavy Duty |
| Spindle Bore(mm): | 150 | Cutting Torque: | 18 N.m |
| Rapid Feed Speed(mm/min): | 0 - 20000 Mm/min | X-axis Travel: | 1000mm |
| Y/Z-axis Travel: | 1250/600mm | Loading Capacity: | 800kg |
| Gantry Width: | 1050mm | Table Width: | 820mm |
| Table Length: | 1300mm | Main Motor Power: | 11/15kw |
| ATC Capacity (style): | 24(Disc) | Machine Weight: | 10tons |
| Keywords: | Gantry Machining Center | ||
Product Description
Product Description
Gantry Machining Center
Features：

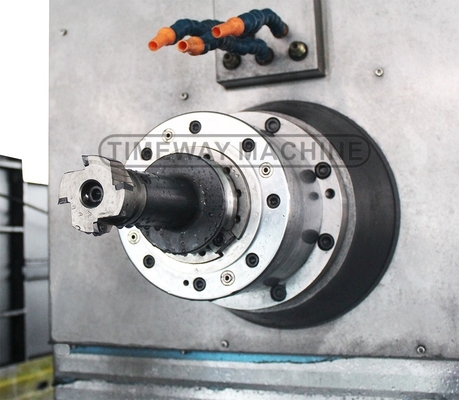

Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term. X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway; High-precision, high-speed, strong cutting and high rigid. Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool. For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.
Specification
Specification | Unit | GMC1000 |
Table width | mm | 900 |
Table length | mm | 1300/1600/1800/2000/2200 |
Cross travel (Y) | kg | 1000 |
Vertical travel (Z) | mm | 600 |
Gantry width | mm | 1400 |
Max. height of workpiece | mm | 680 |
Machine width & height | kw | 2700*3300 |
Accessories
Standard accessories：
1. Resin sand casting
2. X, Y rails adopts imported linear guideway,Z rail is quenching -plastic sliding guide rail pair

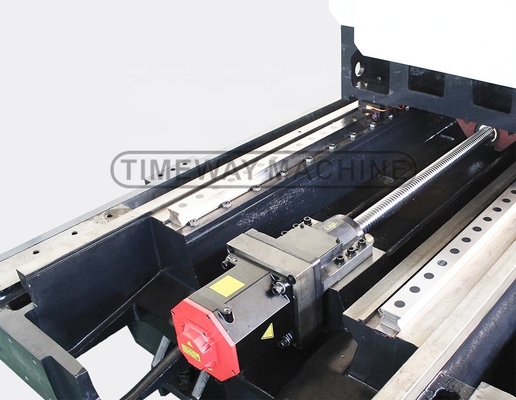

3. Imported rolling screw, rack, gear box
4. X rail adopt stainless steel telescopic cover,
Y rail adopts plastic accordion cover
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head
6. Taiwan production pneumatic cylinder
7. Taiwan ATC, carousel type, disc type,chain type are available as option
8. Imported bearings for leadscrews
9. Famous brand coupling
10. Headstock balancing system is Nitrogen balance system as option
11. Work lamp
12. Pilot lamp
13. USB and LAN interface
14. Manual pulse generator (MPG)
15. Centralized automatic lubrication system
16. Cooling system
17. Heat exchanger for electrical cabinet
18. Leveling blocks & bolts
19. Toolbox and tools
20. Double spiral chip conveyor
21. CNC controller: KND,GSK, HNC (China) SIEMENS, FANUC,MITSUBISHI, FAGOR,etc
2. X, Y rails adopts imported linear guideway,Z rail is quenching -plastic sliding guide rail pair
3. Imported rolling screw, rack, gear box
4. X rail adopt stainless steel telescopic cover,
Y rail adopts plastic accordion cover
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head
6. Taiwan production pneumatic cylinder
7. Taiwan ATC, carousel type, disc type,chain type are available as option
8. Imported bearings for leadscrews
9. Famous brand coupling
10. Headstock balancing system is Nitrogen balance system as option
11. Work lamp
12. Pilot lamp
13. USB and LAN interface
14. Manual pulse generator (MPG)
15. Centralized automatic lubrication system
16. Cooling system
17. Heat exchanger for electrical cabinet
18. Leveling blocks & bolts
19. Toolbox and tools
20. Double spiral chip conveyor
21. CNC controller: KND,GSK, HNC (China) SIEMENS, FANUC,MITSUBISHI, FAGOR,etc
Optional accessories：
1. Special milling head: Lengthen milling head, right angle milling head, universal milling head
2. Circular Coolant Nozzle
3. Coolant through spindle (CTS)
4. Spindle oil cooler
5. Air conditioner (A/C) for electrical cabinet
6. Auto. Tool length measurement system
7. Auto. Workpiece measurement systems
8. Chain type chip conveyor
2. Circular Coolant Nozzle
3. Coolant through spindle (CTS)
4. Spindle oil cooler
5. Air conditioner (A/C) for electrical cabinet
6. Auto. Tool length measurement system
7. Auto. Workpiece measurement systems
8. Chain type chip conveyor
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Exhibition&Training
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Company Introduction
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
