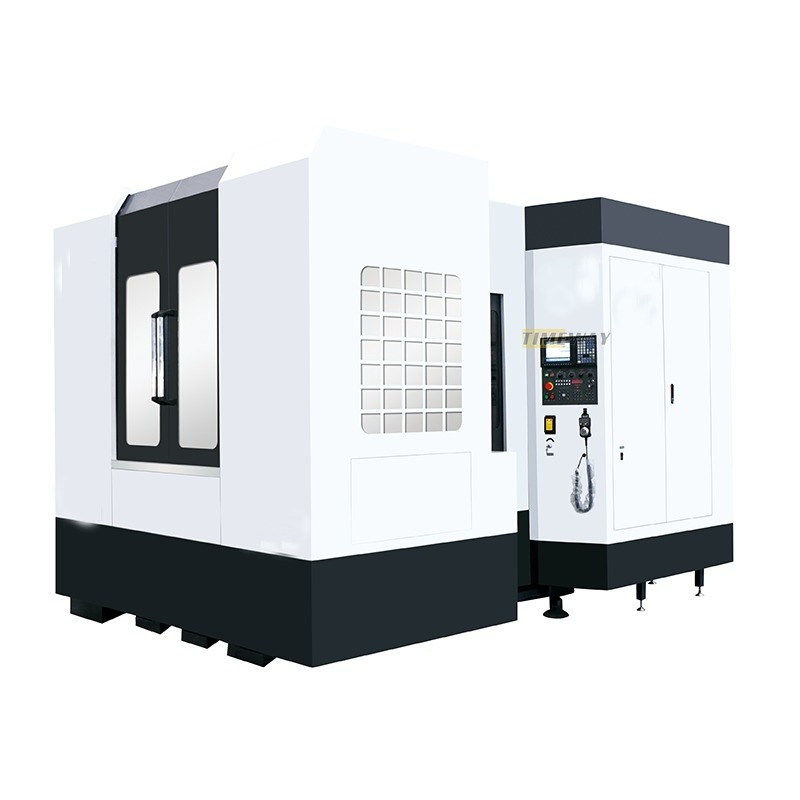

Max. Table Load of 950 kg 3-Axis HMC500D CNC Milling Machine for Machining Center
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,860.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT30 |
|---|---|---|---|
| No. Of Spindles: | 1 | Type: | Horizontal |
| Dimension(L*W*H): | 4285*3120*3280 | Weight (T): | 1.1 T |
| Table Size (mm): | 700*630 | CNC Control System: | FANUC, MITSUBISHI, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1050mm |
| Table Travel (Y) (mm): | 750mm | Table Travel (Z) (mm): | 900mm |
| Positioning Accuracy (mm): | ± 0.005/300mm | Repeatability (X/Y/Z) (mm): | ± 0.005 |
| Spindle Motor Power(kW): | 15/18.5kw | Max. Table Load(kg): | 950 Kg |
| Min. Time Of Tool Change(s): | 4 | Tool Magazine Capacity: | 16, 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | 380v | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Machining Center |
| Machine Type: | Horizontal Machine Centers | Processing: | High Accuracy High Speed |
| Precision: | High Precision Machining Center | Control System: | SIEMENS GSK FANUC (optional) |
| Color: | Customers' Request | Function: | Machining Metal |
| Key Word: | CNC Machining Center Vertical | Processing Type: | Metal Material |
| Name: | HMC500D | Showroom Location: | None |
| Core Components: | Gearbox | Applicable Industries: | Manufacturing Plant, Horologe |
| Port: | China Port | ||
Product Description
Products Description
SPECIFICATION | UNIT | HMC500D | HMC630D | HMC800D | ||

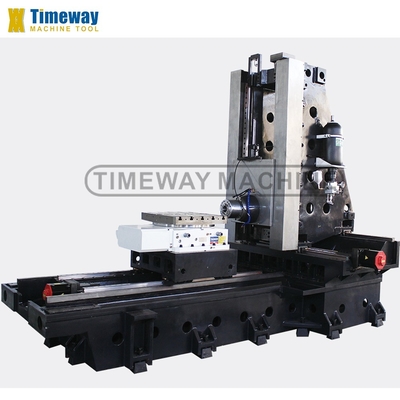

Machine structure | Inverted T-type | |||||
X-axis travel | mm | 740 | 1050 | 1300 | ||
Y-axis travel | mm | 680 | 750 | 1000 | ||
Z-axis travel | mm | 650 | 900 | 1000 | ||
B-axis servo motor torque (FANUC) | bis12 | bis22 | bis22 | |||
Table size | mm | 500×600 | 630×700 | 800×800 | ||

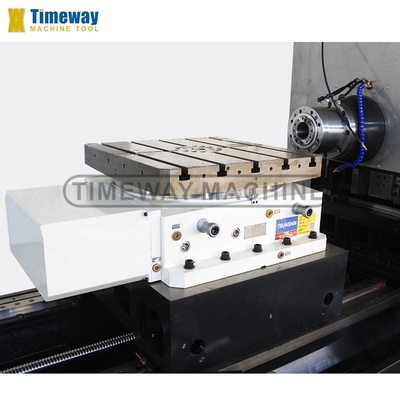

Table indexing | 1°×360 | 1°×360 | 1°×360 | |||
T-slots (No./width/pitch) | 5-18-100 | 5-18-100 | 6-22-125 | |||
Table rotation speed | rpm | 16.6 | 11.1 | 11.1 | ||
Loading capacity | kg | 600 | 950 | 1500 | ||
Locking force (35kg /cm2) | kg/m | 5000 | 5000 | 5000 | ||
Distance spindle center to table | mm | 120-800 | 120-870 | 120-1120 | ||
Distance spindle nose to table center | mm | 130-780 | 130-1030 | 200-1200 | ||

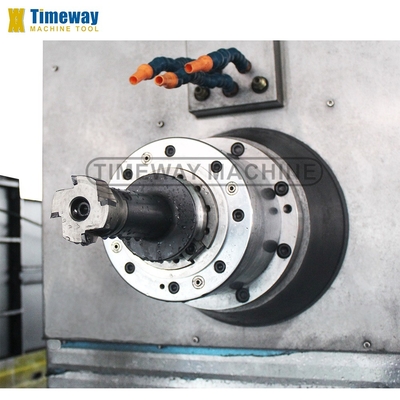

Spindle taper | BT-40 | BT-50 | BT-50 | |||
Spindle speed | rom | 8000 | 6000 | 6000 | ||
Main motor power | kw | 11/15 | 15/18.5 | 15/18.5 | ||
X/Y/Z-axis servo motor (FANUC) | Bis30/Bis30/Bis30 | |||||
X/Y/Z-axis cutting feed speed | mm/min | 1-8000 | 1-8000 | 1-8000 | ||
X/Y/Z-axis rapid feed speed | m/min | 24/24/24 | 24/24/24 | 24/24/24 | ||

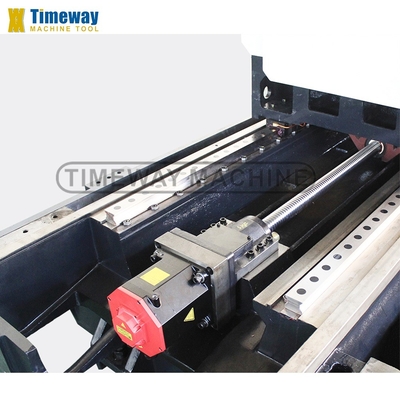

X/Y/Z-axis rails type | Linear | Linear | Linear | |||
X/Y/Z-axis positioning accuracy | mm | ±0.01 | ±0.01 | ±0.01 | ||
X/Y/Z-axis repeat positioning accuracy | mm | ±0.006 | ±0.006 | ±0.006 | ||
B-axis positioning accuracy | ±10° | ±10° | ±10° | |||

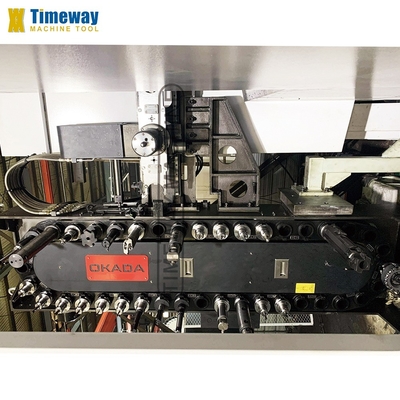

ATC capacity (style) | tools | 24 (Disc) | 24 (Disc) | 40(Chain) | ||
Tool change time (tool to tool) | sec | 2.7 | 5 | 5 | ||
Max. tool weight | kg | 8 | 18 | 20 | ||
Max.tool diameter | mm | 78/125 | 112/ 200 | 125/230 | ||
Max.tool length | mm | 300 | 300 | 300 | ||
Power supply | Kva | 30 | 40 | 50 | ||
Air pressure require | kg/cm2 | 8 | 8 | 8 | ||
Machine weight | kg | 9000 | 11000 | 15000 | ||
Overall dimension (LxWxH) | mm | 3800×3200×3280 | 4860×3600×3460 | 6200×4800×3800 | ||
Machine dimensions (LxWxH) | mm | 3500x2900x3280 | 4285x3120x3280 | 6200×4800×3800 | ||
· SIEMENS 808D control · Manual pulse generator (MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · NC rotary table · Heat exchanger · Tool & tool box · Operator manual(English) | · ZF or BF reducer · Circular coolant nozzle · Coolant through spindle (CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. tool length measurement system · Auto. workpiece measurement system · Chip conveyor (opt.: sprial type/chain type) |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
