HMC630 APC-CNC Horizontal Milling Machine Spindle Taper BT50 Max. Table Load kg 950 kg
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | HMC630 APC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $72,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Range Of Spindle Speed(r.p.m): | 0 - 6000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Heavy Duty | Spindle Taper: | BT50 |
| Table Travel (X) (mm): | 1050 | Table Travel (Y) (mm): | 750 |
| Table Travel (Z) (mm): | 900 | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.006 | Voltage: | 220V/380V |
| Key Selling Points: | High-accuracy, Multifunctional | Weight (KG): | 11000 |
| Warranty: | 1 Year | Max. Table Load(kg): | 950 Kg |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Product Name: | Milling Machine Center Frame |
| After-sales Service Provided: | Online Service | Machine Type: | Machining Center |
| Name: | 3 Axis Milling Machine | Keyword: | Cnc 3 Axis Milling Machine |

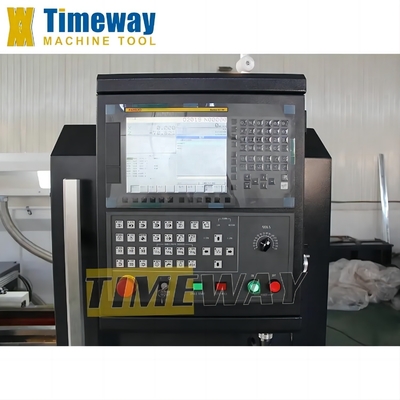

| Precision: | High Precision Machining Center | Controller: | FANUC SIEMENS GSK SYNTEC |
| Application: | Metal Machining | Condition: | New |
| Showroom Location: | Egypt, Canada, Turkey, Italy, France, Viet Nam, Peru, Saudi Arabia, Russia, Spain, South Korea, Chile, Romania, Bangladesh, Nigeria, Uzbekistan | Year: | 2023 |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Advertising Company, Other | Core Components: | Bearing, Motor, Gear, Gearbox, Other |
| Port: | China Port | ||
Product Description
Products Description

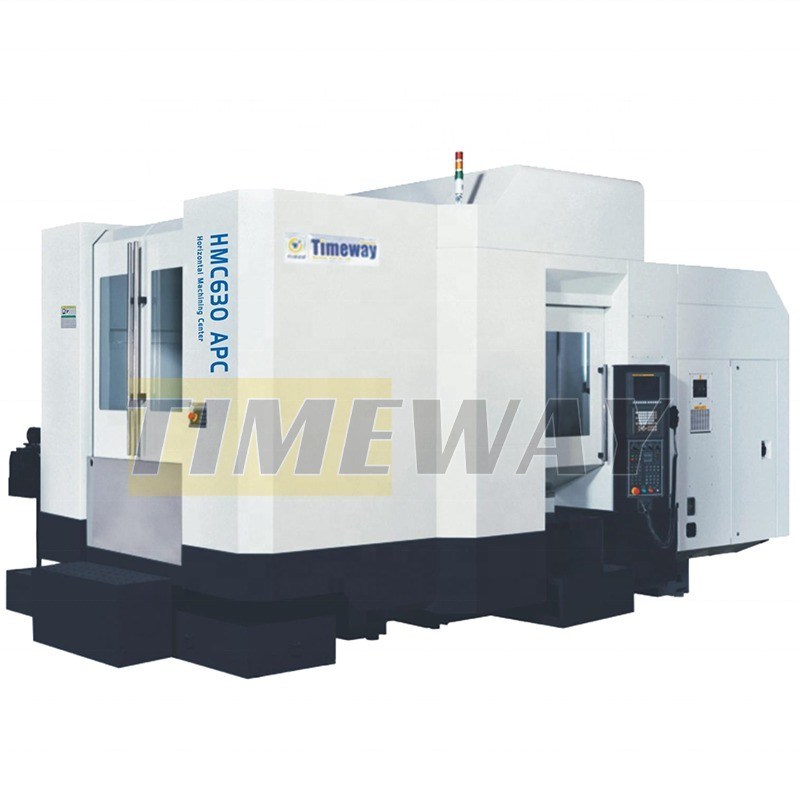

HMC630 APC
Horizontal Machining Center:
Specification | Unit | HMC630APC |
Wortable size | mm | 630x630 |
Worktable number | pcs | 2 |
Worktable indexing | ° | 0.001° |
T-slot of worktable (No.-sizexdistance) | - | 24xM16 |
Max. swing of workpiece | mm | 820 |
Worktable rotation speed (B) | rpm | 10 |
Worktable gear ratio | - | 160 |
Pallet exchange gear ratio | - | 240 |
Pallet exchange style | - | Rotating type |
Pallet exchange time | s | 24 |
Worktable loading capacity | kg | 950 |
X axis travel | mm | 1050 |
Y axis travel | mm | 750 |
Z axis travel | mm | 900 |
Distance from spindle center to worktable | mm | 0-750 |
Distance from spindle nose to wortable center | mm | 130-1030 |
Spindle taper | - | BT50 |
Max. spindle speed | rpm | 6000 |
ATC style/station | - | 60 (Chain) |
X/Y/Z-axis rapid feed speed | m/min | 45/45/45 |
X/Y/Z-axis guideway type | - | Linear |
X/Y/Z-axis positioning accuracy | mm | 0.01 |
X/Y/Z-axis repositioning accuracy | mm | 0.006 |
B-axis positioning accuracy | " | 10" |
B-axis repositioning accuracy | " | 5" |
Main motor power | kw | 15/22 |
X/Y/Z-axis feed motor torque | NM | 30/30/30 |
B-axis feed motor torque | NM | 12 |
APC servo motor torque | NM | 8 |
Machine weigh | kg | 11000 |
Machine weight | kg | 15000 |
Overall dimension (LxWxH) | mm | 6200×4800×3800 |
