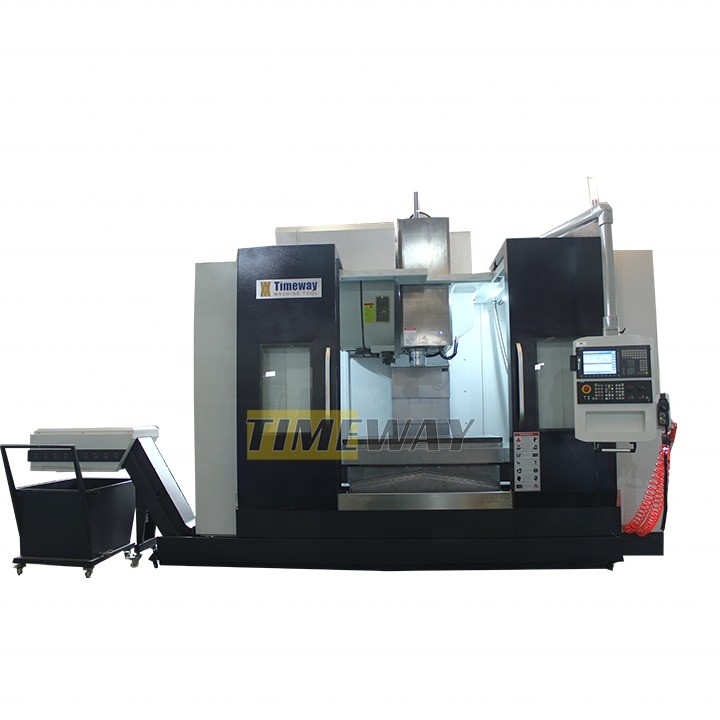

3-Axis VMC1160 VMC1370 VMC1580 VMC1890 CNC Milling Machine Vertical Machining Center
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2350x2100x2300 | Weight (T): | 12 T |
| Table Size (mm): | 320x800 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 1500 |
| Table Travel (Y) (mm): | 800 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | 0.0075 | Repeatability (X/Y/Z) (mm): | 0.005 |
| Range Of Spindle Speed(r.p.m): | 1 - 8000 R.p.m | Spindle Motor Power(kW): | 5.5/7.5 |
| Max. Table Load(kg): | 350 Kg | Min. Time Of Tool Change(s): | 9 |
| Tool Magazine Capacity: | 16, 20 | Key Selling Points: | Automatic |
| Warranty: | 1 Year | Voltage: | 220V/380V |
| Marketing Type: | Hot Product 2023 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Worktable Size (WxL): | 900x1800 | Number Of Axis: | 3/4/5 |
| Loading Capacity: | 1600 | Longitudinal Travel (X): | 1500 |
| Cross Travel (Y): | 800 | Vertical Travel (Z): | 700 |
| Product Name: | 5 Axis Machining Center | Machine Type: | Vertical Machining Center |
| Product Type: | Cnc Metal Milling Machine | Keywords: | Machining Center |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Egypt, United Kingdom, France, Germany, Philippines, Thailand, Morocco, Kenya, Sri Lanka |
| Core Components: | Engine | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description
Vertical Machining Center
MAIN CONFIGURATION & ACCESSORIES:
1.Resin sand casting;
2.X, Y,Z rails are quenching - plastic sliding guide rail pair;
3.X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5.Taiwan production pneumatic cylinder;
6.Taiwan ATC, carousel type and disc type are available as option;
7.Imported bearings for leadscrews;
8. Imported coupling;
9.Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16.Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
1.Resin sand casting;
2.X, Y,Z rails are quenching - plastic sliding guide rail pair;
3.X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5.Taiwan production pneumatic cylinder;

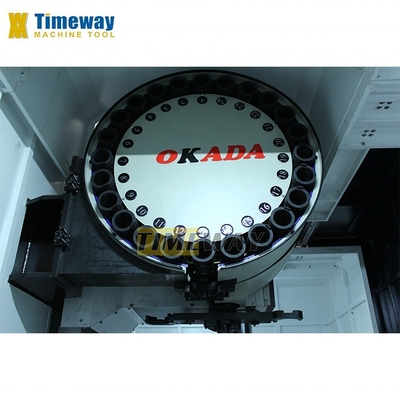

6.Taiwan ATC, carousel type and disc type are available as option;
7.Imported bearings for leadscrews;
8. Imported coupling;
9.Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16.Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
Specification | Unit | VMC1370 | VMC1580 | VMC1690 | VMC1890 |
Worktable size (WxL) | mm | 710x1400 | 800x1700 | 900x1800 | 900x2000 |
T-slot (No./width/pitch) | mm | 5/18/152.5 | 5/22/135 | 5/22/165 | 5/22/165 |
Loading capacity | kg | 1200 | 1500 | 1600 | 1600 |
Longitudinal travel (X) | mm | 1300 | 1500 | 1600 | 1800 |
Cross travel (Y) | mm | 700 | 800 | 900 | 900 |
Vertical travel (Z) | mm | 650 | 700 | 680 | 800 |
Distance from spindle nose to table | mm | 150-800 | 185-885 | 160-840 | 160-960 |
Distance from spindle center to column | mm | 785 | 810 | 950 | 950 |
Spindle taper | - | BT50 | BT50 | BT50 | BT50 |
Spindle speed | rpm | 8000 | 8000 | 6000 | 6000 |
X/Y/Z-axis rapid feed speed | m/min | 12/12/12 | 12/12/12 | 12/12/10 | 12/12/10 |
X/Y/Z-axis feed motor torque | N.m | 23/23/23 | 27/27/27 | 35/35/35 | 40/40/40 |
X/Y/Z-axis positioning accuracy | mm | 0.015 | 0.015 | 0.015 | 0.015 |
X/Y/Z-axis repositioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 |
Main motor power | kw | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 |
Air pressure source | kg/cm2 | 8 | 8 | 8 | 8 |
Power capacity | Kva | 30 | 30 | 35 | 40 |
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | 24 (Disc) | 24 (Disc) |
Guideway type | - | Sliding (Y-axis four rails) | Sliding (Y-axis four rails) | Sliding (Y-axis four rails) | Sliding (Y-axis four rails) |
Machine weight | kg | 11000 | 14000 | 15000 | 15500 |
Machine dimensions (LxWxH) | mm | 3820x2560x3100 | 4200x3520x3055 | 4280x3700x3220 | 4590x3960x3440 |
