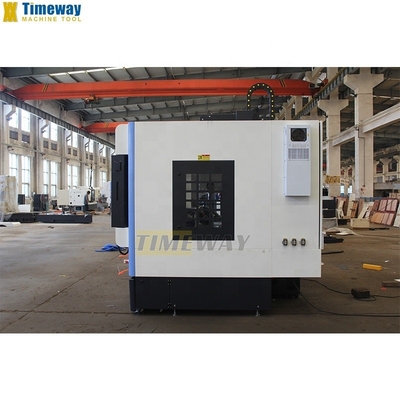

High Accuracy Vertical Machining Center CNC Milling Machine 550 mm Vertical Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,900.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 2800*2350*2800 Mm | Weight (T): | 5.2 T |

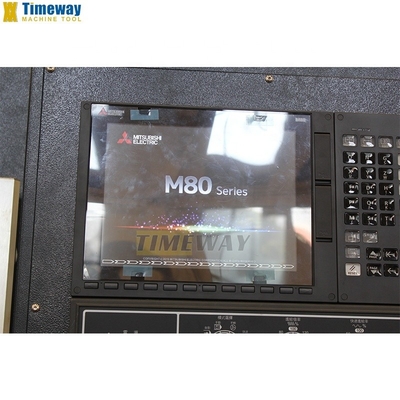

| Table Size (mm): | 1000*550 Mm | CNC Control System: | GSK, FANUC, MITSUBISHI, Siemens |
| Number Of Axes: | 4, 5, 7 | Table Travel (X) (mm): | 800 Mm |
| Table Travel (Y) (mm): | 550 Mm | Table Travel (Z) (mm): | 550 Mm |
| Positioning Accuracy (mm): | ±0.002 Mm | Repeatability (X/Y/Z) (mm): | ±0.001 Mm |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 Kw |
| Max. Table Load(kg): | 500 Kg | Min. Time Of Tool Change(s): | 6 |

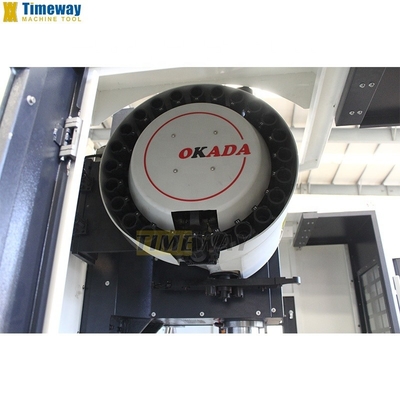

| Tool Magazine Capacity: | 24 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Voltage: | 220/380 V |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Vertical Machining Center | Machine Type: | CNC |
| Keywords: | Milling Machine | Model: | VMC855G |
| Worktable Size (L*W): | 1000*550 Mm | Loading Capacity: | 500 Kg |
| Longitudinal Travel (X): | 800 Mm | Cross Travel (Y): | 550 Mm |
| Vertical Travel (Z): | 550 Mm | Guideway Type: | Linear |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Turkey, Philippines, Brazil, Peru, Indonesia, Mexico, Russia, Thailand, Colombia |
| Core Components: | Motor | Port: | China Port |
Product Description
Products Description

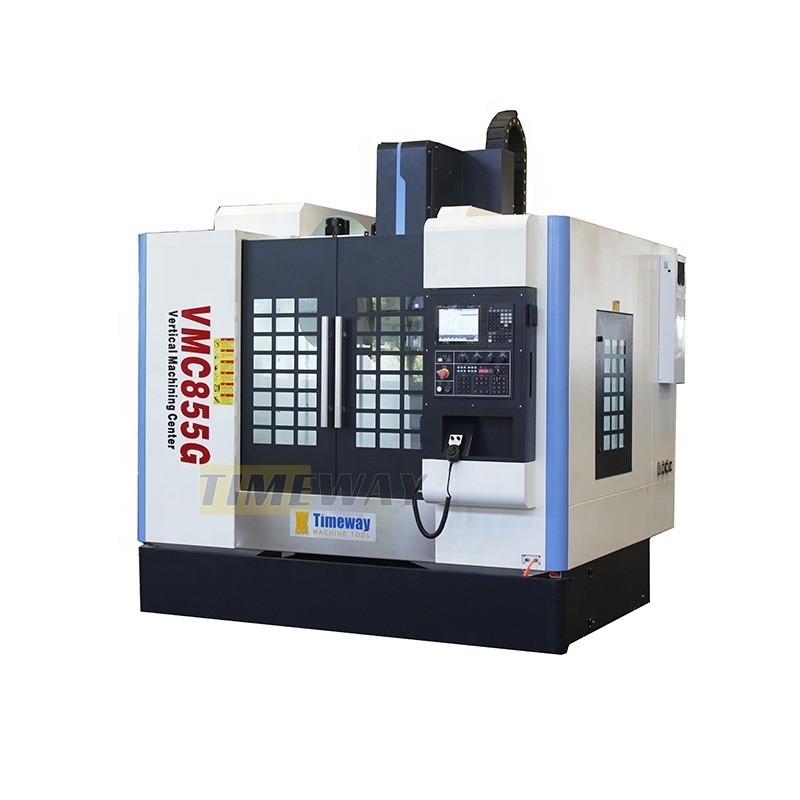

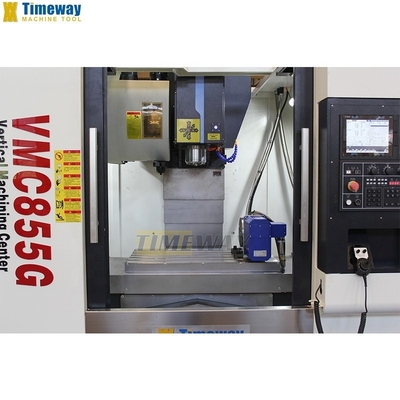

Vertical Machining Center VMC855G
Technical Parameter
Specification | Unit | VMC650G | VMC850G | VMC855G |
Worktable size (LxW) | mm | 1000×420 | 1000×500 | 1000×550 |
T-slot (No./width/pitch) | mm | 5-18-80 | 5-18-100 | 5-18-100 |
Loading capacity | kg | 400 | 500 | 500 |
Longitudinal travel (X) | mm | 700 | 800 | 800 |
Cross travel (Y) | mm | 450 | 500 | 550 |
Vertical travel (Z) | mm | 450 | 500 | 550 |
Spindle taper | - | BT-40 | BT-40 | BT-40 |
Spindle speed | rpm | 8000 | 8000 | 8000 |
Main motor power | kw | 7.5/11 | 7.5/11 | 7.5/11 |
Air pressure source | kg/cm2 | 6/8 | 6/8 | 6/8 |
Power capacity | Kva | 18 | 20 | 20 |
Tool magazine capacity | T | 12 (Crousel) | 24 (Disc) | 24 (Disc) |
Guideway type | - | Linear | Linear | Linear |
Machine weight | kg | 3500 | 4200 | 5200 |
Machine dimensions (LxWxH) | mm | 2400×1900×2400 | 2800×2250×2600 | 2800×2350×2800 |
Accessories
· SIEMENS 808D control · Manual pulse generator(MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · Full enclosed splash guard · Heat exchanger · Tool & tool box · Operator manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
