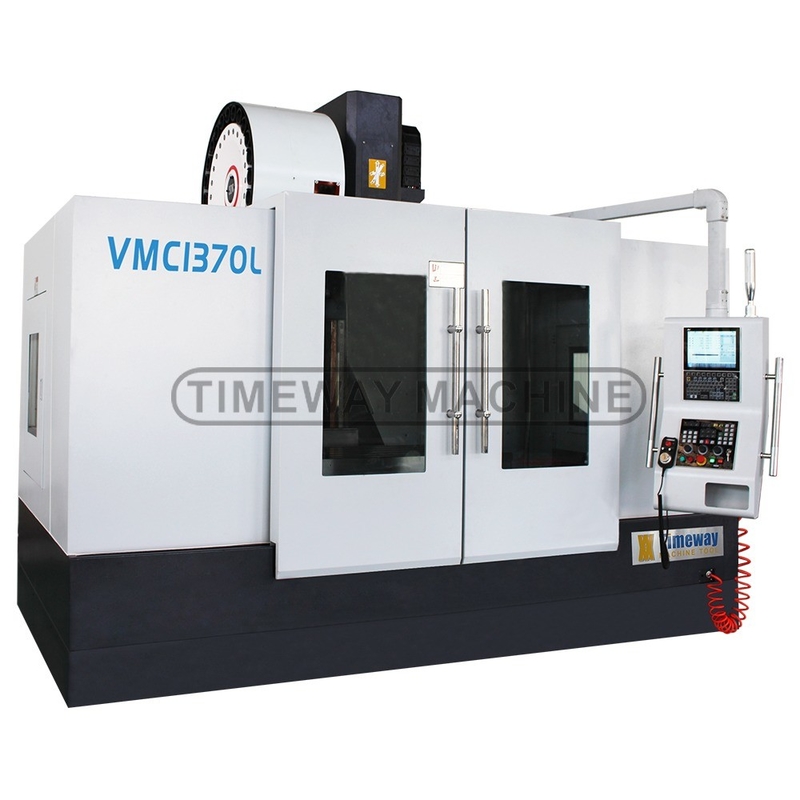

1360x700mm Table Size VMC Heavy Duty CNC Vertical Machining Center with 24-tools ATC
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC/Timeway |
| Model Number: | VMC1370L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $52,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 0 - 8000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | BT40 |
| Table Travel (X) (mm): | 1300 | Table Travel (Y) (mm): | 700 |
| Table Travel (Z) (mm): | 600 | Positioning Accuracy (mm): | 0.008 |
| Repeatability (X/Y/Z) (mm): | 0.005 | Dimension(L*W*H): | 3820*2560*3100 |
| CNC Control System: | FANUC | Key Selling Points: | High-accuracy |
| Weight (KG): | 11000 | Spindle Motor Power(kW): | 15 |
| Warranty: | 1 Year | Max. Table Load(kg): | 14000 Kg |
| Marketing Type: | Hot Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Vertical Milling Machine | Machine Type: | CNC Mill Machine |
| CNC Controller: | Fanuc Siemens Syntec KND GSK | Table Size: | 700*1360mm |
| Model: | VMC1370L | Color: | Cusomer Request |
| Longitudinal Travel: | 1300mm | Cross Travel: | 700mm |
| Vertical Travel: | 600mm | Spindle Speed: | 8000rpm |
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Energy & Mining, Advertising Company |
| Showroom Location: | None | Core Components: | Bearing, Motor, Pump, Gear |
| Port: | China Port | ||
Product Description
Product Description
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification
Specifications | Unit | VMC1370L | VMC1580L | VMC1690L | VMC1890L | |||
Table size | mm | 700x1360 | 800x1700 | 900x1800 | 900x2000 | |||
T-slot (No./width/pitch) | mm | 5/18/122 | 5/22/135 | 5/22/165 | 5/22/165 | |||
Loading capacity | kg | 1200 | 1500 | 1600 | 1600 | |||
Longitudinal travel (X) | mm | 1300 | 1500 | 1600 | 1800 | |||
Cross travel (Y) | mm | 700 | 800 | 900 | 900 | |||
Vertical travel (Z) | mm | 600 | 700 | 600 | 720 | |||
Distance from spindle nose to table | mm | 150-750 | 130-830 | 105-705 | 115-835 | |||
Distance from spindle center to column | mm | 785 | 810 | 950 | 950 | |||
Spindle taper | - | BT50 | BT50 | BT50 | BT50 | |||
Spindle speed | rpm | 8000 | 8000 | 6000 | 6000 | |||
X/Y/Z-axis rapid feed speed | m/min | 24/24/18 | 24/24/18 | 20/20/15 | 20/20/15 | |||
X/Y/Z-axis feed motor torque | N.m | 23/23/23 | 27/27/27 | 35/35/35 | 40/40/40 | |||
X/Y/Z-axis positioning accuracy | mm | 0.008 | 0.008 | 0.008 | 0.008 | |||
X/YZ-axis repetability accuracy | mm | 0.005 | 0.005 | 0.005 | 0.005 | |||
Main motor power | kw | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | |||
Air pressure source | kg/cm2 | 8 | 8 | 8 | 8 | |||
Total power | Kva | 30 | 30 | 35 | 40 | |||
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | 24 (Disc) | 24 (Disc) | |||
Guideway type | - | X: Linear; Y: Linear, four rails; Z: Slinding | ||||||
Machine Details
========================

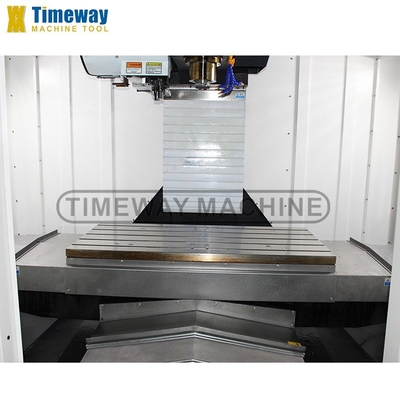

>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.

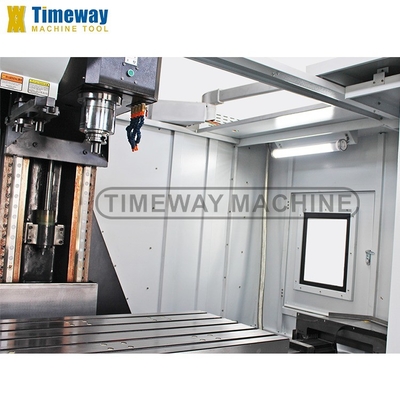

>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================

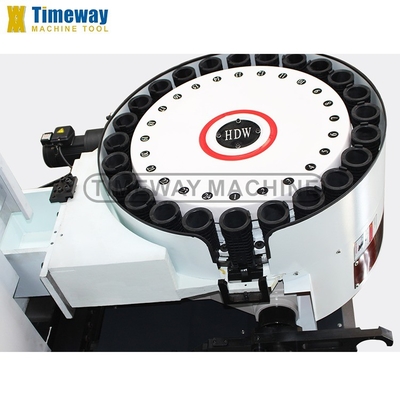

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================

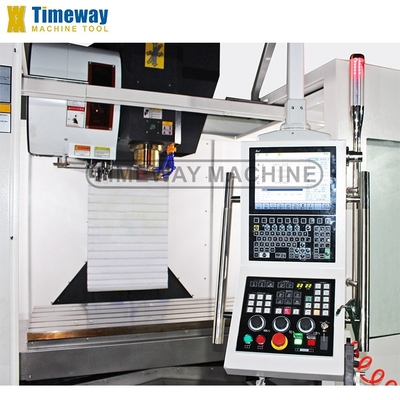

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Accessories
Standard accessories:
√ FANUC 0i MF CNC system
√ X/Y: Linear guide rails, Z: Sliding guide rail
√ Taiwan BT50 spindle, 6000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Taiwan BT50 spindle, 6000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories:
_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
