Table Size 900x1800mm VMC1690L Vertical Machining CNC Center with Advanced Technology
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,650.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 4200*3520*3100 | Weight (T): | 14 KG |
| Table Size (mm): | 1800*900 | Table Travel (X) (mm): | 1600 |
| Table Travel (Y) (mm): | 900 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Max. Table Load(kg): | 1600 Kg |
| Feed Speed(mm/min): | 0 - 2000 Mm/min | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Multifunctional |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | 100 | Cutting Torque: | 125 N.m |
| Rapid Feed Speed(mm/min): | 0 - 2000 Mm/min | Table Size: | 900x1800mm |
| T-slot (No./width/pitch): | 5/22/165mm | Loading Capacity: | 1600kg |
| Longitudinal Travel (X): | 1600mm | Cross Travel (Y): | 900mm |
| Vertical Travel (Z): | 600mm | Distance From Spindle Nose To Table: | 105-705mm |
| Distance From Spindle Center To Column: | 950mm | Spindle Speed: | 6000rpm |
Product Description
Product Description

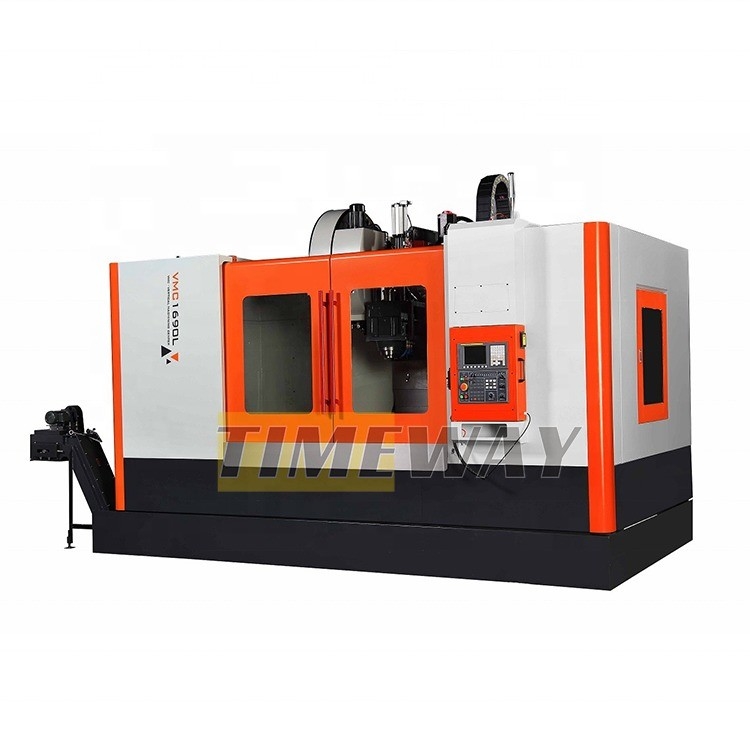

CNC Vertical Machining Center:VMC1690L
X/Y:Linear guideway Z:Sliding Guideway
Specification
Specifications | Unit | VMC1690L |
Table size | mm | 900x1800 |
T-slot (No./width/pitch) | mm | 5/22/165 |
Loading capacity | kg | 1600 |
Longitudinal travel (X) | mm | 1600 |
Cross travel (Y) | mm | 900 |
Vertical travel (Z) | mm | 600 |
Distance from spindle nose to table | mm | 105-705 |
Distance from spindle center to column | mm | 950 |
Spindle taper | - | BT50 |
Spindle speed | rpm | 6000 |
X/Y/Z-axis rapid feed speed | m/min | 20/20/15 |
X/Y/Z-axis feed motor torque | N.m | 35/35/35 |
X/Y/Z-axis positioning accuracy | mm | 0.008 |
X/YZ-axis repetability accuracy | mm | 0.005 |
Main motor power | kw | 15/18.5 |
Air pressure source | kg/cm2 | 8 |
Total power | Kva | 35 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | X: Linear; Y: Linear, four rails; Z: Slinding |
Machine weight | kg | 14000 |
Machine dimensions (LxWxH) | mm | 4200×3520×3100 |
Accessories
Standard accessories:

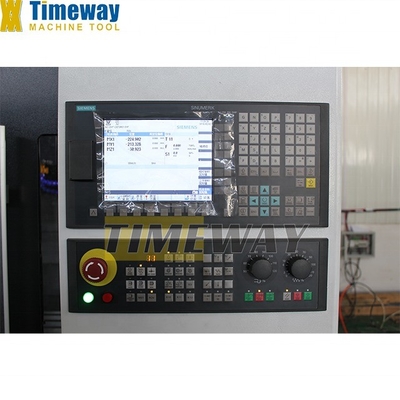

* SIEMENS 808D control
* Manual pulse generator(MPG)
* USB &LAN interface
* Work lamp
* Pilot lamp
* Cooling system
* Auto. lubrication system
* Leveling wedge and bolts
* Full enclosed splash guard

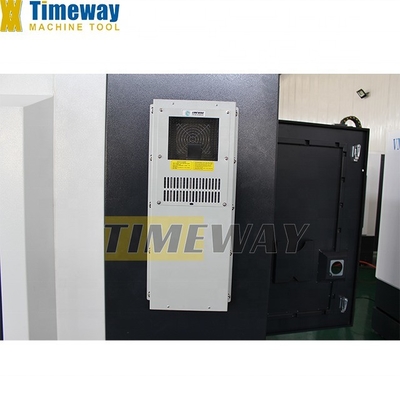

* Heat exchanger
* Tool & tool box
* Operator manual(English)
* Manual pulse generator(MPG)
* USB &LAN interface
* Work lamp
* Pilot lamp
* Cooling system
* Auto. lubrication system
* Leveling wedge and bolts
* Full enclosed splash guard
* Heat exchanger
* Tool & tool box
* Operator manual(English)
Optional accessories:
· 4th axis wring
· NC rotary table
· Direct driven spindle
· Circular coolant nozzle
· Coolant through spindle(CTS)
· Spindle oil cooler
· Air conditioner for electrical cabinet
· Auto. measurement system
· Screw type chip conveyor
· Chain type chip conveyor
· Safety door
· Oil skimmer
· NC rotary table
· Direct driven spindle
· Circular coolant nozzle
· Coolant through spindle(CTS)
· Spindle oil cooler
· Air conditioner for electrical cabinet
· Auto. measurement system
· Screw type chip conveyor
· Chain type chip conveyor
· Safety door
· Oil skimmer
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Customer Visited
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Company Introduction
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.

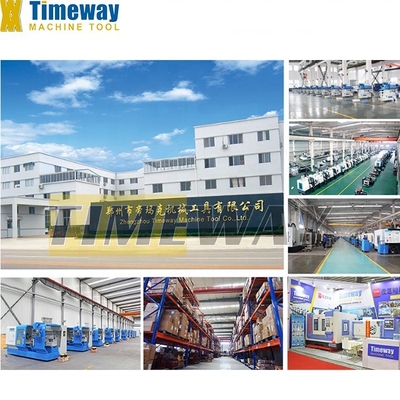

Factory Display：
