Horizontal CNC Milling Machine for Metal Components Production Machining Center
Product Details:
| Place of Origin: | Hubei, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $24,560.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Features: | High Precision Economical | Condition: | New |
|---|---|---|---|
| Spindle Taper: | BT50 | No. Of Spindles: | Single |
| Type: | Horizontal | Dimension(L*W*H): | 3500*2900*3280 |
| Weight (T): | 18 T | Table Size (mm): | 500*500 |
| CNC Control System: | FANUC | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 1400 Mm | Table Travel (Y) (mm): | 1000 Mm |
| Table Travel (Z) (mm): | 500 Mm | Positioning Accuracy (mm): | 0.012 |
| Repeatability (X/Y/Z) (mm): | 0.008 | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
| Spindle Motor Power(kW): | 25 | Max. Table Load(kg): | 600 Kg |
| Feed Speed(mm/min): | 20000 - 50000 Mm/min | Min. Time Of Tool Change(s): | 3 |
| Tool Magazine Capacity: | 12, 24 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Voltage: | 380V 50HZ /220V 60 HZ |
| Marketing Type: | Hot Product 2021 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | 3-axis Vertical Cnc Machining Center | Machine Type: | VMC CNC Milling Machine |
| Application: | Metal Machining Center | Processing: | Metal Vertical Milling Machine |
| Keywords: | Vmc Machine Center | Product Type: | Cnc 3 Axis Machine |
| Precision: | High Precision Machining Center | Function: | Machining Metal |
| Control System: | SIEMENS GSK FANUC (optional) | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works |
| Showroom Location: | Egypt, Turkey, Italy, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Australia | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 45 | Port: | China Port |
Product Description
Products Description

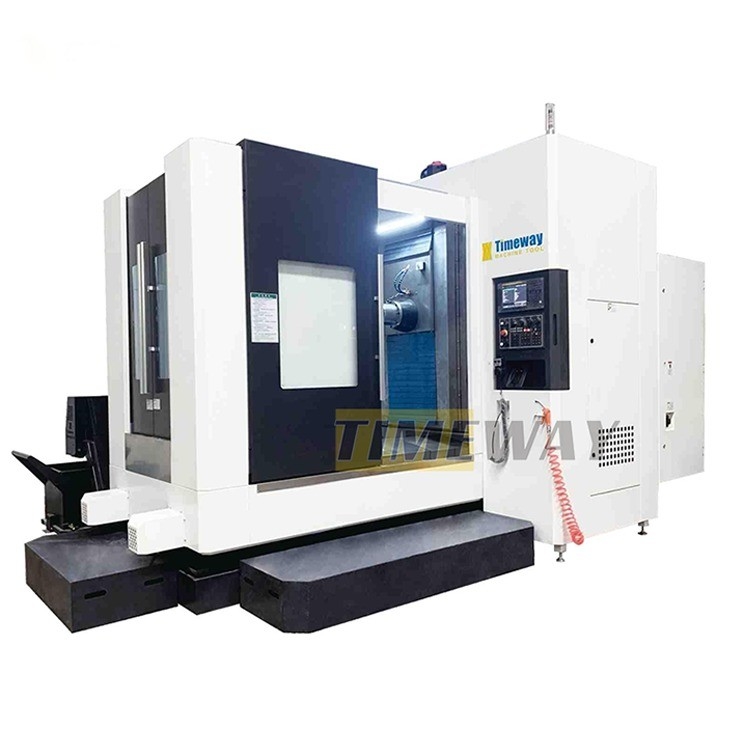

CNC Horizontal Machining Center
Specification | Unit | HMC500APC | HMC630APC | HMC800APC |
Machine structure | - | Positive T-type | Positive T-type | Positive T-type |
X-axis travel | mm | 800 | 1100 | 1600 |
Y-axis travel | mm | 800 | 800 | 1000 |
Z-axis travel | mm | 800 | 1100 | 1100 |
B-axis servo motor torque(FANUC) | - | Bis12 | Bis22 | Bis22 |

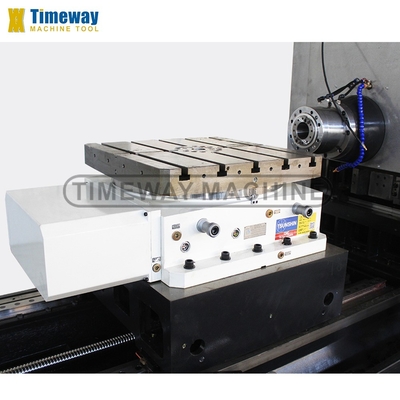

Table size | mm | 500x500 | 630x630 | 800x800 |
Table indexing | ° | 1°x360 | 1°x360 | 1°x360 |
T-slots (No./width/pitch) | - | 5-18-100 | 5-18-100 | 6-22-125 |
Table rotation speed | rpm | 16.6 | 16.6 | 11.1 |
Loading capacity | kg | 800 | 1500 | 2500 |
Locking force(35kg/cm2) | kg/m | 5000 | 5000 | 5000 |
Distance spindle center to table | mm | 50-850 | 50-850 | 0-1180 |
Distance spindle nose to table center | mm | 125-925 | 125-1225 | 180-1180 |

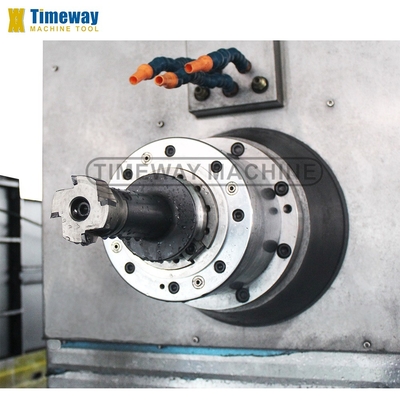

Spindle taper | - | BT40 | BT50 | BT50 |
Spindle speed | rpm | 8000 | 6000 | 6000 |

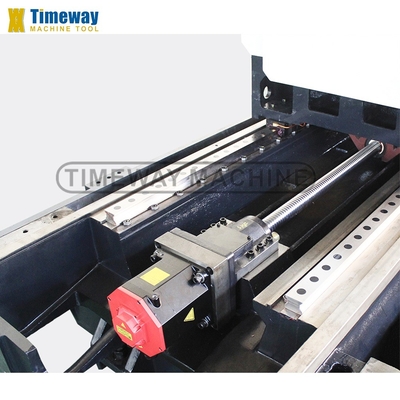

X/Y/Z-axis servo motor (FANUC) | - | Bis30/Bis30/Bis30 | Bis30/Bis30/Bis30 | Bis40/Bis40/Bis40 |
X/Y/Z-axis cutting feed speed | mm/min | 1-8000 | 1-8000 | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/24 | 24/24/24 | 24/12/18 |
X/Y/Z-axis rails type | - | Linear | X/Z:Linear; Y: sliding | X/Z:Linear; Y: sliding |
X/Y/Z-axis positioning accuracy | mm | 0.008 | 0.008 | 0.008 |
X/Y/Z-axis repositioning accuracy | mm | 0.005 | 0.005 | 0.005 |
B-axis positioning accuracy | '' | 10'' | 10'' | 10'' |

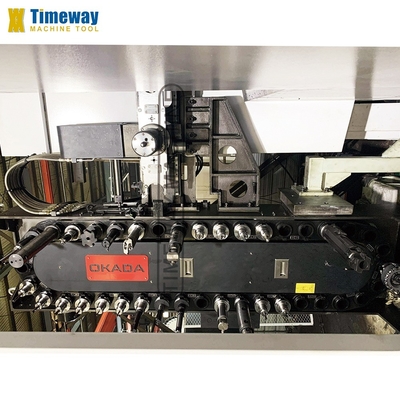

ATC capacity (style) | tools | 24(Disc) | 24(Disc) | 40(Chain) |
Tool change time (tool to tool) | sec | 2.7 | 5 | 5 |
Max. tool weight | kg | 8 | 18 | 20 |
Max. tool diameter | mm | 78/125 | 112/200 | 125/230 |
Max. tool length | mm | 300 | 300 | 300 |
Power supply | Kva | 30 | 40 | 50 |
Air pressure require | kg/cm2 | 8 | 8 | 8 |
Machine weight | kg | 9500 | 12000 | 12000 |
Machine dimensions (LxWxH) | mm | 3800x3200x3280 | 4860×3600×3460 | 6200×4800×3800 |

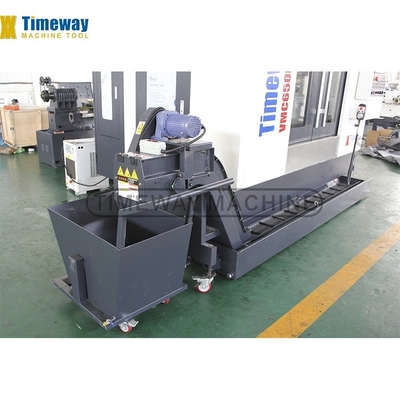

· SIEMENS 808D control · Manual pulse generator (MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · NC rotary table · Heat exchanger · Tool & tool box · Operator manual(English) | · ZF or BF reducer · Circular coolant nozzle · Coolant through spindle (CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. tool length measurement system · Auto. workpiece measurement system · Chip conveyor (opt.: sprial type/chain type) |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
