Equipped with 4th axis for machining round pieces.
Equipped with B+C axis cradle type NC rotary table.
Equipped with A+C axis NC rotary table.
Equipped with swivel head (B-axis) + NC rotary table (C-axis).
 |
Top Rated Metal CNC Milling Machine with 600mm Table Travel and 8000rpm Spindle Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3200x2560x2960 | Weight (T): | 6.2 T |
| Table Size (mm): | 1200*600mm | CNC Control System: | FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 1100mm |
| Table Travel (Y) (mm): | 600mm | Table Travel (Z) (mm): | 600mm |
| Positioning Accuracy (mm): | ±0.003 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 11/15 |
| Max. Table Load(kg): | 800 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Marketing Type: | New Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Vertical Machining Center |
| Machine Type: | VMC CNC Milling Machine | Control System: | SIEMENS GSK KND FANUC MITSUBISHI(optional) |
| Color: | Customer's Requirement | After-sales Service Provided: | 1 Year |
| Spindle Speed: | 8000rpm | X Axis Travel: | 1100mm |
| Y Axis Travel: | 600mm | Z Axis Travel: | 600mm |
| Model: | VMC1160G | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining, Advertising Company |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Germany, Brazil, Russia, South Korea, Romania | Core Components: | Motor |
Product Description
Product Description

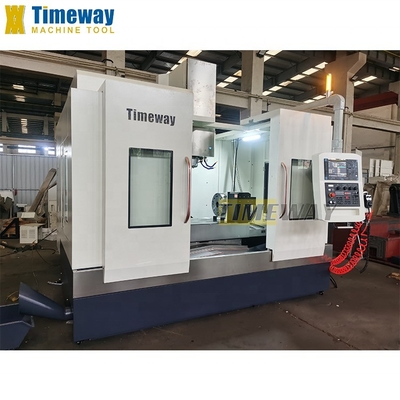

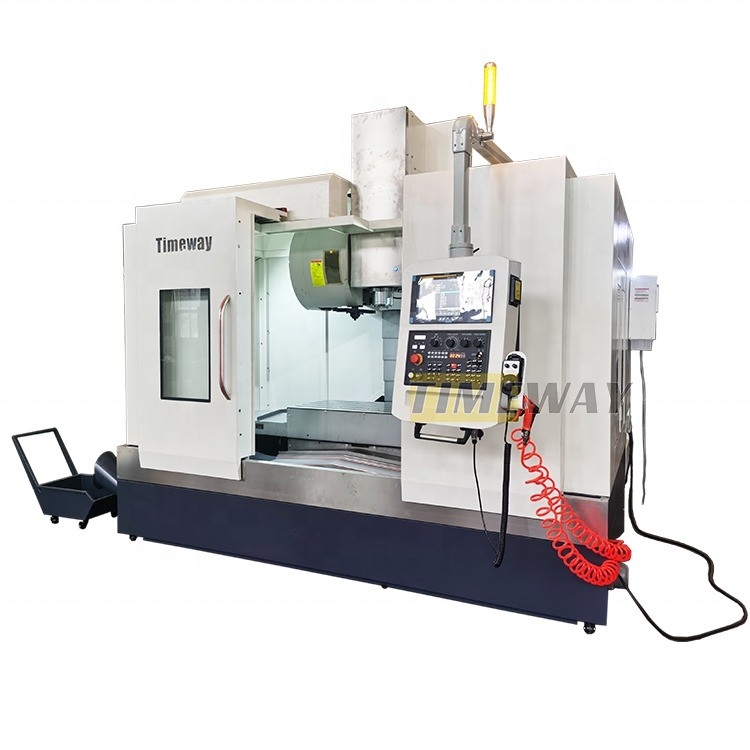

CNC Vertical Machining Center VMC1160G
Applications of the vertical machining center:
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification
Specifications | Unit | VMC1160G |
Table size | mm | 1200x600 |
T-slot (No./width/pitch) | mm | 5/18/100 |
Loading capacity | kg | 800 |
Longitudinal travel (X) | mm | 1100 |
Cross travel (Y) | mm | 600 |
Vertical travel (Z) | mm | 600 |
Distance from spindle nose to table | mm | 120-720 |
Distance from spindle center to column | mm | 672 |
Spindle taper | - | BT40 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 36/36/36 |
X/Y/Z-axis feed motor torque | N.m | 22/22/22 |
X/Y/Z-axis positioning accuracy | mm | 0.003 |
X/YZ-axis repetability accuracy | mm | 0.003 |
Main motor power | kw | 11/15 |
Air pressure source | kg/cm2 | 6-8 |
Total power | Kva | 25 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | Linear |
Machine weight | kg | 6200 |
Machine dimensions (LxWxH) | mm | 3200x2560x2960 |
Accessories
standard accessories：
√FANUC/MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND CNC system
√ X/Y/Z: Linear guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ X/Y/Z: Linear guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
optional accessories：
_ 4th axis wiring
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
Machine Details
========================
>> Hardened and fine ground worktable surface make sure high rigidity.

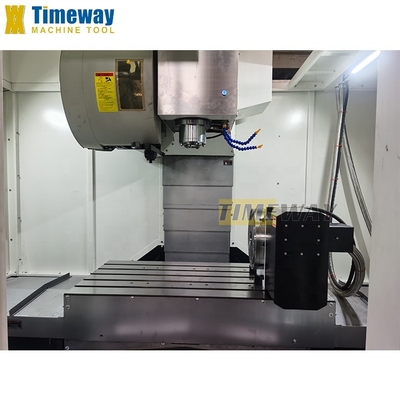

>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================

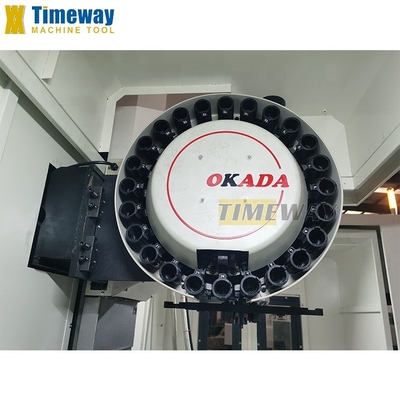

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================

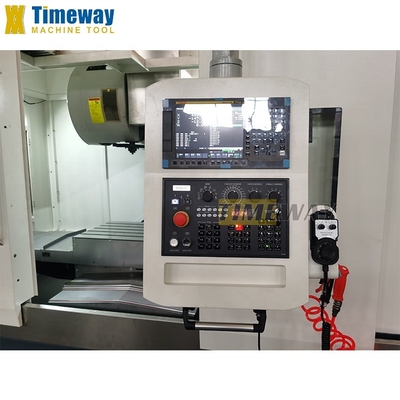

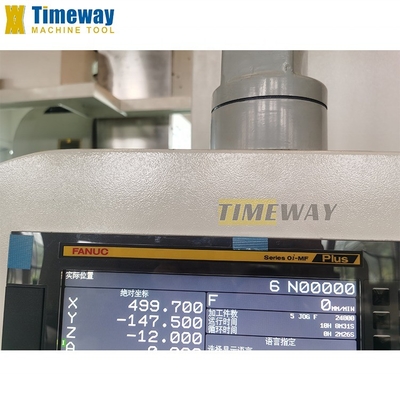

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
