>> Optional Taiwan TJR NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
 |

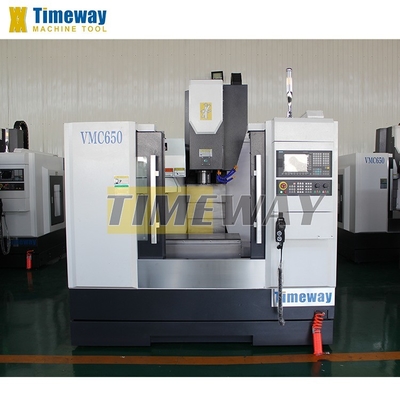

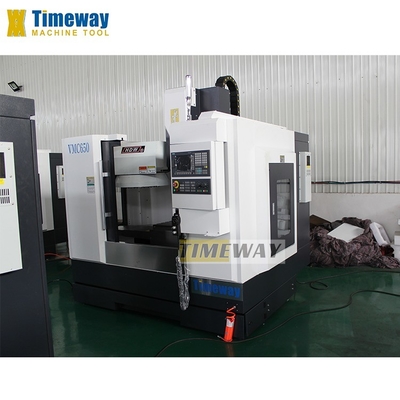

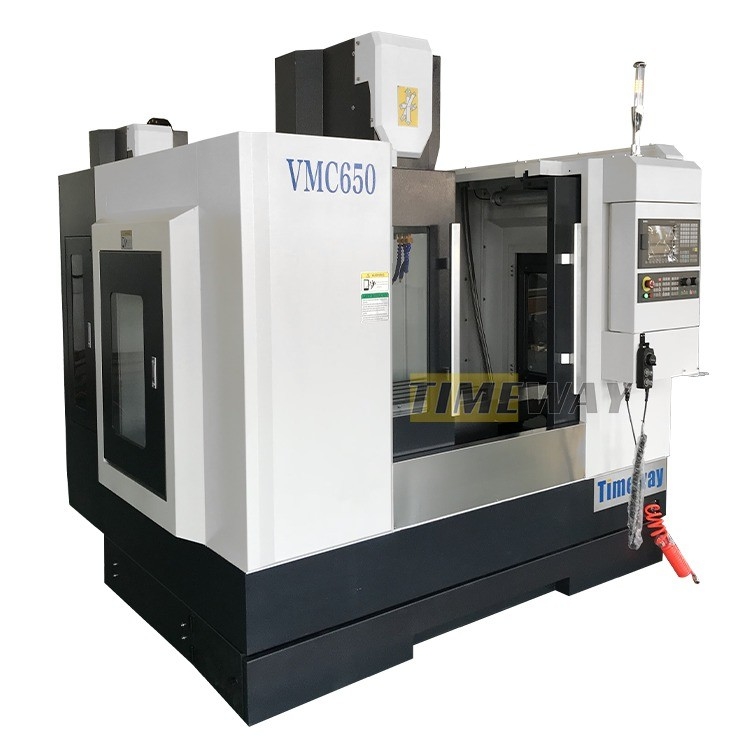

420x800mm Worktable Size Vmc650 3-Axis Cnc Vertical Machining Center for Metal Milling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway/TIMAC |
| Model Number: | VMC650 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $33,500.00/sets 1-1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 0 - 8000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | BT40 |
| Table Travel (X) (mm): | 600 Mm | Table Travel (Y) (mm): | 450 Mm |
| Table Travel (Z) (mm): | 500 Mm | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Dimension(L*W*H): | 2350X2100X2300 |
| Key Selling Points: | High Productivity | Weight (KG): | 3500 |
| Spindle Motor Power(kW): | 5.5/7.5 | Warranty: | 1 YEAR |
| Max. Table Load(kg): | 500 Kg | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Vertical Machining Center |
| Longitudinal Travel (X): | 600mm | Cross Travel (Y): | 450mm |
| Vertical Travel (Z): | 500mm | Spindle Speed: | 8000rpm |
| Main Motor Power: | 5.5/7.5kw | Machine Weight: | 3500kg |
| Worktable Size (WxL): | 420x800mm | Color: | Customers' Request |
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox |
| Table Travel (mm): | 800 | Port: | China Port |
Product Description
Summary
The VMC series vertical machining center is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise,small batch, and multi-variety parts.
Product Description
Vertical Machining Center
Specification
SPECIFICATION | UNIT | VMC650 |
Worktable size (WxL) | mm | 420x800 |
T-slot (No./width/pitch) | mm | 5/18/80 |
Loading capacity | kg | 500 |
Longitudinal travel (X) | mm | 600 |
Cross travel (Y) | mm | 450 |
Vertical travel (Z) | mm | 500 |
Distance from spindle nose to table | mm | 100-600 |
Distance from spindle center to column | mm | 470 |
Spindle taper | - | BT40 |
Spindle speed | rpm | 8000 |
Main motor power | kw | 5.5/7.5 |
Machine weight | kg | 3500 |
Accessories
standard accessories：
√ FANUC 0i MF CNC system
√ X/Y/Z: Sliding guide rail
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Taiwan BT40 spindle, 8000rpm
√ Taiwan disc-type ATC with 24tools
√ Full enclosure
√ Manual pulse generator (MPG)
√ USB & LAN interface
√ Work lamp
√ Pilot lamp
√ Cooling system
√ Centralized automatic lubrication system
√ Spindle air blast
√ Air gun
√ Milling arbor & chuck
√ Heat exchanger for electric cabinet
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
optional accessories：
_ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
_ 4th axis
_ Direct driven spindle (10000, 12000, 15000rpm)
_ Circular coolant nozzle
_ Coolant through spindle (CTS)
_ Spindle oil cooler
_ Air conditioner
_ Chain-type chip conveyor
_ Water gun
_ Safety door
_ Tool measurement system
_ Workpiece measurement system
Machine Details
========================
>> Hardened and fine ground worktable surface make sure high rigidity.
========================
>> Large working space can meet the processing requirement of different size pieces.
>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================

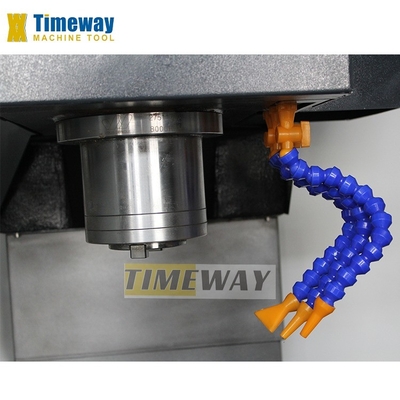

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================

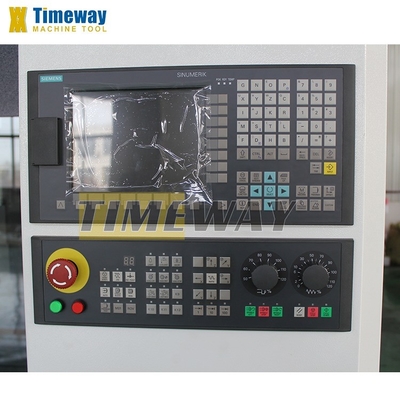

>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

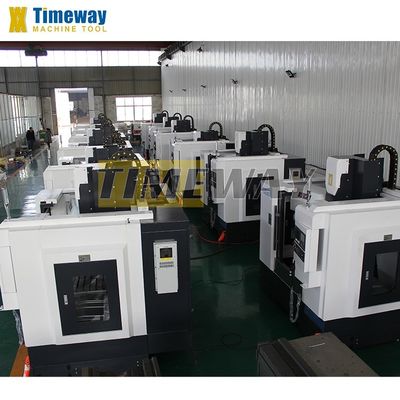

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
