CNC Milling Machine for Machining Metal Table Size 1000*550mm Vertical Machining Center
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,960.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 1 | Type: | VERTICAL |
| Dimension(L*W*H): | 2800*2350*2800 | Weight (T): | 0.5 T |
| Table Size (mm): | 1000*550mm | CNC Control System: | FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 Mm |
| Table Travel (Y) (mm): | 550 Mm | Table Travel (Z) (mm): | 550 Mm |
| Positioning Accuracy (mm): | 0.01 Mm | Repeatability (X/Y/Z) (mm): | 0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 7.5 |
| Max. Table Load(kg): | 500 Kg | Feed Speed(mm/min): | 0 - 3600 Mm/min |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 16, 10, 12, 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | 220V/380V | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | 3-axis Vertical Cnc Machining Center |
| Machine Type: | VMC CNC Milling Machine | Application: | Metal Machining |
| Product Type: | Cnc 3 Axis Machine | Processing: | Metal Vertical Milling Machine |
| Precision: | High Precision Machining Center | Key Words: | Cnc Machine |
| Function: | Machining Metal | Color: | Customers' Request |
| Key Word: | CNC Machining Center Vertical | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining, Advertising Company |
| Showroom Location: | None | Core Components: | PLC |
| Rapid Feed Speed(m/min): | 36 | Port: | China Port |
Product Description
Products Description

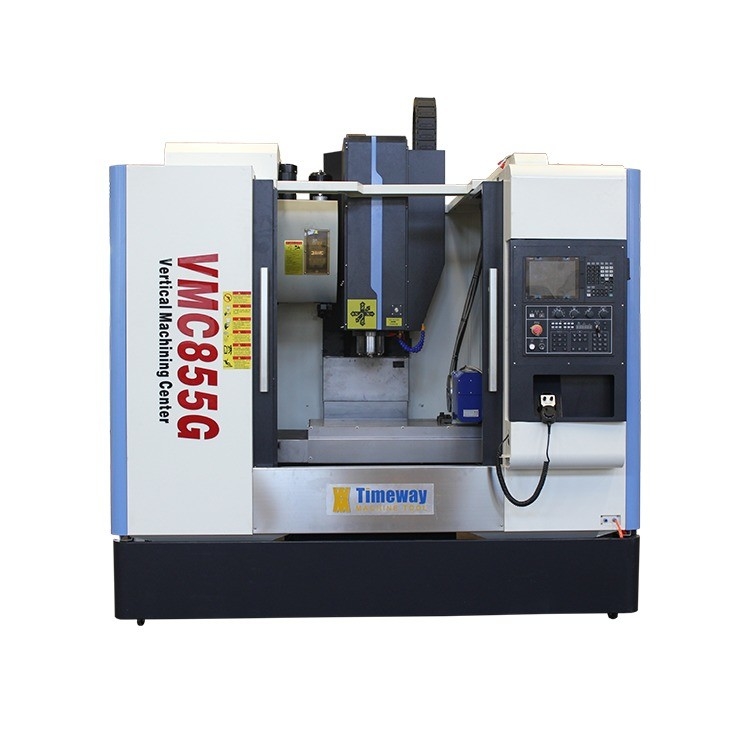

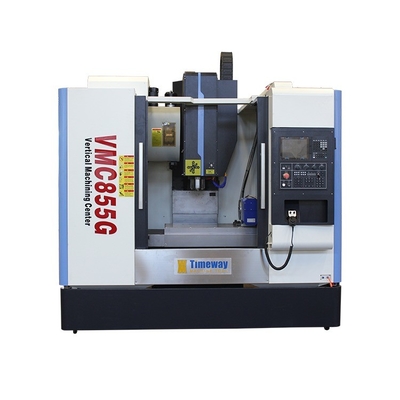

CNC Milling Machine---Vertical Machining Center
SPECIFICATION | UNIT | VMC850G | VMC855G | VMC1160G |
Worktable size (LxW) | mm | 1000x500 | 1000x550 | 1200x600 |
T-slot (No./width/pitch) | mm | 5-18-100 | 5-18-100 | 5-18-100 |
Loading capacity | kg | 500 | 500 | 800 |
Longitudinal travel (X) | mm | 800 | 800 | 1100 |
Cross travel (Y) | mm | 500 | 550 | 600 |
Vertical travel (Z) | mm | 500 | 550 | 600 |
Distance from spindle center to column | mm | 524 | 600 | 672 |
Machine dimensions (LxWxH) | mm | 2800x2250x2600 | 2800x2350x2800 | 3200x2560x2960 |
· SIEMENS 808D control · Manual pulse generator(MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · Full enclosed splash guard · Heat exchanger · Tool & tool box · Operator manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
