Product Details:

Place of Origin: Henan, China
Brand Name: TIMAC/Timeway

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $200,000.00/sets 1-2 sets
Get Best Price Contact Now

Detail Information
Condition: New Spindle Taper: BT55
No. Of Spindles: 3 Type: Horizontal
Dimension(L*W*H): 3500*2400*3200 Weight (T): 10 T
Table Size (mm): 820*1300 CNC Control System: FANUC, Siemens
Number Of Axes: 3 Table Travel (X) (mm): 1000
Table Travel (Y) (mm): 1250 Table Travel (Z) (mm): 600
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.003
Range Of Spindle Speed(r.p.m): 0 - 6000 R.p.m Spindle Motor Power(kW): 11-15
Max. Table Load(kg): 800 Kg Min. Time Of Tool Change(s): 2
Tool Magazine Capacity: 24 Key Selling Points: High Productivity
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Product Name: Gantry CNC Machining Center
Machine Type: Cnc Gantry Machining Center Model: GMC1000
CNC Controller: Fanuc Siemens Syntec KND GSK X Axis Travel: 1000mm
Y Axis Travel: 1250mm Z Axis Travel: 600mm
Spindle Speed: 6000 Rpm Machine Weight: 10 Tons
Color: Cusomer Request Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location: Canada, France, Indonesia, Pakistan, Mexico, Russia, Kenya, Romania Core Components: Engine

Product Description

Product Description

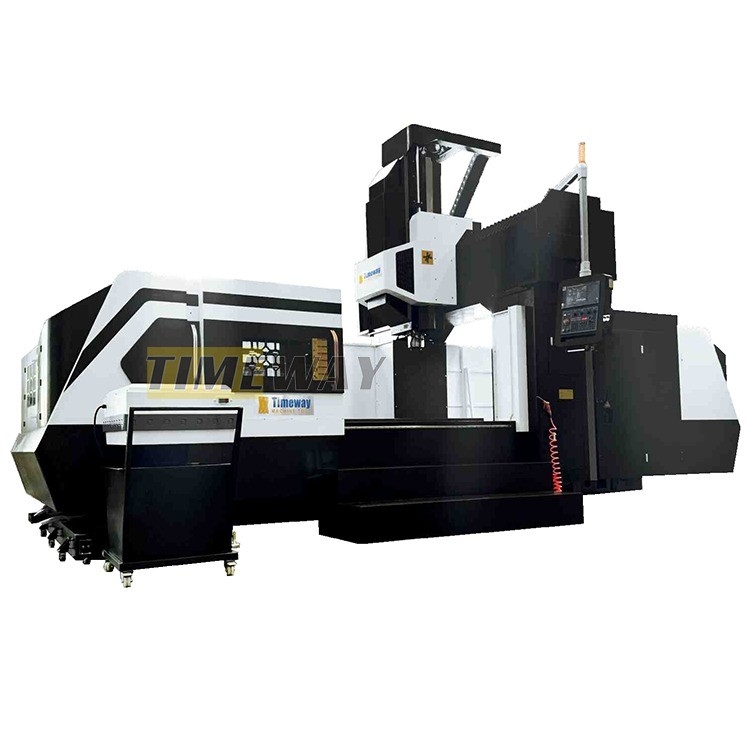

CNC Gantry Machining Center
Machinery Repair Shops GMC1000 Gantry CNC Machining Center with 1000mm Table Travel 0
Features:
**Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term.
**X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway;high-precision, high-speed, strong cutting and high rigid.
**Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool.
**For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.
Specification
Specification
Unit
GMC1000
Table width
mm
900
T-slot (No./width/pitch)
mm
5/22/165
Cross travel (Y)
mm
1000
Vertical travel (Z)
mm
600
Gantry width
mm
1400
Max. height of workpiece
mm
680
Distance from spindle nose to table
mm
180-780
X/Y/Z-axis feed speed
m/min
10/10/10
X/Y/Z-axis rapid feed speed
m/min
20/20/20
X/Y/Z-axis feed motor torque
N.m
18/20/18
Machine weight
tons
12/14/16/18/20
Machine width & height
mm
2700x3300
Accessories

standard accessories：

1. Resin sand casting;
2. X, Y rails adopts imported linear guideway, Z rail is quenching -plastic sliding guide rail pair;
3. Imported rolling screw, rack, gear box;
4. X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover;
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head;
6. Taiwan production pneumatic cylinder;
7. Taiwan ATC, carousel type, disc type, chain type are available as option;
8. Imported bearings for leadscrews;
9. Famous brand coupling;
10. Headstock balancing system is Nitrogen balance system as option;
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system;
16. Cooling system;
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. Double spiral chip conveyor;
21. CNC controller: KND,GSK, HNC (China);SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

optional accessories:

1. Special milling head: Lengthen milling head, right angle milling head, universal milling head;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Chain type chip conveyor.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Machinery Repair Shops GMC1000 Gantry CNC Machining Center with 1000mm Table Travel 1
Factory Display：
Machinery Repair Shops GMC1000 Gantry CNC Machining Center with 1000mm Table Travel 2
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Machinery Repair Shops GMC1000 Gantry CNC Machining Center with 1000mm Table Travel 3
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Machinery Repair Shops GMC1000 Gantry CNC Machining Center with 1000mm Table Travel 4
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Machinery Repair Shops GMC1000 Gantry CNC Machining Center with 1000mm Table Travel 5
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
