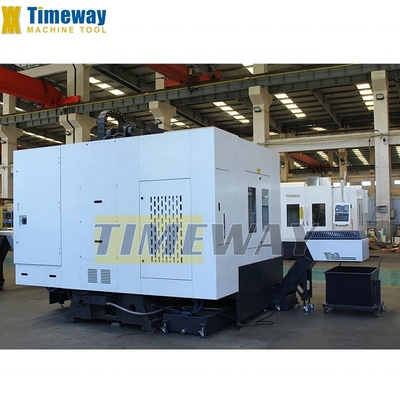

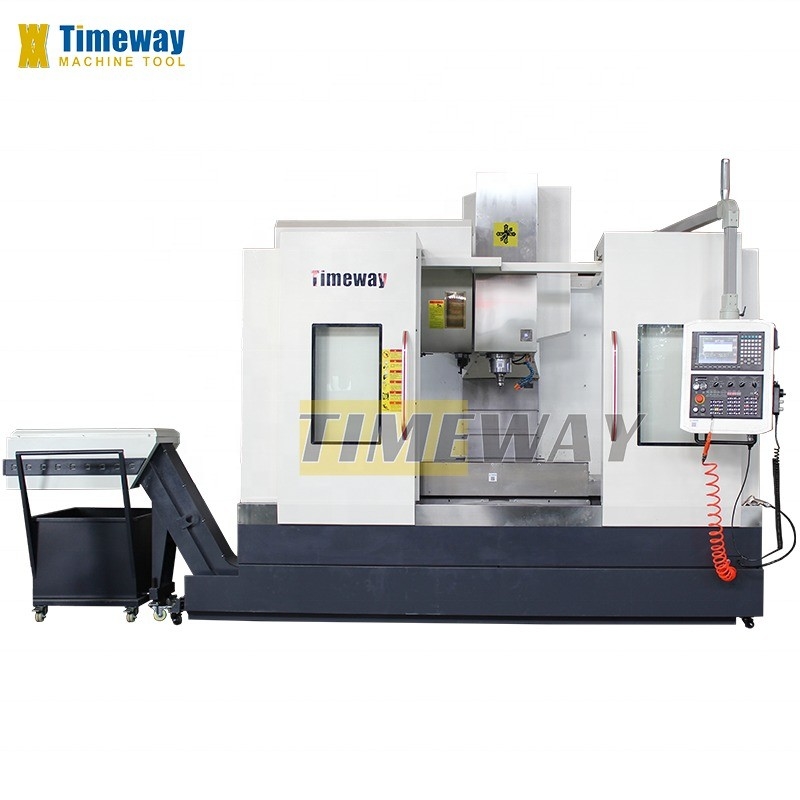

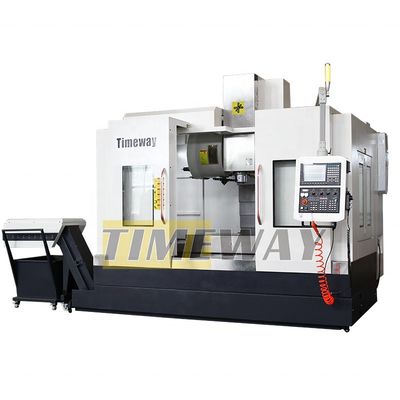

TIMEWAY VMC850 CNC Vertical Machining Center FANUC Control System Metal Milling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 2800x2350x2600mm | Weight (T): | 4.6 T |
| Table Size (mm): | 1000x550 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 800 Mm |
| Table Travel (Y) (mm): | 500 Mm | Table Travel (Z) (mm): | 500 Mm |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5-11 |
| Max. Table Load(kg): | 600 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 1 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Voltage: | 220v/380v | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 1000x500mm |
| Number Of Axis: | 3,4,5 | X Axis Travel: | 800mm |
| Y Axis Travel: | 500mm | Z Axis Travel: | 500mm |
| Product Name: | Vmc850 Machining Center | Guideway Type: | Sliding |
| Keywords: | Vertical Machining Center | Color: | Optional |
| Selling Point: | High-accuracy | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, France, Germany, Brazil, Indonesia, Pakistan, India, Russia, Spain, Thailand, Kazakhstan, Uzbekistan, Malaysia, Australia | Core Components: | Engine |
| Rapid Feed Speed(m/min): | 15 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
vertical machining center
Specification
SPECIFICATION | UNIT | VMC850 |
Worktable size (LxW) | mm | 1000x500 |
T-slot (No./width/pitch) | mm | 5-18-90 |
Loading capacity | kg | 600 |
Longitudinal travel (X) | mm | 800 |
Cross travel (Y) | mm | 500 |
Vertical travel (Z) | mm | 500 |
Spindle taper | - | BT-40 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 |
X/Y/Z-axis positioning accuracy | mm | +0.01 |
X/Y/Z-axis repositioning accuracy | mm | +0.008 |
Main motor power | kw | 7.5/11 |
Power capacity | Kva | 20 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | Sliding |
Machine weight | kg | 4600 |
Machine dimensions (LxWxH) | mm | 2800x2350x2600 |
MAIN CONFIGURATION & ACCESSORIES:

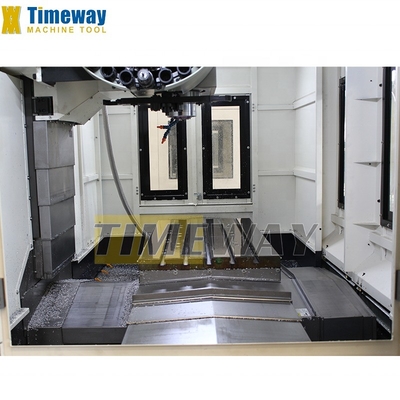

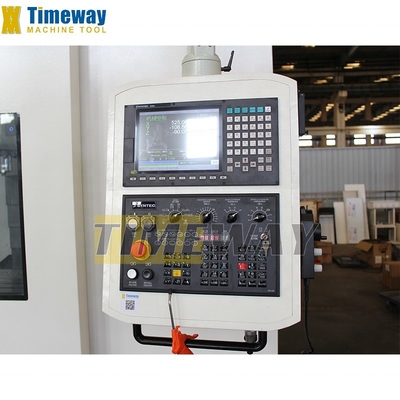

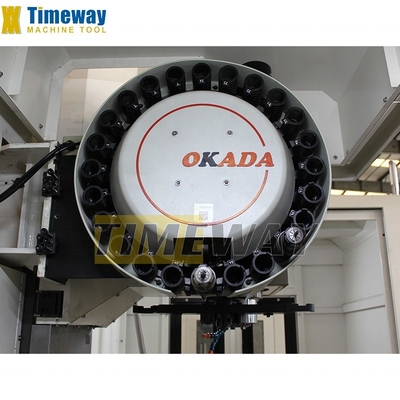

1. Resin sand casting; 2. X, Y, Z rails are quenching - plastic sliding guide rail pair; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle, optional for direct driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC, carousel type and disc type are available as option; 7. Imported bearings for leadscrews; 8. Imported coupling; 9. Headstock balancing system have heavy casting or nitrogen balance system as option; 10. Full enclosure; 11. Rigid tapping; 12. Spindle center air blast; 13. Work lamp; 14. Pilot lamp; 15. USB and LAN interface; 16. Manual pulse generator (MPG); 17. Centralized automatic lubrication system. 18. Cooling system. 19. Heat exchanger for electrical cabinet ; 20. Leveling blocks & bolts; 21. Toolbox and tools; 22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC,MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement systems; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer.
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
