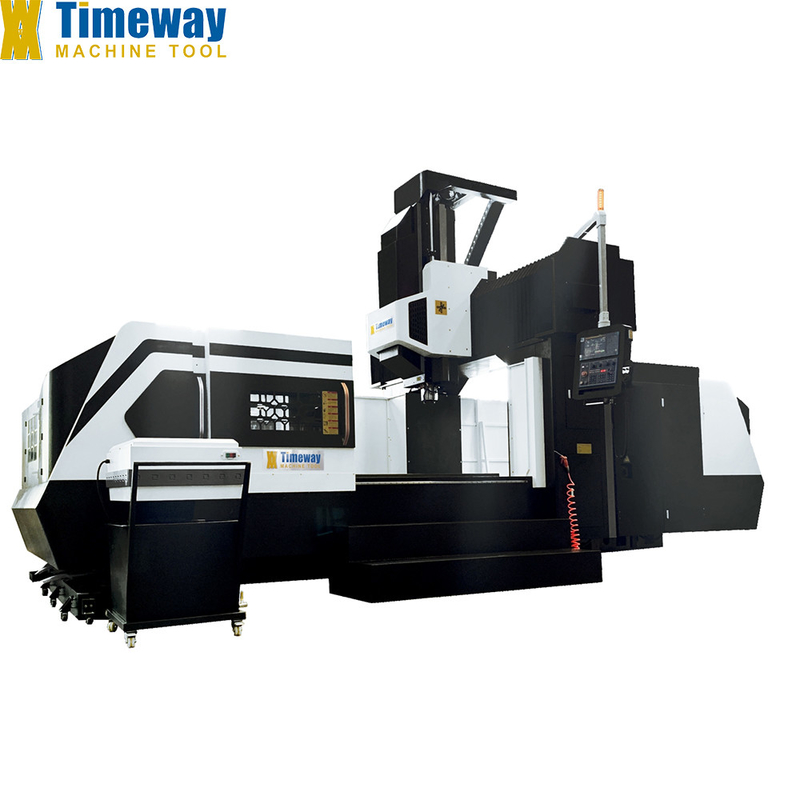

±0.005 Positioning Accuracy Gantry Type Machining Center GMC1800 CNC Milling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,995.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Gantry |
| Weight (T): | 21.5 T | Table Size (mm): | 2000/2500/3000/3500x1600 |
| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 2000/2500/3000/3500 | Table Travel (Y) (mm): | 1800(2000)/1000 |
| Table Travel (Z) (mm): | 1800(2000)/1000 | Positioning Accuracy (mm): | ±0.005 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
| Spindle Motor Power(kW): | 15/18.5 | Max. Table Load(kg): | 9000 Kg |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Gantry CNC Machining Center | X-axis Travel: | 2000/2500/3000/3500mm |
| Y/Z-axis Travel: | 1800 (2000)/1000mm | Gantry Width: | 1800mm |
| Table Width: | 1600mm | Table Length: | 2000/2500/3000/3500mm |
| Loading Capacity: | 6000/7000/8000/9000kg | Spindle Taper: | BT-50 (190) |
| ATC Capacity (style): | 24 (Disc) | Machine Weight: | 21.5/24/26.5/29tons |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Construction Works , Energy & Mining | Showroom Location: | Egypt, Canada, United States, Italy, France, Germany, Indonesia, Thailand, South Korea, Sri Lanka, Romania, South Africa, Japan, Malaysia, Australia |
| Core Components: | Motor | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;

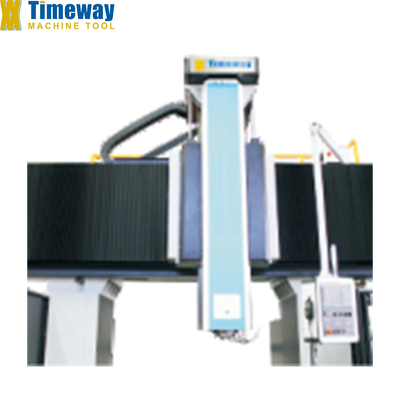

2. X, Y rails adopts imported linear guideway, Z rail is quenching - plastic sliding guide rail pair;
3. Imported rolling screw, rack, gear box;
4. X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover;
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head;
6. Taiwan production pneumatic cylinder;
7. Taiwan ATC, carousel type, disc type, chain type are available as option;
8. Imported bearings for leadscrews;
9. Famous brand coupling;
10. Headstock balancing system is Nitrogen balance system as option;
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. Double spiral chip conveyor;

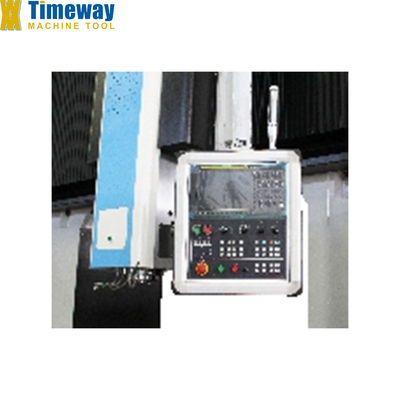

21. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y rails adopts imported linear guideway, Z rail is quenching - plastic sliding guide rail pair;
3. Imported rolling screw, rack, gear box;
4. X rail adopt stainless steel telescopic cover, Y rail adopts plastic accordion cover;
5. Standard with belt driven head, optional for auto. 5 faces head, gear head, ZF reducer head, direct driven head, CTS head;
6. Taiwan production pneumatic cylinder;
7. Taiwan ATC, carousel type, disc type, chain type are available as option;
8. Imported bearings for leadscrews;
9. Famous brand coupling;
10. Headstock balancing system is Nitrogen balance system as option;
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. Double spiral chip conveyor;
21. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. Special milling head: Lengthen milling head, right angle milling head, universal milling head;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Chain type chip conveyor.
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Chain type chip conveyor.
Specification
SPECIFICATION | UNIT | GMC1800 |
X-axis travel | mm | 2000/2500/3000/3500 |
Y/Z-axis travel | mm | 1800 (2000)/1000 |
Gantry width | mm | 1800 |
Table width | mm | 1600 |
Table length | mm | 2000/2500/3000/3500 |
T-slots (No./width/pitch) | - | 9-22-180 |
Loading capacity | kg | 6000/7000/8000/9000 |
Distance spindle nose to table center | mm | 150-1150 |
Spindle taper | - | BT-50 （190) |
Spindle speed | rpm | 6000 |
Main motor power | kw | 15/18.5 |
X/Y/Z-axis servo motor torque | - | 38/30/30 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 |
X/Y/Z-axis rails type | - | X/Y: Linear/Z: sliding |
X/Y/Z-axis positioning accuracy | mm | ±0.005 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.003 |
ATC capacity (style) | tools | 24 (Disc) |
Tool change time (tool to tool) | sec | 2.4 |
Max. tool weight | kg | 18 |
Max. tool diameter | mm | Φ112/Φ200 (Empty) |
Max. tool length | mm | 300 |
Air pressure require | kg/cm2 | 8 |
Machine weight | tons | 21.5/24/26.5/29 |
Machine length | mm | 5700/6700/7700/8700 |
Machine width & height | mm | 4030×3900 |
