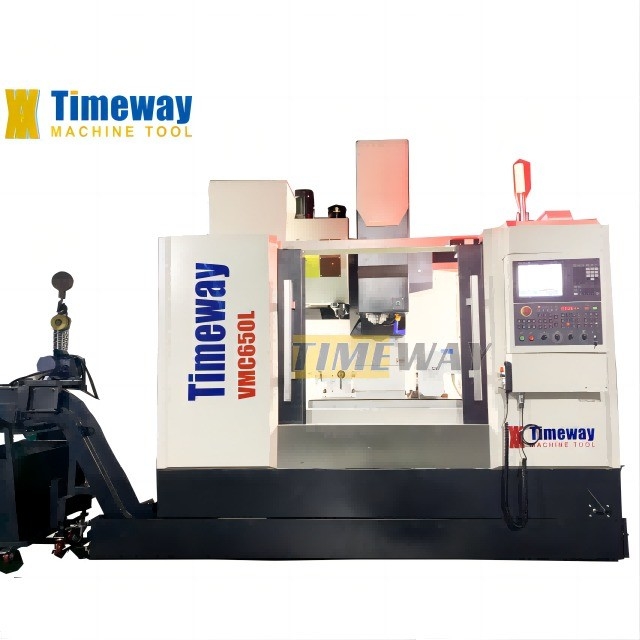

Building Material Shops' Top-Notch Equipment 3-Axis VMC650L Vertical Machining Center
Product Details:
| Place of Origin: | China |
| Model Number: | vmc650L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/acres 1-2 acres |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 8000 - 20000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Heavy Duty | Spindle Taper: | BT40 |
| Table Travel (X) (mm): | 700 | Table Travel (Y) (mm): | 450 |
| Table Travel (Z) (mm): | 450 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.006 | Dimension(L*W*H): | 2400*1900*2400mm |
| CNC Control System: | FANUC | Key Selling Points: | High-accuracy |
| Weight (KG): | 3500 | Spindle Motor Power(kW): | 7.5/11 |
| Warranty: | 1 Year | Max. Table Load(kg): | 400 Kg |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC Systemn | Spindle Speed: | 8000 Rpm |
| X Axis Travel: | 700mm | Y Axis Travel: | 450mm |
| Z Axis Travel: | 450mm | Loading Capacity: | 400kg |
| Worktable Size: | 1000*420mm | Main Motor Power: | 7.5/11kw |
| Machine Dimensions(L*W*H): | 2400*1900*2400mm | Machine Type: | Machining Center |
| Condition: | New | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Specification
specification | unit | VMC650L | VMC1060L | VMC850L |
Worktable size (LxW): | mm | 1000×420 | 1200×600 | 1000×500 |
T-slot (No./width/pitch): | mm | 5-18-80 | 5-18-110 | 5-18-100 |
Loading capacity : | kg | 400 | 800 | 500 |
Longitudinal travel (X) : | mm | 700 | 1000 | 800 |
Cross travel (Y) : | mm | 450 | 600 | 500 |
Vertical travel (Z) : | mm | 450 | 600 | 500 |
Distance from spindle nose to table: | mm | 130-630 | 120-720 | 110-610 |
Distance from spindle center to column: | mm | 495 | 655 | 524 |
spindle taper: | _ | BT-40 (120) | BT-40 (150) | BT-40 (150) |
Spindle speed: | rpm | 8000 | 8000 | 8000 |
X/Y/Z-axis rapid feed speed: | m/min | 48/48/15 | 36/36/15 | 48/48/15 |
X/Y/Z-axis servo motor (FANUC) : | _ | β12/β12/β22 | β22/β22/β22 | β12/β12/β22 |
X/Y/Z-axis positioning accuracy: | mm | ±0.008 | ±0.008 | ±0.008 |
X/Y/Z-axis repositioning accuracy: | mm | ±0.006 | ±0.006 | ±0.006 |
Main motor power : | kw | 7.5/11 | 11/15 | 7.5/11 |
Air pressure source : | kg/cm2 | 6-8 | 6-8 | 6-8 |
Power capacity : | Kva | 18 | 25 | 20 |
Tool magazine capacity : | T | 12 (Crousel) | 24 (Disc) | 24 (Disc) |
Guideway type: | _ | X/Y: Linear; Z: Sliding | X/Y: Linear; Z: Sliding | X/Y: Linear; Z: Sliding |
Machine weight: | kg | 3500 | 6300 | 4600 |
Machine dimensions (LxWxH): | mm | 2400×1900×2400 | 3200×2560×2960 | 2800×2350×2600 |
Main Configuration & Accessories

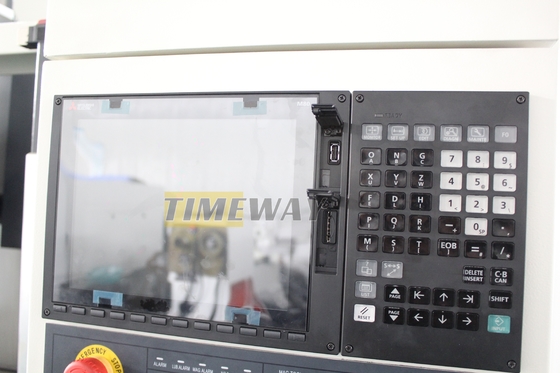

FANUC 0i-TF CNC System
FANUC servo feed motor (X,Y,Z)
24 tools arm-type ATC
Taiwan HIWIN linear guideway
Taiwan HIWIN ball screw
Taiwan pneumatic cylinder
Spindle rigid tapping
Spindle air blow
USB and LAN interface
FANUC servo feed motor (X,Y,Z)
24 tools arm-type ATC
Taiwan HIWIN linear guideway
Taiwan HIWIN ball screw
Taiwan pneumatic cylinder
Spindle rigid tapping
Spindle air blow
USB and LAN interface
Working lamp

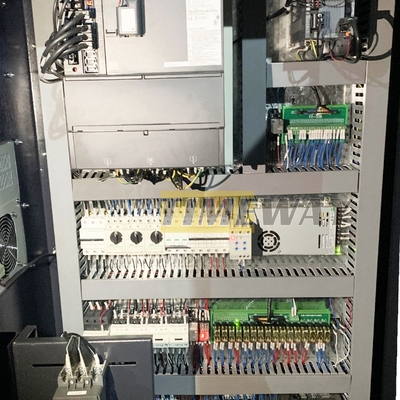

Heat exchanger for electrical cabinet
Manual pulse generator (MPG)
Automatic lubrication system
Cooling system
Air gun
Leveling blocks & screws
Tool & tool box
Operation manual(English)
Heat exchanger for electrical cabinet
Manual pulse generator (MPG)
Automatic lubrication system
Cooling system
Air gun
Leveling blocks & screws
Tool & tool box
Operation manual(English)
Optional Configuration & Accessories

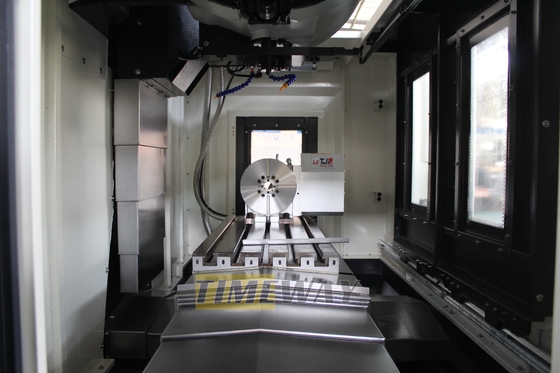

The 4th axis rotary table
Coolant through spindle (CTS)
High pressure water flush system
Spindle oil cooler
Air conditioner for electrical cabinet

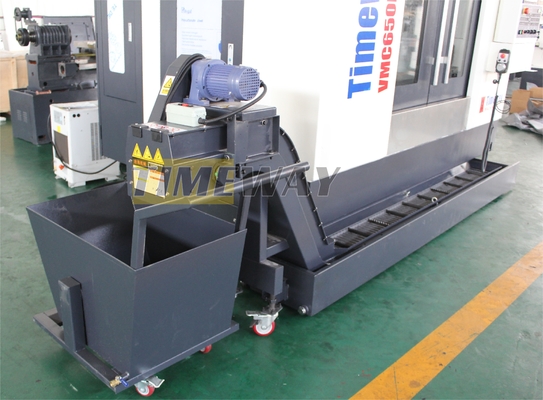

Chain type chip conveyor
Coolant through spindle (CTS)
High pressure water flush system
Spindle oil cooler
Air conditioner for electrical cabinet
Chain type chip conveyor
Auto. Tool length measurement system
Auto. Workpiece measurement system
Screw type chip conveyor
Oil skimmer
Safety door
Auto. Workpiece measurement system
Screw type chip conveyor
Oil skimmer
Safety door
