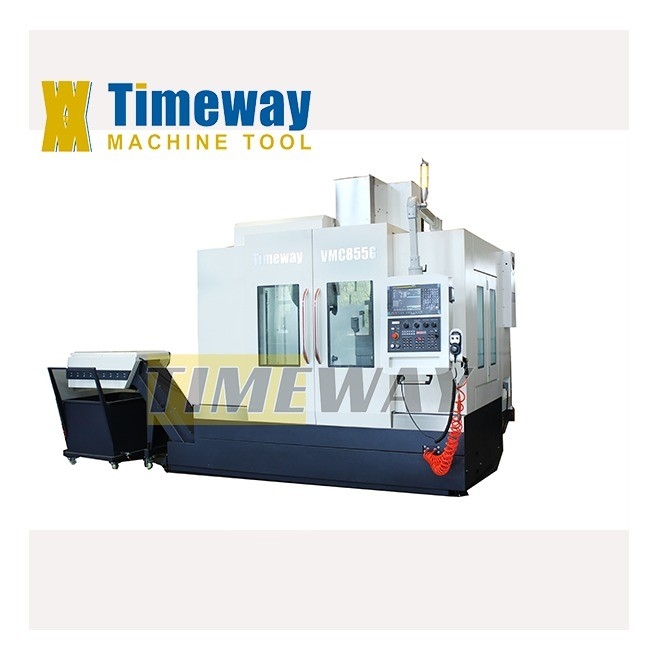

VMC855G Vertical Machining Center for Precision Machining in Machinery Repair Shops
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/pieces 1-2 pieces |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | Single |
|---|---|---|---|
| Type: | VERTICAL | Weight (T): | 5.2 T |
| Table Size (mm): | 1000x550 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 550 | Table Travel (Z) (mm): | 550 |
| Positioning Accuracy (mm): | ±0.003 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Range Of Spindle Speed(r.p.m): | 8000 - 20000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 500 Kg | Min. Time Of Tool Change(s): | 6 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Multifunctional |
| Warranty: | 1 Year | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Vertical Machining Center |
| Machine Type: | Vertical CNC Milling Machine | CNC Or Not: | CNC Systemn |
| After-sales Service Provided: | 1 Year | Worktable Size: | 1000*550mm |
| X Axis Travel: | 800mm | Y Axis Travel: | 550mm |
| Z Axis Travel: | 550mm | Max. Weight Of Workpiece: | 500kg |
| Keywords: | VMC855G | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Specification
Specification | VMC855G | VMC1160G |
Worktable size (LxW) | 1000×550mm | 1200×600mm |
T-slot (No./width/pitch) | 5-18-100mm | 5-18-100 |
Loading capacity | 500mm | 800mm |
Longitudinal travel (X) | 800mm | 1100mm |
Cross travel (Y) | 550mm | 600mm |
Vertical travel (Z) | 550mm | 600mm |
Distance from spindle nose to table | 110-660mm | 120-720mm |
Distance from spindle center to column | 600mm | 672mm |
Spindle taper | BT-40 | BT-40 |
Spindle speed | 8000rpm | 8000rpm |
X/Y/Z-axis rapid feed speed | 48/48/48m/min | 36/36/36m/min |
X/Y/Z-axis servo motor (FANUC) | β12/β12/β22 | β22/β22/β22 |
X/Y/Z-axis positioning accuracy | ±0.003/300mm | ±0.003/300mm |
X/Y/Z-axis repositioning accuracy | ±0.003/300mm | ±0.003/300mm |
Main motor power | 7.5/11kw | 11/15kw |
Air pressure source | 6-8kg/cm2 | 6-8kg/cm2 |
Power capacity | 20Kva | 25Kva |
Tool magazine capacity | 24 (Disc)T | 24 (Disc)T |
Guideway type | Linear | Linear |
Machine weight | 5200kg | 5200kg |
Machine dimensions (LxWxH) | 2800×2350×2800mm | 3200×2560×2960mm |
MAIN CONFIGURATION & ACCESSORIES:
1. Resins and casting;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;

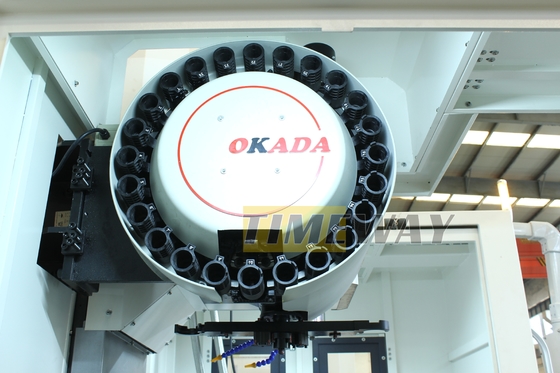

6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;

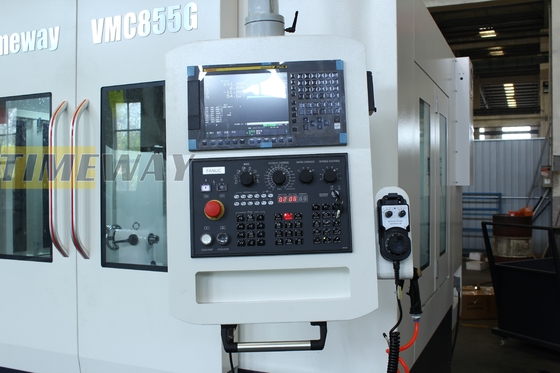

16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;

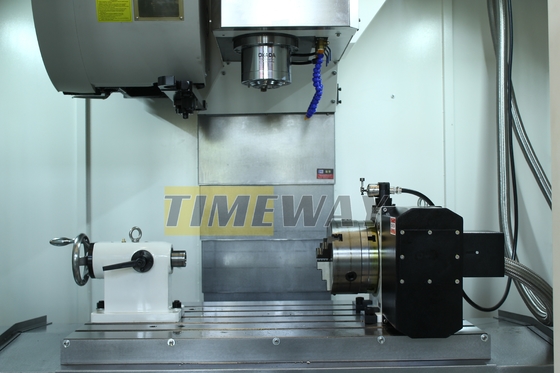

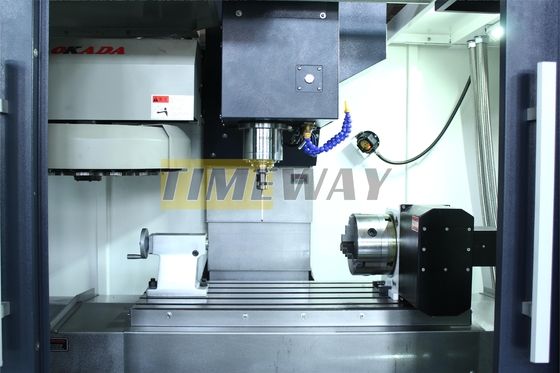

2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;

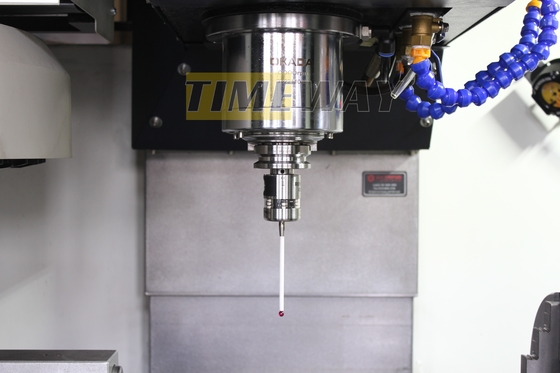

9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.
