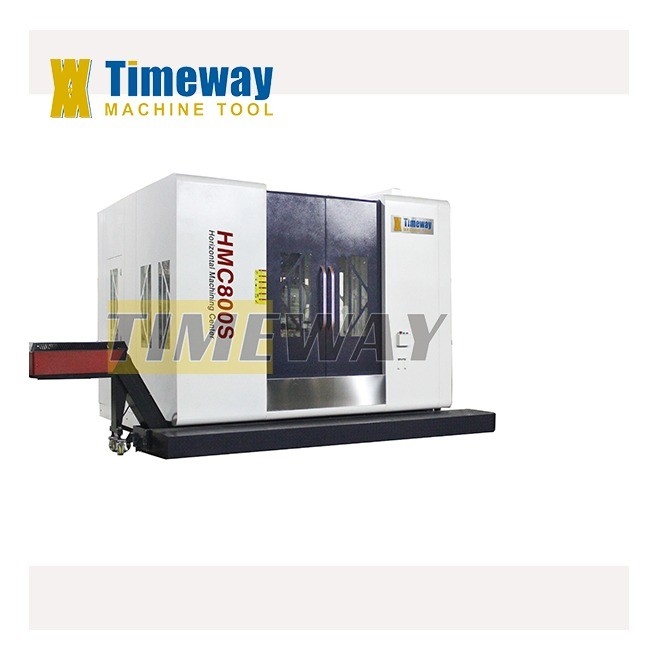

800*800 Table Size HMC800S CNC Horizontal Machining Center for and Accurate Machining
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/pieces 1-2 pieces |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Weight (T): | 12 T | Table Size (mm): | 800*800 |
| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 1800 | Table Travel (Y) (mm): | 1400 |
| Table Travel (Z) (mm): | 900 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.005 | Range Of Spindle Speed(r.p.m): | 6000 - 20000 R.p.m |
| Spindle Motor Power(kW): | 15/18.5 | Max. Table Load(kg): | 2000 Kg |
| Min. Time Of Tool Change(s): | 5 | Tool Magazine Capacity: | 40 |
| Key Selling Points: | Easy To Operate | Warranty: | 1 Year |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Machining Center | Machine Type: | Horizontal Machine Centers |
| CNC Or Not: | CNC Systemn | After-sales Service Provided: | 1 Years |
| Worktable Size: | 800 800mm | Precision: | High Precision CNC Milling Machine |
| X-axis Travel: | 1800mm | Y-axis Travel: | 1400mm |
| Z-axis Travel: | 900mm | Machine Weight: | 12000kg |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specification | HMC800S | HMC630S |
Machine structure | Cross-type | Cross-type |
X-axis travel | 1800mm | 1000mm |
Y-axis travel | 1400mm | 750mm |
Z-axis travel | 900mm | 600mm |
B-axis servo motor torque (FANUC) | 20 | 15 |
Table size | 800×800mm | 630×630mm |
Table indexing | 1°×360 | 1°×360 |
T-slots (No./width/pitch) | 5-22-165 | 5-18-122 |
Table rotation speed | 11.1rpm | 11.1rpm |
Loading capacity | 2000kg | 1200kg |
Locking force (35kg / cm2) | 5000kg/m | 4000kg/m |
Distance spindle center to table | -305-1105mm | 50-800mm |
Distance spindle nose to table center | 250-1100mm | 50-650mm |
Spindle taper | BT-50 | BT-50 |
Spindle speed | 6000rpm | 6000rpm |
Main motor power | 15/18.5kw | 6000kw |
X/Y/Z-axis servo motor (FANUC) | Bis30/Bis40/Bis40 | Bis22/Bis22/Bis22 |
X/Y/Z-axis cutting feed speed | 1-8000mm/min | 1-8000mm/min |
X/Y/Z-axis rapid feed speed | 24/12/18 m/min | 24/15/24 m/min |
X/Y/Z-axis rails type | X/Z: Linear/Y: sliding | X/Z: Linear/Y: sliding |
X/Y/Z-axis positioning accuracy | ±0.008mm | ±0.008mm |
X/Y/Z-axis repeat positioning accuracy | ±0.005mm | ±0.005mm |
B-axis positioning accuracy | ±10" | ±10" |
ATC capacity (style) | 40 (Chain)tools | 24 (Disc) |
Tool change time (tool to tool) | 5sec | 5sec |
Max. tool weight | 20kg | 18kg |
Max. tool diameter | Φ125/Φ230mm | Φ112/Φ200mm |
Max. tool length | 300mm | 300mm |
Power supply | 50kva | 40kva |
Air pressure require | 8kg/cm2 | 8kg/cm2 |
Machine weight | 12000kg | 8000kg |
Overall dimension (LxWxH) | 6200×4800×3800mm | 4285×3120×3280mm |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630S, HMC800S;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;

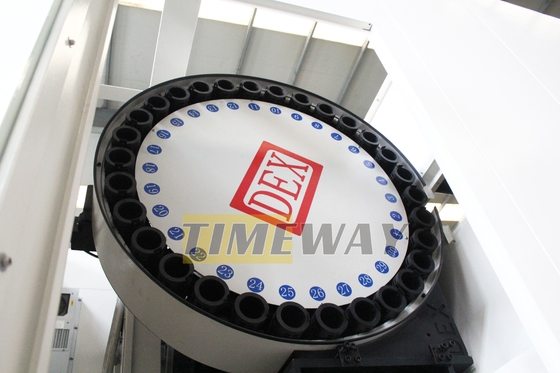

6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;

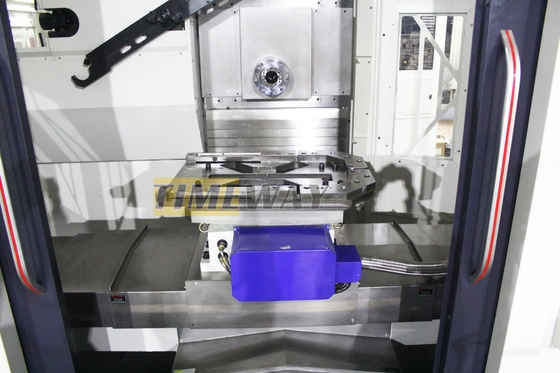

10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;

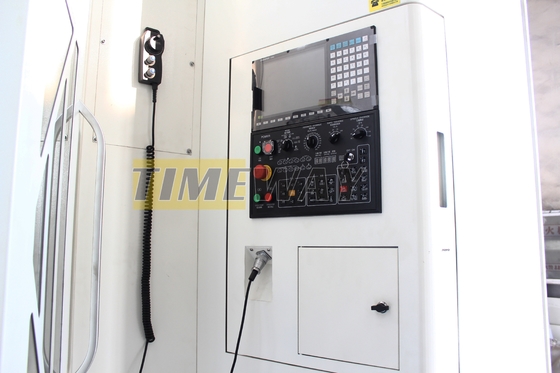

14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.

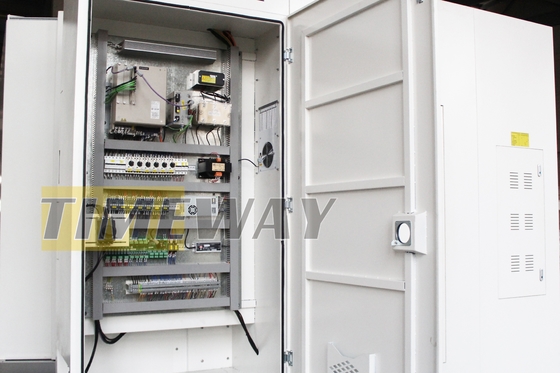

17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC,
MITSUBISHI, FAGOR, etc.
2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630S, HMC800S;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC,
MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
