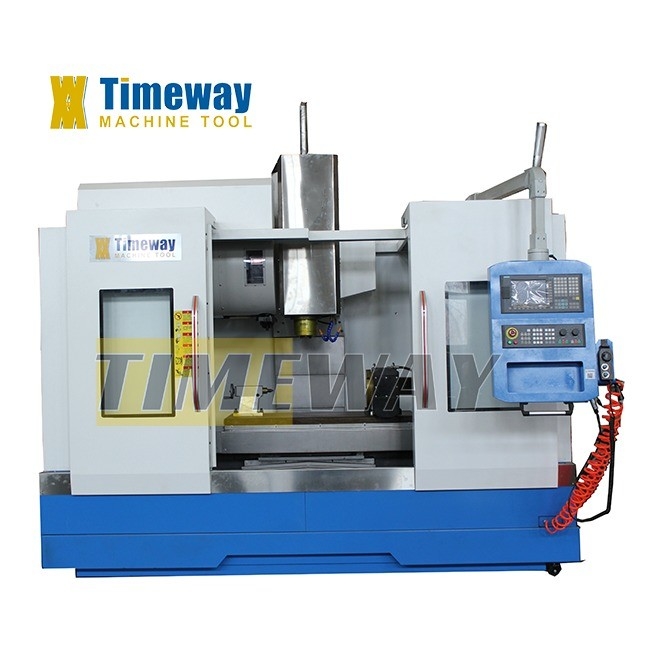

8000 20000 r.p.m Spindle Speed VMC1060 Metal Vertical Machining Center for Production
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 6.3 T | Table Size (mm): | 1200x600 |
| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 1000 | Table Travel (Y) (mm): | 600 |
| Table Travel (Z) (mm): | 600 | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Range Of Spindle Speed(r.p.m): | 8000 - 20000 R.p.m |
| Spindle Motor Power(kW): | 11/15 | Max. Table Load(kg): | 800 Kg |
| Min. Time Of Tool Change(s): | 5 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | High-accuracy | Warranty: | 1 Year |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Vertical Machining Center | Keywords: | Vmc Machine Center |
| CNC Or Not: | CNC Systemn | After-sales Service Provided: | 1 Years |
| Machine Type: | Vertical CNC Milling Machine | Longitudinal Travel (X): | 1000mm |
| Cross Travel (Y): | 600mm | Vertical Travel (Z): | 600mm |
| Spindle Taper: | BT-40 | Distance From Spindle Nose To Table: | 120-720mm |
| Showroom Location: | Canada, United Kingdom, Italy, France, Russia, Spain, South Africa | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specification | VMC1060 | VMC1370 |
Worktable size (LxW) | 1200×600mm | 1360×700mm |
T-slot (No./width/pitch) | 5-18-90mm | 5-18-152.5mm |
Loading capacity | 600kg | 1200kg |
Longitudinal travel (X) | 800mm | 1300mm |
Cross travel (Y) | 500mm | 700mm |
Vertical travel (Z) | 500mm | 700mm |
Distance from spindle nose to table | 110-610mm | 140-840mm |
Distance from spindle center to column | 550mm | 785mm |
Spindle taper | BT-40 | BT-50 (155) |
Spindle speed | 8000rpm | 6000rpm |
X/Y/Z-axis rapid feed speed | 15/15/15m/min | 15/15/15m/min |
X/Y/Z-axis servo motor (FANUC) | β22/β22/β22 | β22/β22/β30 |
X/Y/Z-axis positioning accuracy | ±0.01mm | ±0.01mm |
X/Y/Z-axis repositioning accuracy | ±0.008mm | ±0.008mm |
Main motor power | 11/15kw | 15/18.5kw |
Air pressure source | 6-8kg/cm2 | 6-8kg/cm2 |
Power capacity | 25Kva | 30Kva |
Tool magazine capacity | 24 (Disc)T | 24 (Disc)T |
Guideway type | Sliding | Sliding |
Machine weight | 6300kg | 10000kg |
Machine dimensions (LxWxH) | 3200×2560×2960mm | 3820×2600×3100mm |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement systems;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement systems;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.
