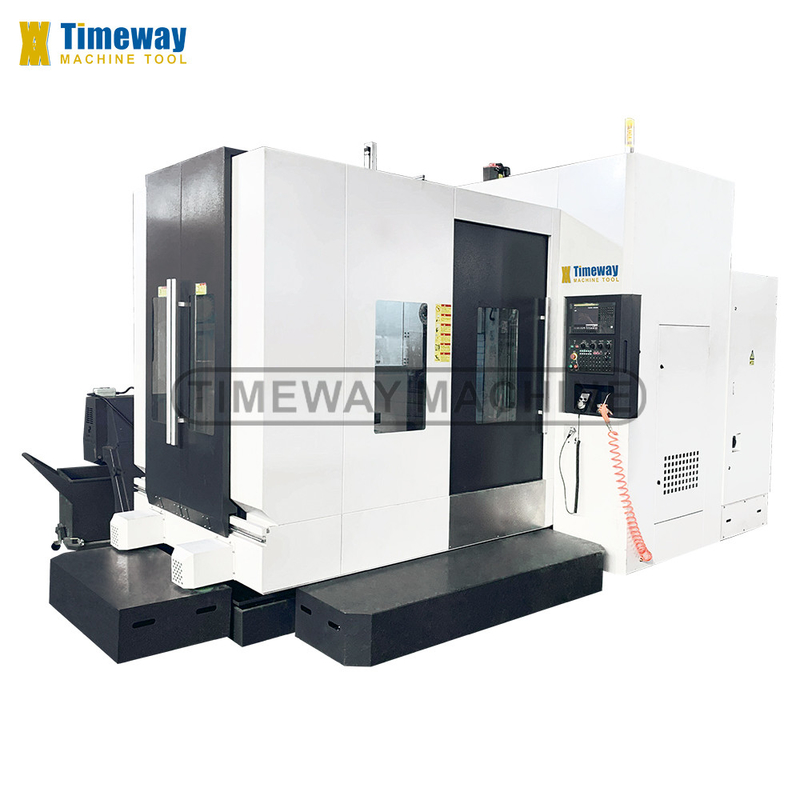

Advanced HMC630 CNC Horizontal Machining Center with Min. Time of Tool Change of 5s
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | Single |
|---|---|---|---|
| Type: | Horizontal | Dimension(L*W*H): | 4860 3600 3460mm |
| Weight (T): | 12 T | Table Size (mm): | 630x630 |
| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3, 4 |
| Table Travel (X) (mm): | 1100 | Table Travel (Y) (mm): | 800 |
| Table Travel (Z) (mm): | 1100 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.005 | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1500 Kg | Min. Time Of Tool Change(s): | 5 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Easy To Operate |
| Warranty: | 1 Year | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Machining Center |
| Machine Type: | Horizontal Machine Centers | CNC Or Not: | CNC Systemn |
| Model: | Hmc630 | X Axis Travel: | 1100mm |
| Y Axis Travel: | 800mm | Z Axis Travel: | 1100mm |
| After-sales Service Provided: | Support | Loading Capacity: | 1500kg |
| Product Type: | Machining Center Cnc Mill Machine | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Specification
Spe | |
Machine structure | Positive T-type |
X-axis travel | 1100mm |
Y-axis travel | 800mm |
Z-axis travel | 1100mm |
B-axis servo motor torque (FANUC) | Bis22 |
Table size | 630×630mm |
Table indexing | 1°×360 |
T-slots (No./width/pitch) | 5-18-100 |
Table rotation speed | 16.6rpm |
Loading capacity | 1500kg |
Locking force (35kg / cm2) | 5000kg/m |
Distance spindle center to table | 50-850mm |
Distance spindle nose to table center | 125-1225mm |
Spindle taper | BT-50 |
Spindle speed | 6000rpm |
Main motor power | 15/18.5kw |
X/Y/Z-axis servo motor (FANUC) | Bis30/Bis30/Bis30 |
X/Y/Z-axis cutting feed speed | 1-8000mm/min |
X/Y/Z-axis rapid feed speed | 24/24/24m/min |
X/Y/Z-axis rails type | X/Z: Linear/Y: sliding |
X/Y/Z-axis positioning accuracy | ±0.008mm |
X/Y/Z-axis repeat positioning accuracy | ±0.005mm |
B-axis positioning accuracy | ±10" |
ATC capacity (style) | 24 (Disc)tools |
Tool change time (tool to tool) | 5sec |
Max. tool weight | 18kg |
Max. tool diameter | Φ112/Φ200mm |
Max. tool length | 300mm |
Power supply | 40kva |
Air pressure require | 8kg/cm2 |
Machine weight | 12000kg |
Overall dimension (LxWxH) | 4860×3600×3460mm |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;

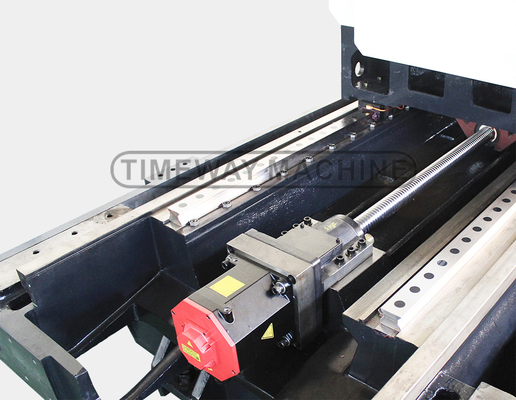

2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630;
3. X, Y, Z rails adopt stainless steel telescopic cover;

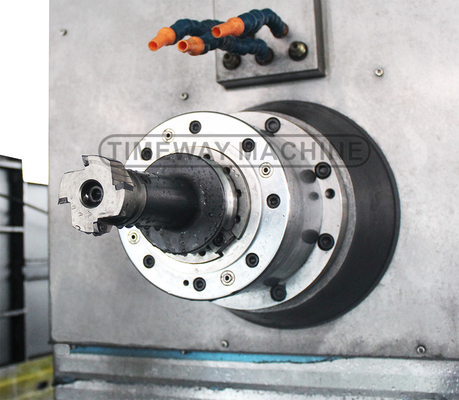

4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;

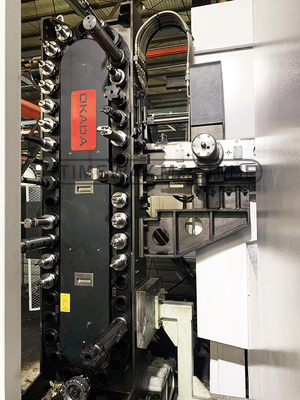

6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
