High Safety Level VMC855G CNC Vertical Milling Machining Center for Metal Cutting
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 2800*2350*2800 | Weight (T): | 5.2 T |
| Table Size (mm): | 1000x550 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 550 | Table Travel (Z) (mm): | 550 |
| Positioning Accuracy (mm): | ±0.003 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 500 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | High Safety Level |
| Warranty: | 1 Year | Voltage: | 380V/50H |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Vertical Machining Center | Machine Type: | VMC CNC Milling Machine |
| Application: | Metal Machining | Keywords: | Vertical Machine Center VMC |
| Product Type: | Machining Center Cnc Mill Machine | CNC Or Not: | CNC Systemn |
| Processing: | Metal Cutting Cnc Milling Machine | Longitudinal Travel (X): | 800mm |
| Cross Travel (Y): | 550mm | Vertical Travel (Z): | 550mm |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, Italy, Brazil, Peru, India, Romania, South Africa, Malaysia, Australia |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 48/48/48 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Summary
X/Y/Z:Linear Guideway
This is a vertical machining center. lt has a high-edge configuration and can work automatically. lt can provide high precision operation with Taiwan Precision Spindle, Taiwan Carousel ATC, Cross-type,Table,Full closed protection.Product Description

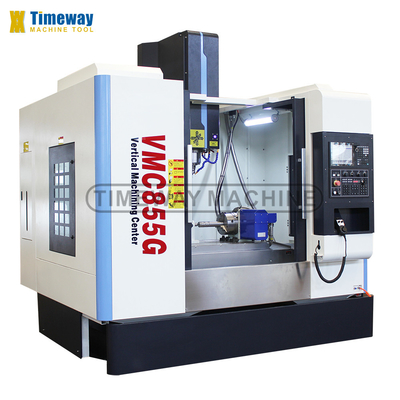

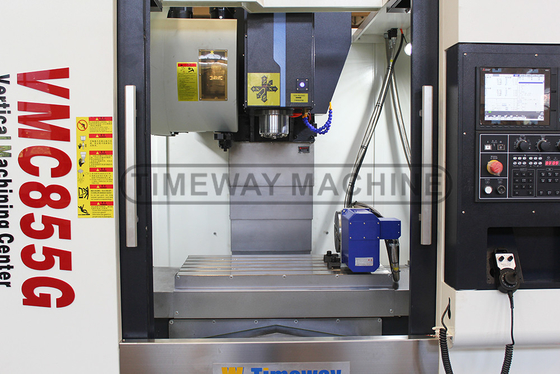

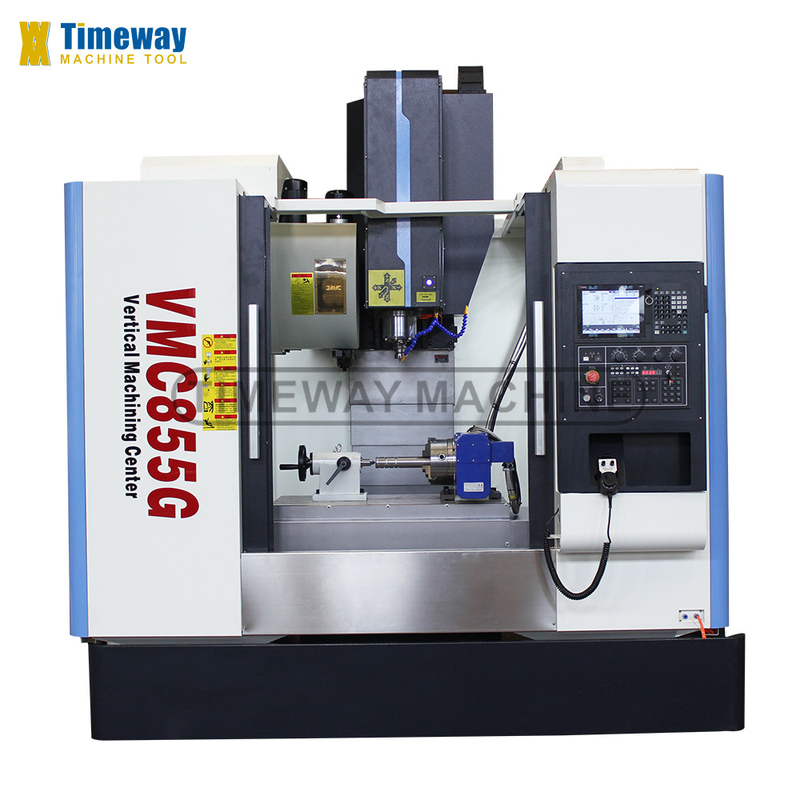

Vertical Machining Center VMC855G
Specification
Specification | Unit | VMC855G |
Worktable size (LxW) | mm | 1000×550 |
T-slot (No./width/pitch) | mm | 5-18-100 |
Loading capacity | kg | 500 |
Longitudinal travel (X) | mm | 800 |
Cross travel (Y) | mm | 550 |
Vertical travel (Z) | mm | 550 |
Distance from spindle nose to table | mm | 110-660 |
Distance from spindle center to column | mm | 600 |
Spindle taper | - | BT-40 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 48/48/48 |
X/Y/Z-axis servo motor (FANUC) | - | β12/β12/β22 |
X/Y/Z-axis positioning accuracy | mm | ±0.003/300 |
X/Y/Z-axis repositioning accuracy | mm | ±0.003/300 |
Main motor power | kw | 7.5/11 |
Air pressure source | kg/cm2 | 6-8 |
Power capacity | Kva | 20 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | Linear |
Machine weight | kg | 5200 |
Machine dimensions (LxWxH) | mm | 2800×2350×2800 |
