T-type CNC Horizontal Machining Center HMC 800D Precise and with FANUC Control System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Horizontal |
| Dimension(L*W*H): | 6200*4800*3800 | Weight (T): | 15 T |
| Table Size (mm): | 800*800 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1300 |
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 1000 |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1500 Kg | Min. Time Of Tool Change(s): | 5 |
| Tool Magazine Capacity: | 40 | Key Selling Points: | High Productivity |
| Warranty: | 1 Year | Voltage: | 380V/50H |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Horizontal Machining Center | Machine Type: | HMC CNC Milling Machine |
| Application: | Metal Machining | Keywords: | Horizontal Machine Center HMC |
| Product Type: | Machining Center Cnc Mill Machine | CNC Or Not: | CNC Systemn |
| Processing: | Metal Cutting Cnc Milling Machine | Longitudinal Travel (X): | 1300mm |
| Cross Travel (Y): | 1000mm | Vertical Travel (Z): | 1000mm |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, Italy, Brazil, Peru, India, Romania, South Africa, Malaysia, Australia |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 24/24/24 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

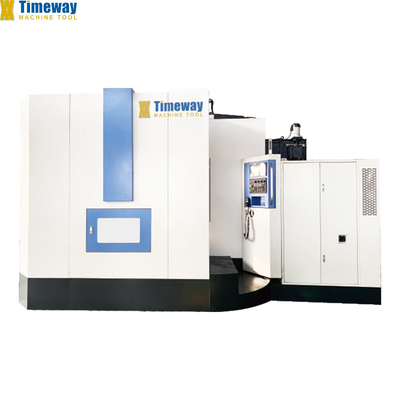

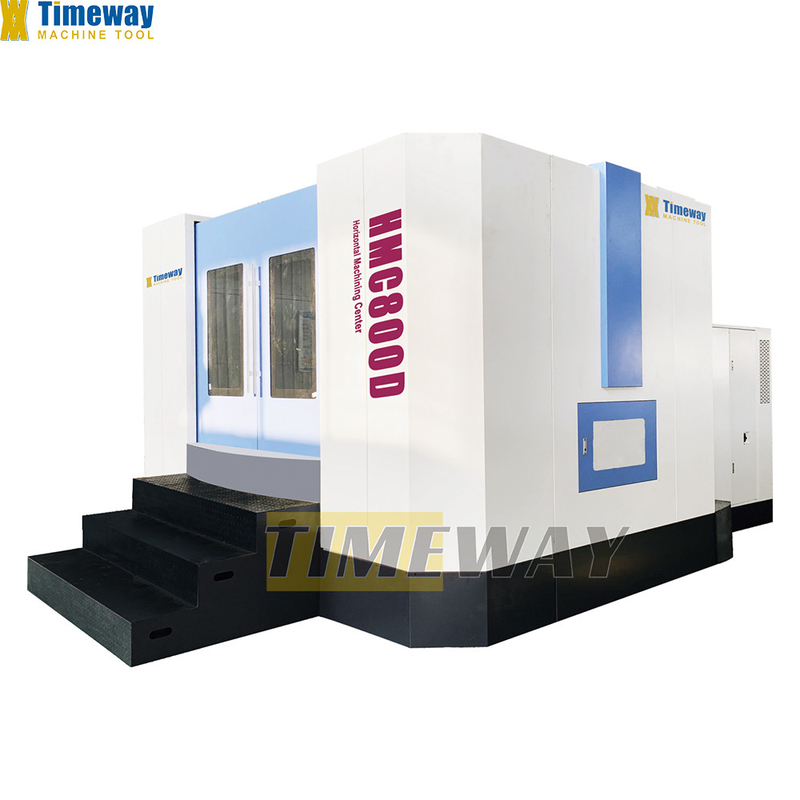

Horizontal Machining Center HMC800D
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;

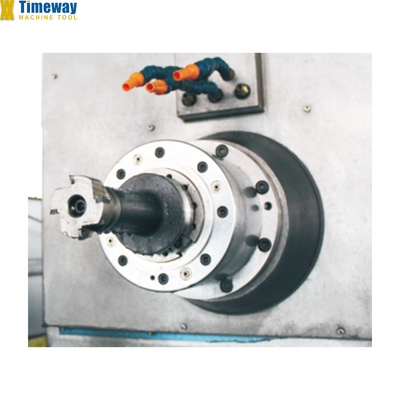

4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.

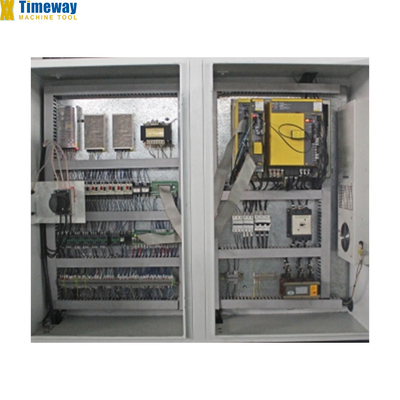

17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
Specification
Specification | Unit | HMC800D |

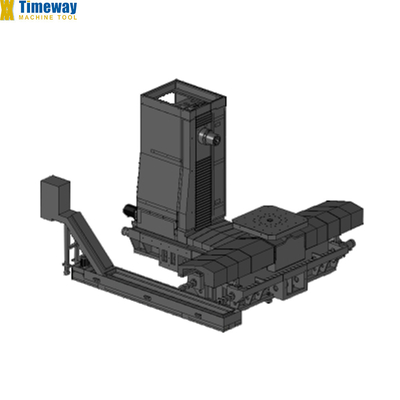

Machine structure | - | Inverted T-type |
X-axis travel | mm | 1300 |
Y-axis travel | mm | 1000 |
Z-axis travel | mm | 1000 |
B-axis servo motor torque (FANUC) | - | Bis22 |
Table size | mm | 800x800 |
Table indexing | ° | 1°×360 |
T-slots (No./width/pitch) | - | 6-22-125 |
Table rotation speed | rpm | 11.1 |
Loading capacity | kg | 1500 |
Locking force (35kg / cm2) | kg/m | 5000 |
Distance spindle center to table | mm | 120-1120 |
Distance spindle nose to table center | mm | 200-1200 |
Spindle taper | - | BT-50 |
Spindle speed | rpm | 6000 |
Main motor power | kw | 15/18.5 |
X/Y/Z-axis servo motor (FANUC) | - | Bis40/Bis40/Bis40 |
X/Y/Z-axis cutting feed speed | mm/min | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/24 |
X/Y/Z-axis rails type | - | Linear |
X/Y/Z-axis positioning accuracy | mm | ±0.01 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.006 |
B-axis positioning accuracy | " | ±10" |

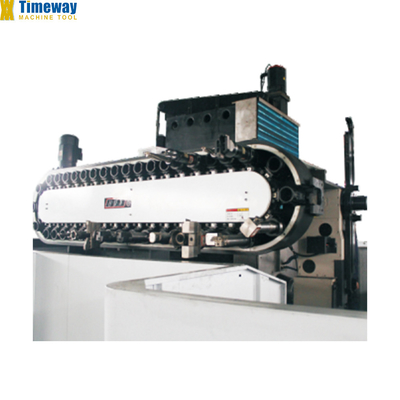

ATC capacity (style) | tools | 40 (Chain) |
Tool change time (tool to tool) | sec | 5 |
Max. tool weight | kg | 20 |
Max. tool diameter | mm | Φ125/Φ230 |
Max. tool length | mm | 300 |
Power supply | Kva | 50 |
Air pressure require | kg/cm2 | 8 |
Machine weight | kg | 15000 |
Machine dimension (LxWxH) | mm | 6200×4800×3800 |
Client feedback
