VMC650L Vertical Machining Center 700mm Table Travel ±0.006mm Repeatability Operation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-40 (120) |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 2400*1900*2400 | Weight (T): | 3.5 T |

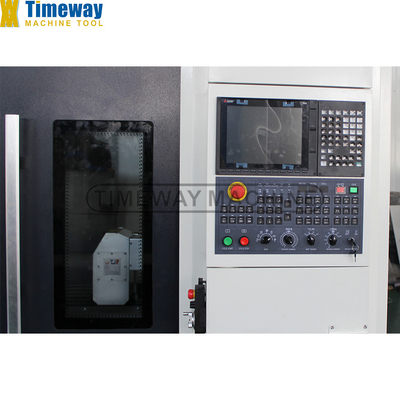

| Table Size (mm): | 1000*420 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 700 |
| Table Travel (Y) (mm): | 450 | Table Travel (Z) (mm): | 450 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 400 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 12 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Voltage: | 380V/50H |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Vertical Machining Center | Machine Type: | VMC CNC Milling Machine |
| Application: | Metal Machining | Keywords: | Vertical Machine Center VMC |
| Product Type: | Machining Center Cnc Mill Machine | CNC Or Not: | CNC Systemn |
| Processing: | Metal Cutting Cnc Milling Machine | Longitudinal Travel (X): | 700mm |
| Cross Travel (Y): | 450mm | Vertical Travel (Z): | 450mm |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, Brazil, Peru, Indonesia, India, Thailand, South Korea, Romania, South Africa, Malaysia, Australia |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 48/48/15 |
Product Description
Summary

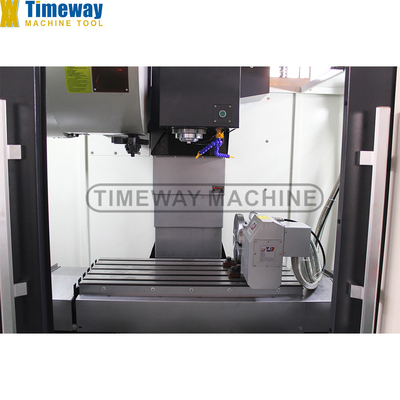

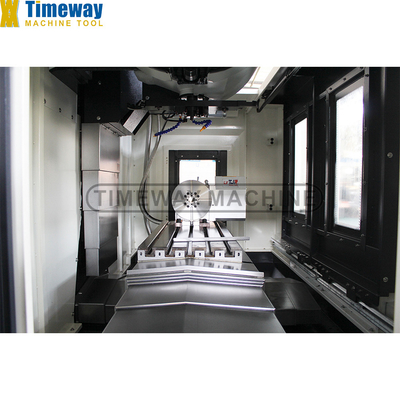

This is a vertical machining center.lt has a high-edge configuration and can work automatically.lt can provide high precision operation with Taiwan PrecisionSpindle,Taiwan Carousel ATC,Cross-type,Table,Full closed protection.
Product Description

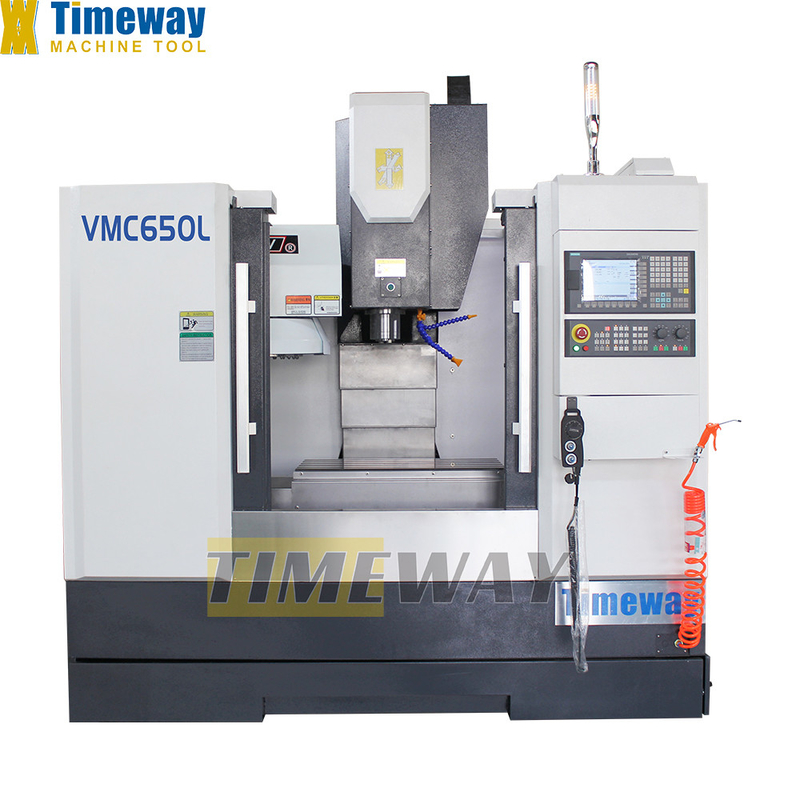

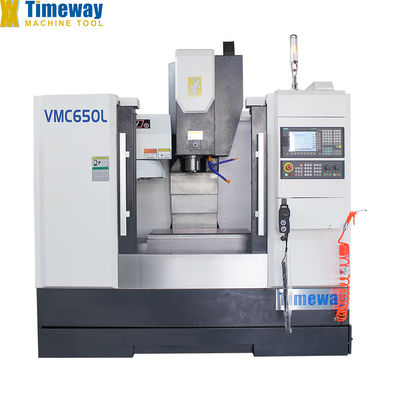

Vertical Machining Center VMC650L
Specification
Specification | Unit | VMC650L |
Worktable size (LxW) | mm | 1000×420 |
T-slot (No./width/pitch) | mm | 5-18-80 |
Loading capacity | kg | 400 |
Longitudinal travel (X) | mm | 700 |
Cross travel (Y) | mm | 450 |
Vertical travel (Z) | mm | 450 |
Distance from spindle nose to table | mm | 130-630 |
Distance from spindle center to column | mm | 495 |
Spindle taper | - | BT-40 (120) |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 48/48/15 |
X/Y/Z-axis servo motor (FANUC) | - | β12/β12/β22 |
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repositioning accuracy | mm | ±0.006 |
Main motor power | kw | 7.5/11 |
Air pressure source | kg/cm2 | 6-8 |
Power capacity | Kva | 18 |
Tool magazine capacity | T | 12 (Crousel) |
Guideway type | - | X/Y: Linear; Z: Sliding |
Machine weight | kg | 3500 |
Machine dimensions (LxWxH) | mm | 2400×1900×2400 |
