4285*3120*3280 CrossType HMC630S CNC Horizontal Machining Center for CNC Milling Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Horizontal |
| Dimension(L*W*H): | 4285*3120*3280 | Weight (T): | 8 T |
| Table Size (mm): | 630x630 | CNC Control System: | GSK, FANUC, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1000 |
| Table Travel (Y) (mm): | 750 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1200 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Horizontal Machining Center |
| Table Size: | 630x630mm | Table Rotation Speed: | 11.1rpm |
| Loading Capacity: | 1200kg | Spindle Speed: | 6000rpm |
| Main Motor Power: | 15/18.5kw | ATC Capacity (style): | 24 (Disc) Tools |
| Machine Weight: | 8000kg | Power Supply: | 40Kva |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Food & Beverage Shops | Showroom Location: | Egypt, Canada, United States, Germany, Indonesia, India, Mexico, Spain, Thailand, South Korea, South Africa, Japan, Australia |
| Core Components: | Motor | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630S, HMC800S;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;

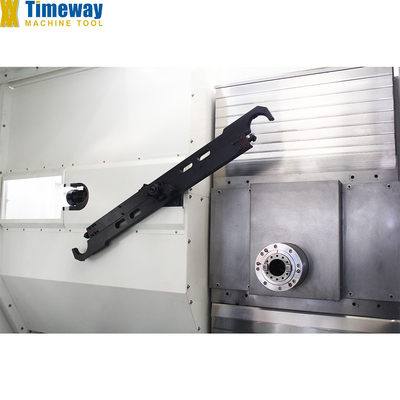

6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;

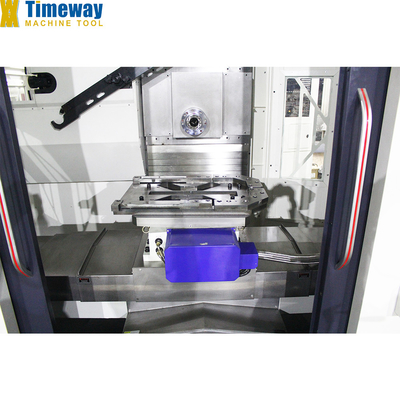

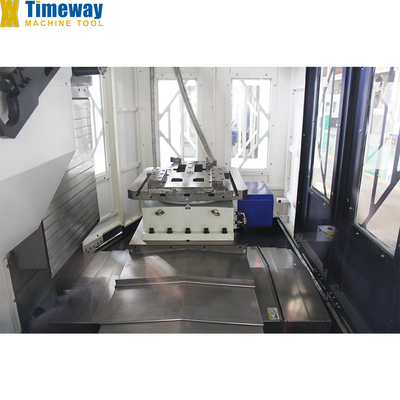

10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.

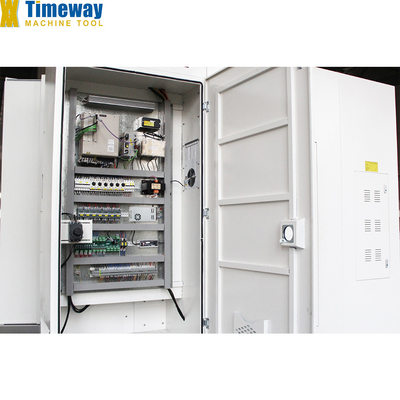

17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630S, HMC800S;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
Specification
SPECIFICATION | UNIT | HMC630S |
Machine structure | - | Cross-type |
X-axis travel | mm | 1000 |
Y-axis travel | mm | 750 |
Z-axis travel | mm | 600 |
B-axis servo motor torque (FANUC) | - | 15 |
Table size | mm | 630×630 |
Table indexing | ° | 1°×360 |
T-slots (No./width/pitch) | - | 5-18-122 |
Table rotation speed | rpm | 11.1 |
Loading capacity | kg | 1200 |
Locking force (35kg / cm2) | kg/m | 4000 |
Distance spindle center to table | mm | 50-800 |
Distance spindle nose to table center | mm | 50-650 |
Spindle taper | - | BT-50 |
Spindle speed | rpm | 6000 |
Main motor power | kw | 15/18.5 |
X/Y/Z-axis servo motor (FANUC) | - | Bis22/Bis22/Bis22 |
X/Y/Z-axis cutting feed speed | mm/min | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/15/24 |
X/Y/Z-axis rails type | - | X/Z: Linear/Y: sliding |
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.005 |
B-axis positioning accuracy | " | ±10" |
ATC capacity (style) | tools | 24 (Disc) |
Tool change time (tool to tool) | sec | 5 |
Max. tool weight | kg | 18 |
Max. tool diameter | mm | Φ112/Φ200 |
Max. tool length | mm | 300 |
Power supply | Kva | 40 |
Air pressure require | kg/cm2 | 8 |
Machine weight | kg | 8000 |
Overall dimension (LxWxH) | mm | 4285×3120×3280 |
